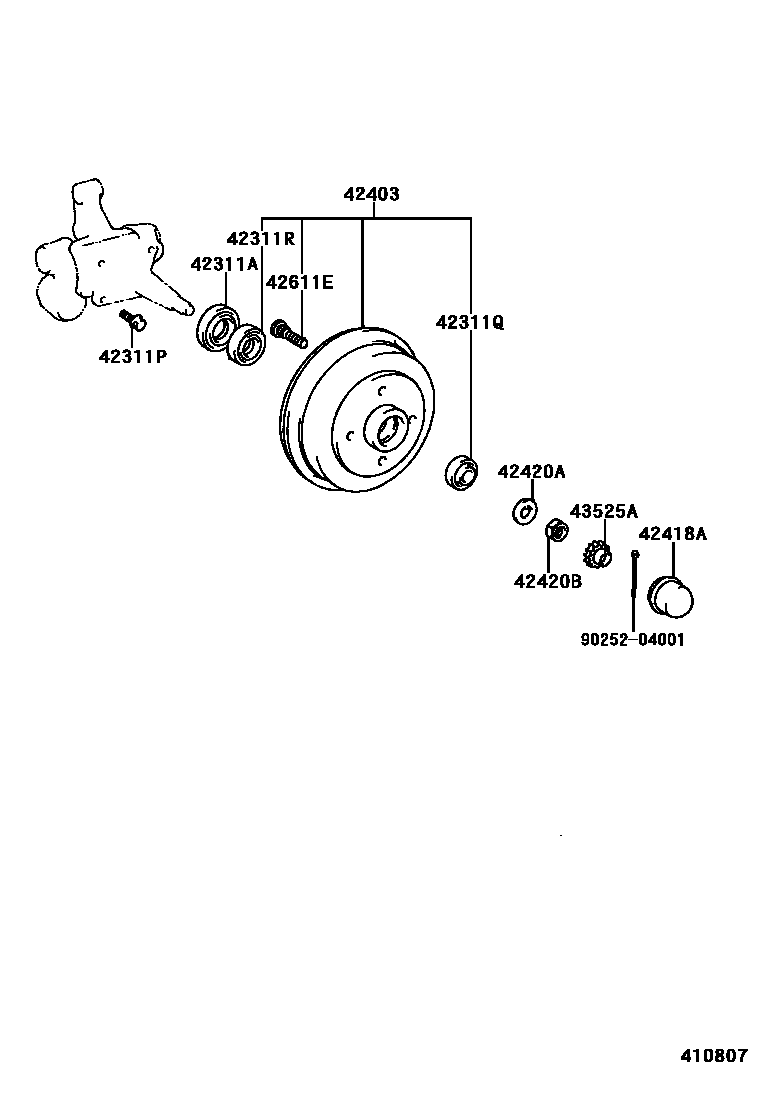

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-36001×2iEP7#,NP70198410-198912

42311PBOLT(FOR REAR AXLE SHAFT)

main90119-10365×8iEP7#,NP70198410-198912

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90368-17017×2iEP7#,NP70198410-198912

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-25003×2iEP7#,NP70198410-198912

42403DRUM SUB-ASSY, REAR BRAKE

main42403-10010×2iEP7#,NP70198410-198912

42418ACAP, REAR HUB GREASE

main43514-10030×2iEP7#,NP70198410-198912

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010×2iEP7#,NP70198410-198912

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137×2iEP7#,NP70198410-198912

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iEP7#,NP70198410-198912

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011×2iEP7#,NP70198410-198912

9025204001

main90252-04001

11 parts on this diagram · 1 diagram in section
