FUEL PUMP & PIPE

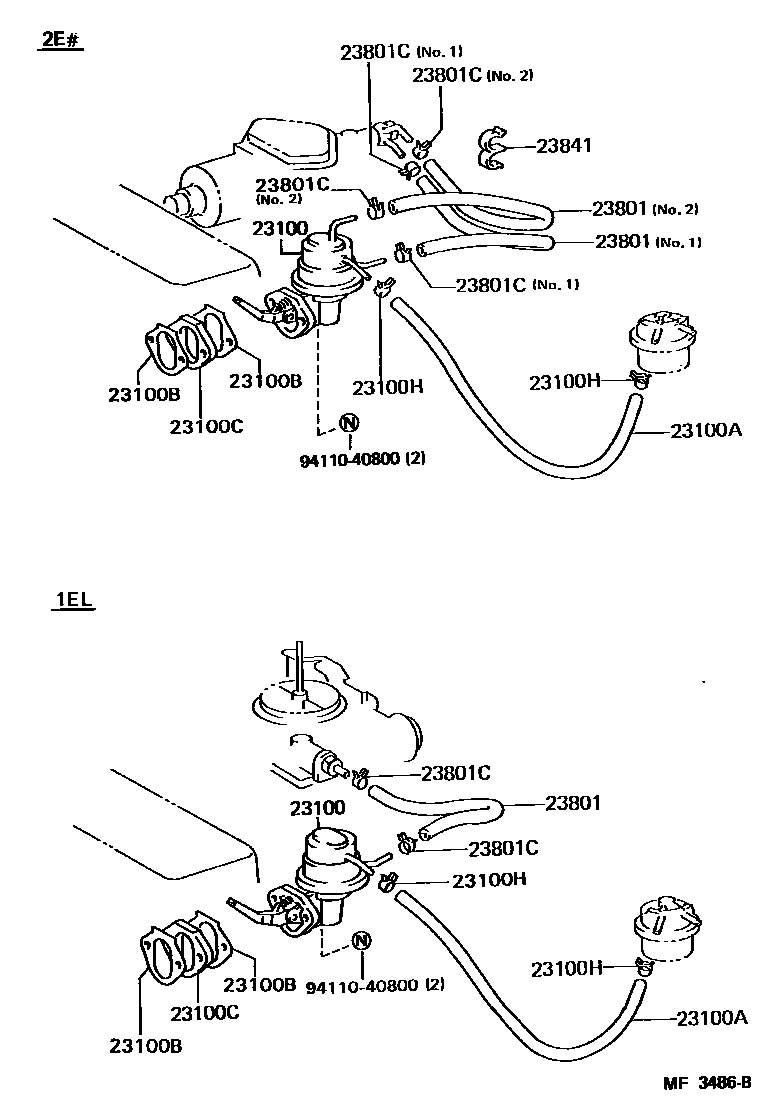

Parts diagram
23100PUMP ASSY, FUEL
main23100-10020i198410-198807
main23100-10021i198807-198912
main23100-11040i198707-198807
main23100-11041i198807-198912
main23100-11070i198707-198805
main23100-11071i198805-198912
23100AHOSE, FUEL
main90445-12218i198710-198912
main95332-06040i198410-198606
*H,L=360
main95333-06030i198707-198710
main95333-06036i198606-198702
main95333-06040i198707-198912
23100BGASKET, FUEL PUMP
main90923-05017×2i198410-198912
23100CINSULATOR, FUEL PUMP
main23915-10020i198410-198912
23100HCLIP(FOR FUEL HOSE)
main96132-30600×2i198410-198912
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
main95332-04030i198410-198606
L=300(*H,L=240),NO.2
main95332-06010i198410-198701
L=100
main95332-06030i198410-198701
L=300(*H,L=220),NO.1
main95333-04024i198606-198702
L=300(*H,L=240),NO.2
main95333-04030i198707-198912
L=300(*H,L=240),NO.2
main95333-06010i198701-198912
L=100
main95333-06022i198701-198702
L=300(*H,L=220),NO.1
main95333-06030i198702-198912
L=300(*H,L=220),NO.1
23801CCLIP(FOR CARBURETOR FUEL HOSE)
main90467-11009×2i198707-198802
NO.1
main90467-11049×2i198802-198912
NO.1
main96132-30400×2i198410-198707
NO.2
main96132-30600×2i198410-198707
NO.1
23841CLAMP, FUEL PIPE(HOSE), NO.1
main90464-00231i198707-198912
9411040800
main94110-40800
