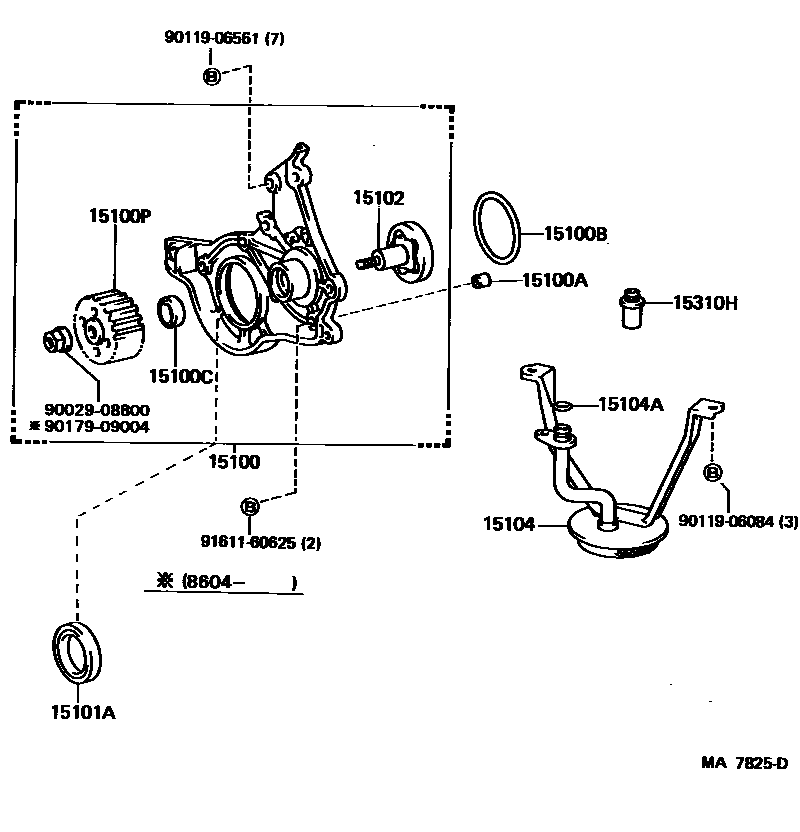

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-10010i1EL,2EL#..EP7#198410-198411

main15100-10020i1EL,2EL#..EP7#198411-198604

main15100-11050i1EL,2EL#..EP7#198604-198912

main15100-55010i1N..NP70198612-198912

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i1EL,2EL#..EP7#198410-198912

main90253-11021×2i1N..NP70198612-198912

15100BRING, O(FOR OIL PUMP)

main90301-55005i1EL,2EL#..EP7#198907-198912

main96721-24056i1EL,2EL#..EP7#198410-198907

15100CSEAL(FOR OIL PUMP)

main90029-21005i1EL,2EL#..EP7#198410-198604

main90029-21007i1EL,2EL#..EP7#198604-198912

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-10010i1EL,2EL#..EP7#198410-198604

main13524-11010i1EL,2EL#..EP7#198604-198912

15101ASEAL(FOR CRANKSHAFT)

main90311-35017i1EL,2EL#..EP7#198410-198912

15102ROTOR SET, OIL PUMP

main15102-10012i1EL,2EL#..EP7#198410-198604

main15102-11040i1EL,2EL#..EP7#198604-198912

15104STRAINER SUB-ASSY, OIL

main15104-10010i1EL,2EL#..EP7#198410-198411

main15104-10020i1EL,2EL#..EP7#198411-198912

main15104-55010i1N..NP70198612-198912

15104ARING, O(FOR OIL STRAINER)

main96721-24015i1EL,2EL#..EP7#198410-198912

15310HREGULATOR ASSY, OIL

main15310-10010i1EL,2EL#..EP7#198410-198912

main15310-55010i1N..NP70198612-198912

9002908800

main90029-08800

9011906084

main90119-06084

9011906561

main90119-06561

9017909004

main90179-09004

9161160625

main91611-60625

15 parts on this diagram · 2 diagrams in section
