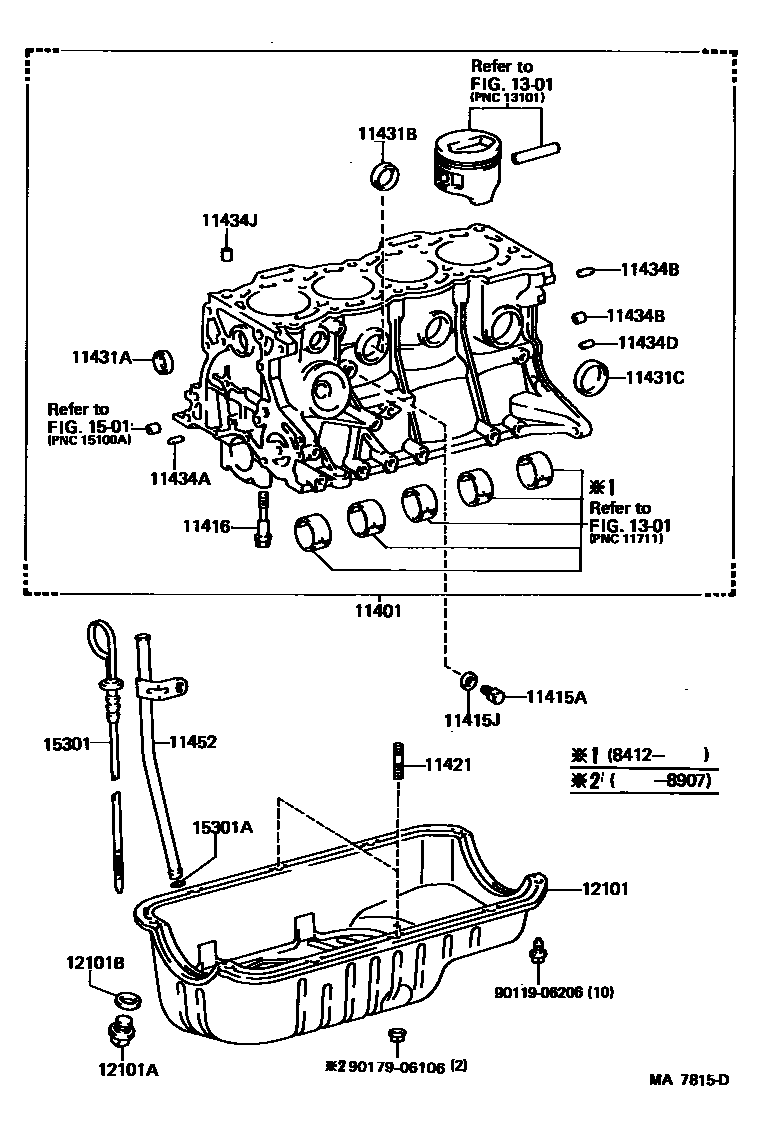

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19285i1EL..EP70198410-198412

main11401-19286i1EL..EP70198412-198507

main11401-19287i1EL..EP70198507-198508

main11401-19288i1EL..EP70198508-198612

main11401-19295i2EL#..EP71198410-198412

main11401-19296i2EL#..EP71198412-198507

main11401-19297i2EL#..EP71198507-198508

main11401-19298i2EL#..EP71198508-198912

main11401-19395i1EL..EP70198612-198912

main11401-59335i1N..NP70198612-198912

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i1N..NP70198612-198912

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i1EL,2EL#..EP7#198410-198912

main90910-09087i1N..NP70198612-198912

11415JGASKET(FOR DRAIN COCK)

main90430-13002i1EL,2EL#..EP7#198410-198912

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10153×10i1N..NP70198612-198912

main90910-02019×10i1EL,2EL#..EP7#198410-198912

11421BOLT, STUD(FOR OIL PAN)

main90116-06014×2i1EL,2EL#..EP7#198410-198907

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42000×2i1N..NP70198612-198912

main96411-42500×2i1EL,2EL#..EP7#198410-198912

OD=25

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×6i1EL,2EL#..EP7#; 1N..NP70198410-198912

OD=30

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500×5i1EL,2EL#..EP7#; 1N..NP70198410-198912

OD=35

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i1N..NP70198612-198912

L=14,OD=6

main90250-06068i1EL,2EL#..EP7#198410-198912

L=11,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i1N..NP70198712-198912

L=20,OD=10

main90250-10052i1N..NP70198612-198712

L=20,OD=10,L=20,OD=10

main90253-15001i1EL,2EL#..EP7#198410-198712

L=14,OD=15,L=14,OD=15

main90253-15003i1EL,2EL#..EP7#198712-198912

L=17,OD=15,L=14,OD=15

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i1EL,2EL#..EP7#198410-198912

L=11,OD=6

main90253-10005×2i1N..NP70198612-198912

L=10,OD=10

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i1EL,2EL#..EP7#198410-198912

main90253-14001×2i1N..NP70198612-198912

11452GUIDE, OIL LEVEL GAGE

main11452-10010i1EL,2EL#..EP7#198410-198912

main11452-55010i1N..NP70198612-198912

12101PAN SUB-ASSY, OIL

main12101-10010i1EL,2EL#..EP7#198410-198912

main12101-55010i1N..NP70198612-198912

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1EL,2EL#..EP7#; 1N..NP70198410-198912

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i1EL,2EL#..EP7#; 1N..NP70198410-198803

main90430-12019i1EL,2EL#..EP7#; 1N..NP70198803-198912

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-10020i1EL,2EL#..EP7#198410-198602

main15301-10021i1EL,2EL#..EP7#198602-198811

main15301-10022i1EL,2EL#..EP7#198811-198912

main15301-55010i1N..NP70198612-198912

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i1EL,2EL#..EP7#198410-198912

9011906206

main90119-06206

9017906106

main90179-06106

23 parts on this diagram · 2 diagrams in section
