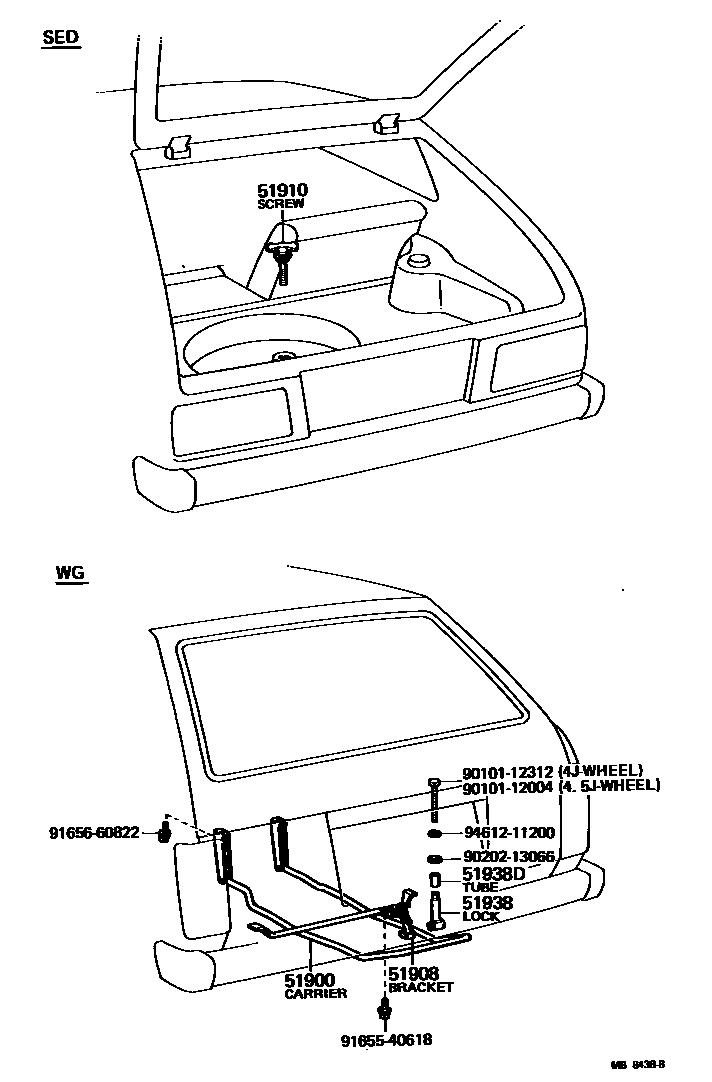

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-96440iKP6#..4D197810-198409

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-96440iKP60,62..LHD..4D..EUG197810-198409

WEST GERMANY SPEC

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10040iKP6#..SED197802-198409

main51910-14040iKP61..RHD..5F..GEN198208-198409

W/ALUMINUM WHEEL

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iKP6#..4D197810-198212

main51938-13020iKP6#..4D198212-198409

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17005iKP6#..4D..EUG197810-198409

main90440-17080iKP6#..4D..GEN197810-198409

9010112004

main90101-12004

9010112312

main90101-12312

9020213066

main90202-13066

9165540618

main91655-40618

9165660822

main91656-60822

9461211200

main94612-11200

11 parts on this diagram · 1 diagram in section
