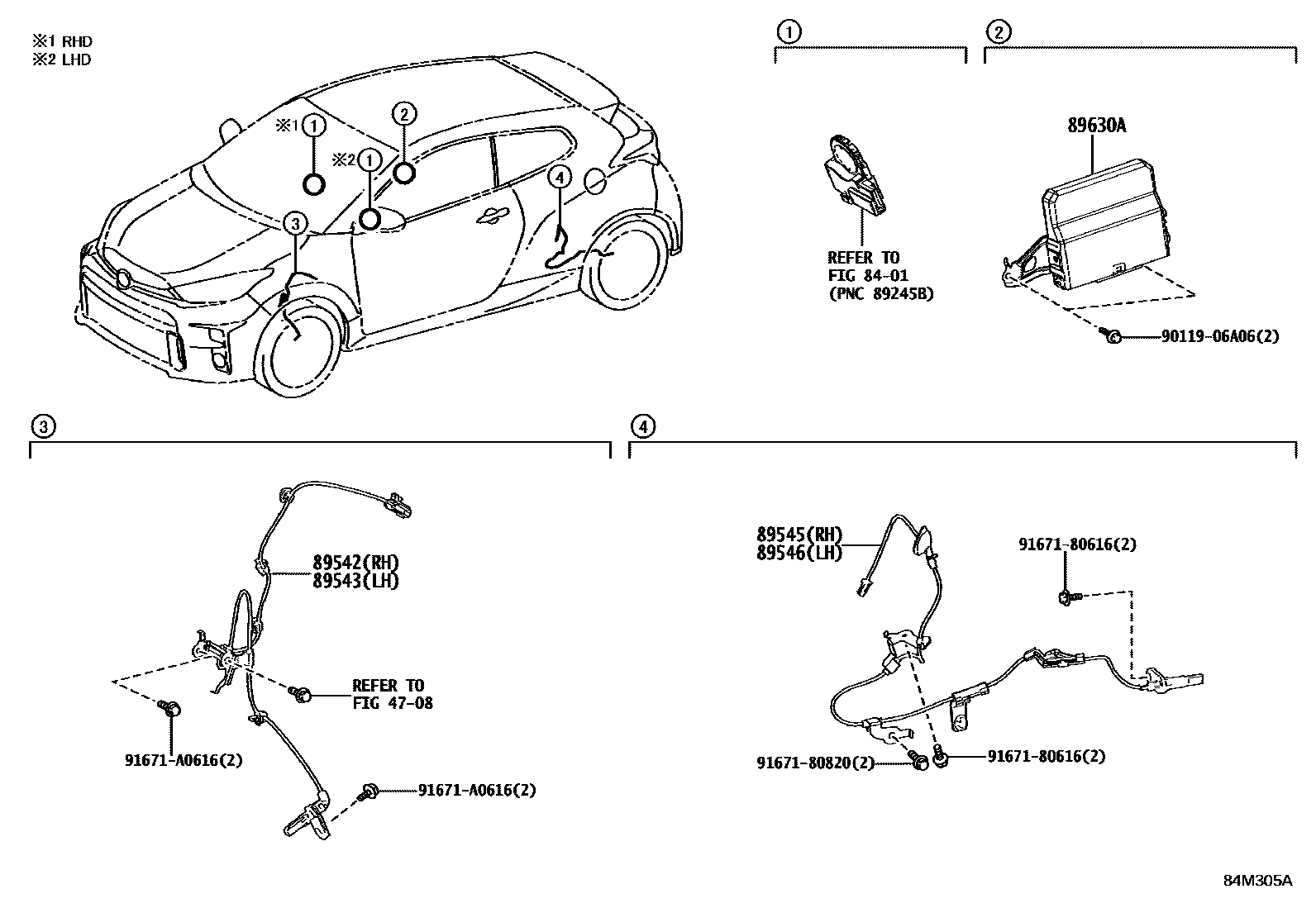

ABS & VSC

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89542SENSOR, SPEED, FRONT RH

main89542-52110iGXPA16202008-202404

89543SENSOR, SPEED, FRONT LH

main89543-52110iGXPA16202008-202404

89545SENSOR, SPEED, REAR RH

main89545-52080iGXPA16202008-202404

89546SENSOR, SPEED, REAR LH

main89546-52080iGXPA16202008-202404

89630ACOMPUTER ASSY, 4WD

main89630-52090iGXPA16202008-202404

main89630-52130iGXPA16202404

9011906A06

main90119-06A06

9167180616

main91671-80616

9167180820

main91671-80820

91671A0616

main91671-A0616

11 parts on this diagram · 1 diagram in section
