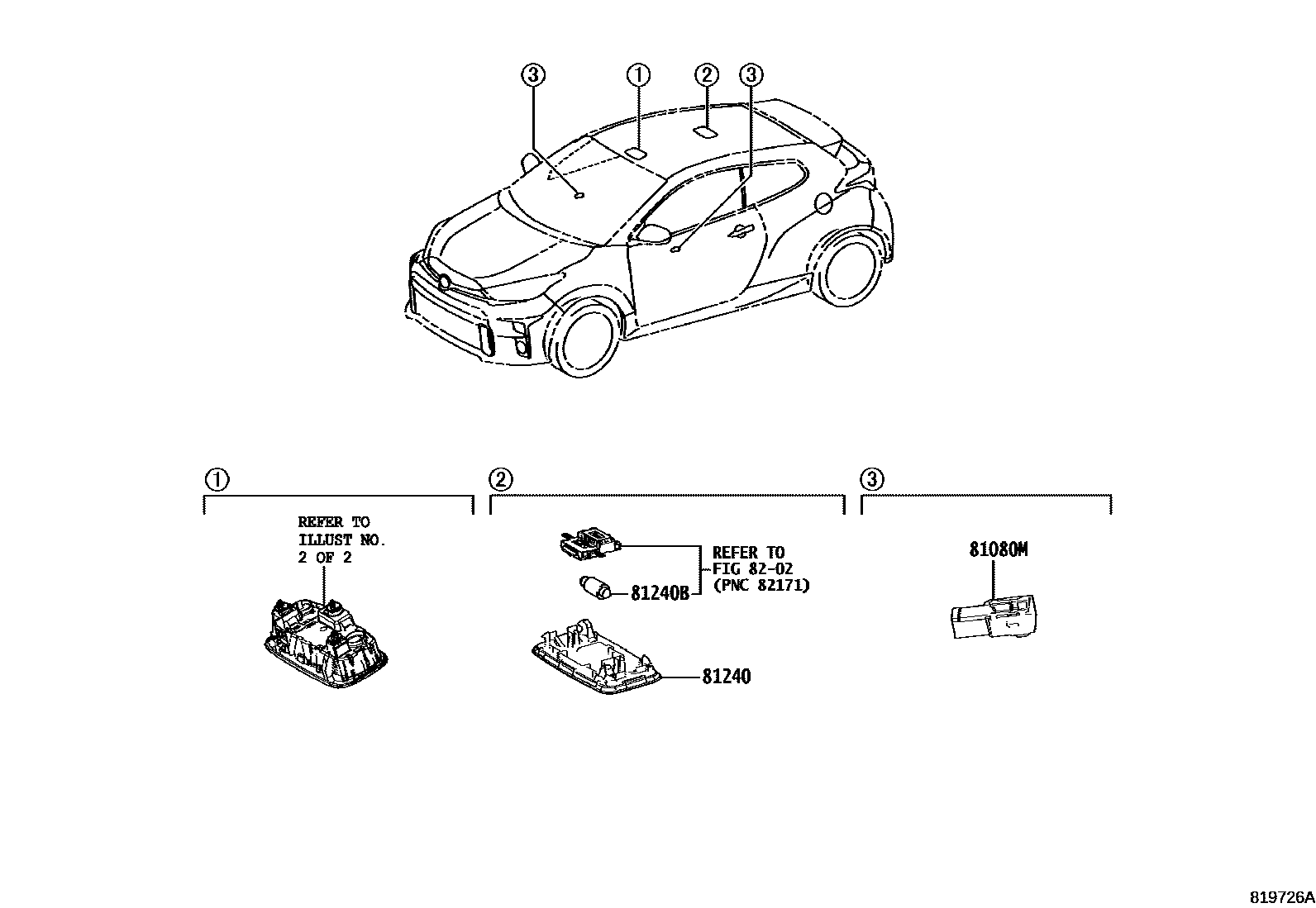

INTERIOR LAMP

0001 1 0002 1

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280×2iGXPA16..ARL202008-202112

HI GRADE PACKAGE

81240LAMP ASSY, ROOM, NO.1

main81240-42020-C0iGXPA16202008-202404

BLACK,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGXPA16202008-202404

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

4 parts on this diagram · 2 diagrams in section
