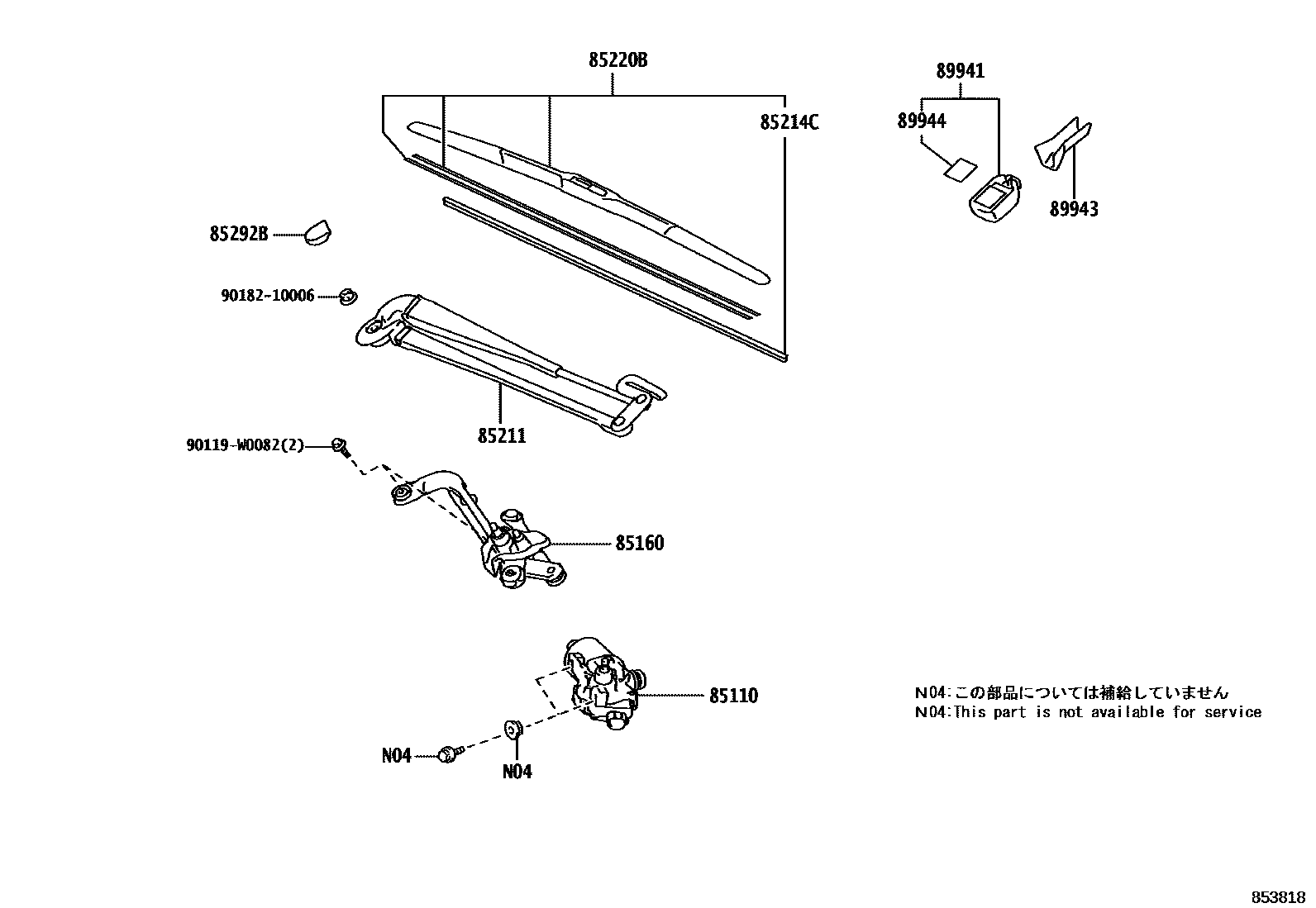

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D191iNSP131..LHD201711

main85110-0D201iNSP131..RHD201711

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D180iNSP131..LHD201711

main85150-0D190iNSP131..RHD201711

85211ARM, FRONT WIPER

main85211-0D240iNSP131..RHD201711

main85221-0D250iNSP131..LHD201711

85214CRUBBER, WIPER BLADE, CENTER

main85214-0D310iNSP131201711

85220BBLADE, FRONT WIPER

main85212-0D102iNSP131..RHD201711

main85222-0D122iNSP131..LHD201711

85292BCAP, FRONT WIPER ARM HEAD

main85292-52060iNSP131..RHD201711

main85292-52070iNSP131..LHD201711

89941SENSOR, RAIN

main89941-0D010iNSP131201711

89943COVER, RAIN SENSOR

main89943-02010iNSP131201711

89944TAPE, RAIN SENSOR

main89944-02010iNSP131201711

90119W0082

main90119-W0082

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
