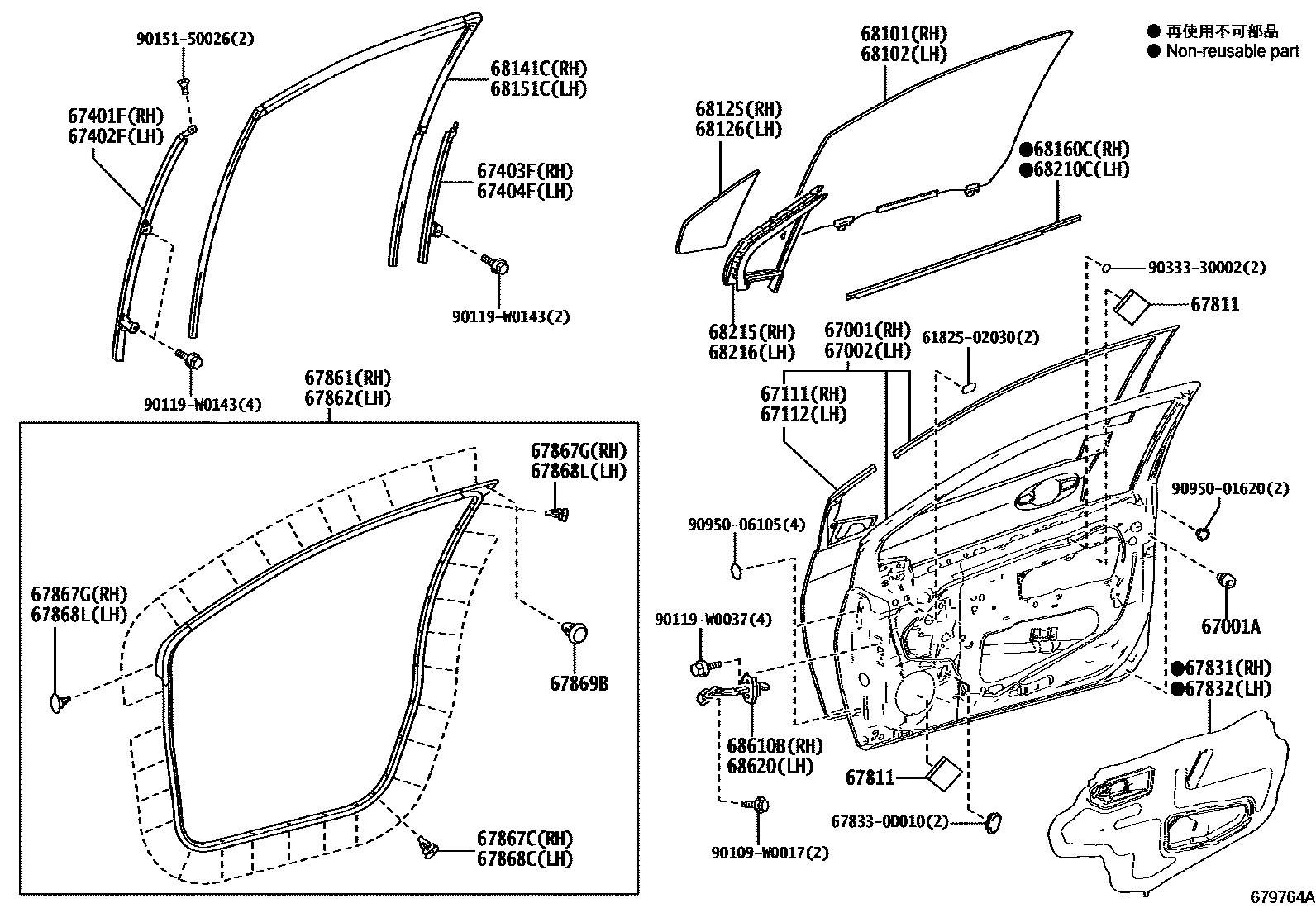

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D241iNSP131201711

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNSP131201711

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D241iNSP131201711

67111PANEL, FRONT DOOR, OUTER RH

main67111-52220iNSP131201711

67112PANEL, FRONT DOOR, OUTER LH

main67112-52210iNSP131201711

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52160iNSP131201711

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52150iNSP131201711

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52250iNSP131201711

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52220iNSP131201711

67811PAD, FRONT DOOR SILENCER

main67811-12180×4iNSP131201711

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D350iNSP131201711

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D250iNSP131201711

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D141iNSP131201711

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D131iNSP131201711

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×19iNSP131201711

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×13iNSP131201711

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×19iNSP131201711

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×13iNSP131201711

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-06084×2iNSP131201711

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D201iNSP131201711

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D201iNSP131201711

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0D021iNSP131201711

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0D021iNSP131201711

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D270iNSP131201711

68151CRUN, FRONT DOOR GLASS, LH

main68151-0D250iNSP131201711

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D160iNSP131201711

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D160iNSP131201711

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0D050iNSP131201711

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0D050iNSP131201711

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0D190iNSP131201711

68620CHECK ASSY, FRONT DOOR, LH

main68610-0D190iNSP131201711

6182502030PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-02030

678330D010COVER, REAR DOOR SERVICE HOLE

main67833-0D010

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9015150026

main90151-50026

9033330002

main90333-30002

9095001620

main90950-01620

9095006105

main90950-06105

40 parts on this diagram · 2 diagrams in section
