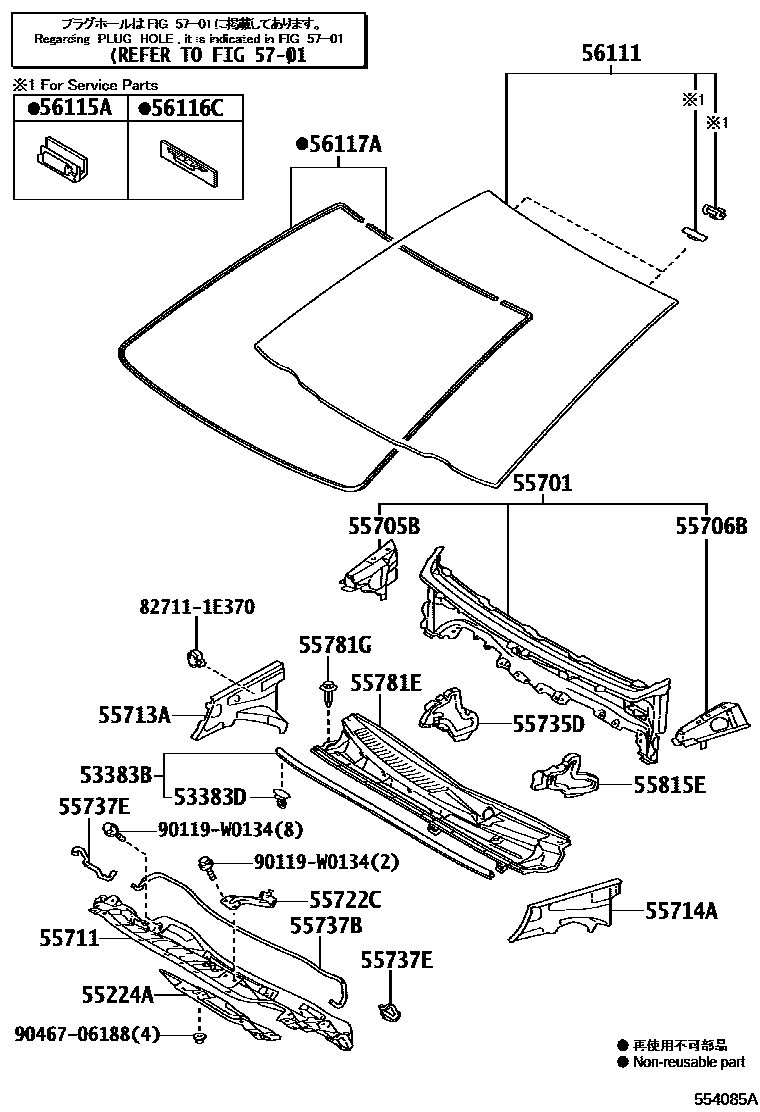

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D120iNSP131201711

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6iNSP131201711

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-0D011iNSP131201711

55701PANEL SUB-ASSY, COWL

main55700-0D180iNSP131..RHD201711

main55700-0D190iNSP131..LHD201711

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D090iNSP131201711

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D100iNSP131201711

55711PANEL, COWL TOP, OUTER

main55701-0D110iNSP131..RHD201711

main55701-0D150iNSP131..LHD201711

55713APANEL, COWL TOP SIDE, RH

main55713-0D090iNSP131201711

55714APANEL, COWL TOP SIDE, LH

main55714-0D090iNSP131201711

55722CBRACE, COWL TOP TO COWL, INNER

main55722-0D090iNSP131..RHD201711

main55722-0D100iNSP131..LHD201711

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-0D040iNSP131201711

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D010iNSP131201711

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-0D030×2iNSP131201711

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D360iNSP131..RHD201711

main55708-0D370iNSP131..LHD201711

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7×2iNSP131201711

BLACK

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-0D020iNSP131201711

56111GLASS, WINDSHIELD

main56101-0D251iNSP131201711

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNSP131201711

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNSP131201711

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNSP131201711

*D,L=3186 OR 606

5701HOLE PLUG

→ Go to FIG 57-01

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

90119W0134

main90119-W0134

9046706188

main90467-06188

24 parts on this diagram · 2 diagrams in section
