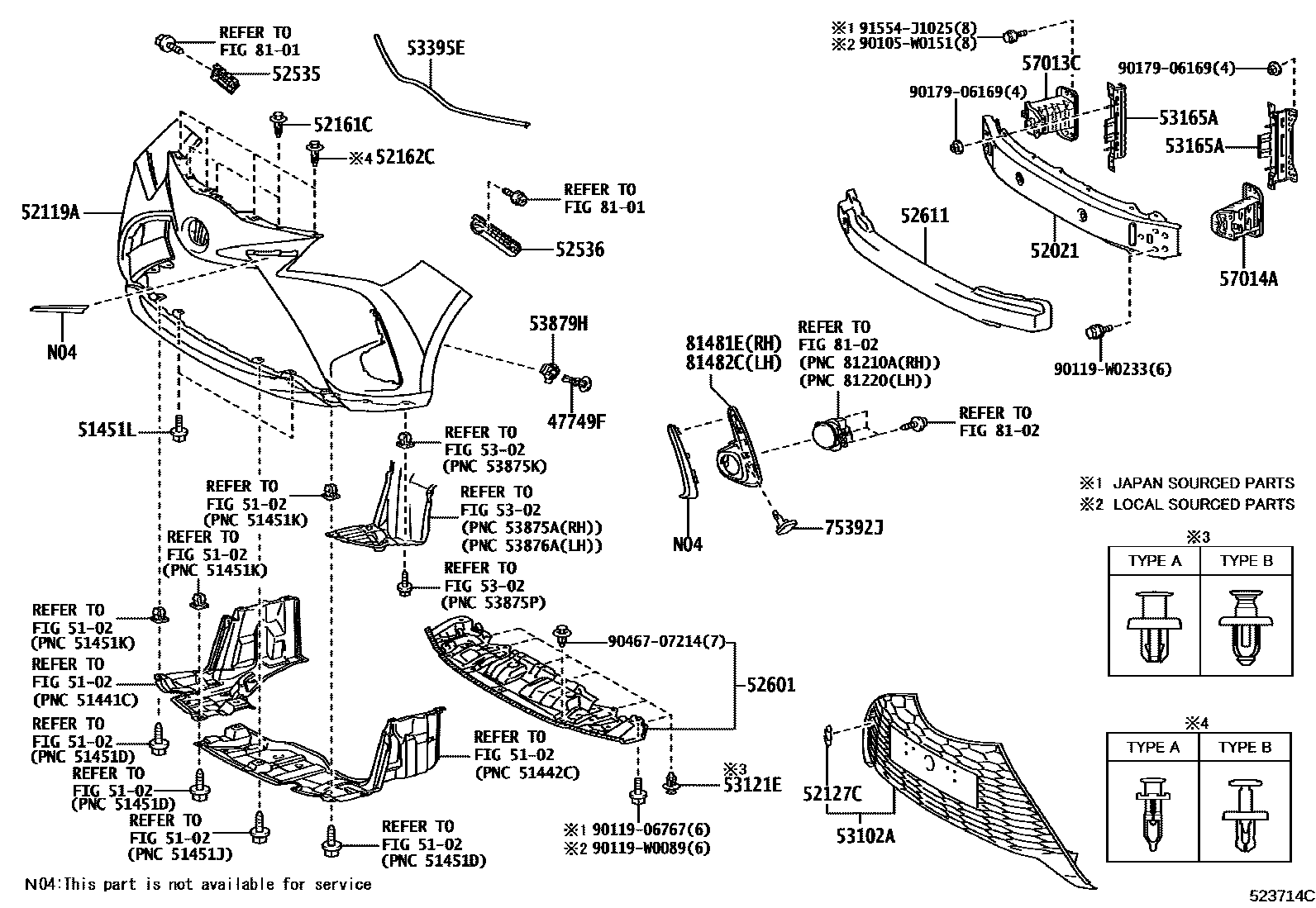

FRONT BUMPER & BUMPER STAY

47749FCLIP, PIN HOLD

main47749-50090×2iNSP131201711

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451LBOLT, NO.1

main90119-W0089×2iNSP131201711-201804

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D070iNSP131201711

52119ACOVER, FRONT BUMPER

main52119-0U931iNSP131201711

PAINT REQ

52127CCOVER, FRONT BUMPER HOLE

main52127-0DB20iNSP131201711

52161CPIECE, FRONT BUMPER

main52161-02030×3iNSP131201711

52162CPIECE, FRONT BUMPER

main52161-02030×4iNSP131201711

TYPE A:REFER ILLUST.

main90467-09242×4iNSP131201711

TYPE B:REFER ILLUST.

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D090iNSP131201711

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D090iNSP131201711

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0D040iNSP131201711

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D020iNSP131201711

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53102AGRILLE SUB-ASSY, RADIATOR, LWR

main53102-0D140iNSP131201711

53121ECLIP(FOR FRONT BUMPER), NO.1

main51454-48010×6iNSP131201711

TYPE B:REFER ILLUST.

main90467-W0014-C0×6iNSP131201711

BLACK,TYPE A:REFER ILLUST.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-0D060×2iNSP131201711

53395ESEAL, HOOD TO FRONT END PANEL

main53395-0D030iNSP131201711

53879HRETAINER, FRONT FENDER LINER

main53879-50020×2iNSP131201711

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D041iNSP131201711

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D030iNSP131201711

75392JRETAINER, OUTSIDE MOULDING

main75392-35200×2iNSP131201711

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main81481-0D360iNSP131201711

81482CCOVER, FOG LAMP, LH

main81482-0D340iNSP131201711

90105W0151

main90105-W0151

9011906767

main90119-06767

90119W0089

main90119-W0089

90119W0233

main90119-W0233

9017906169

main90179-06169

9046707214

main90467-07214

91554J1025

main91554-J1025

32 parts on this diagram · 1 diagram in section
