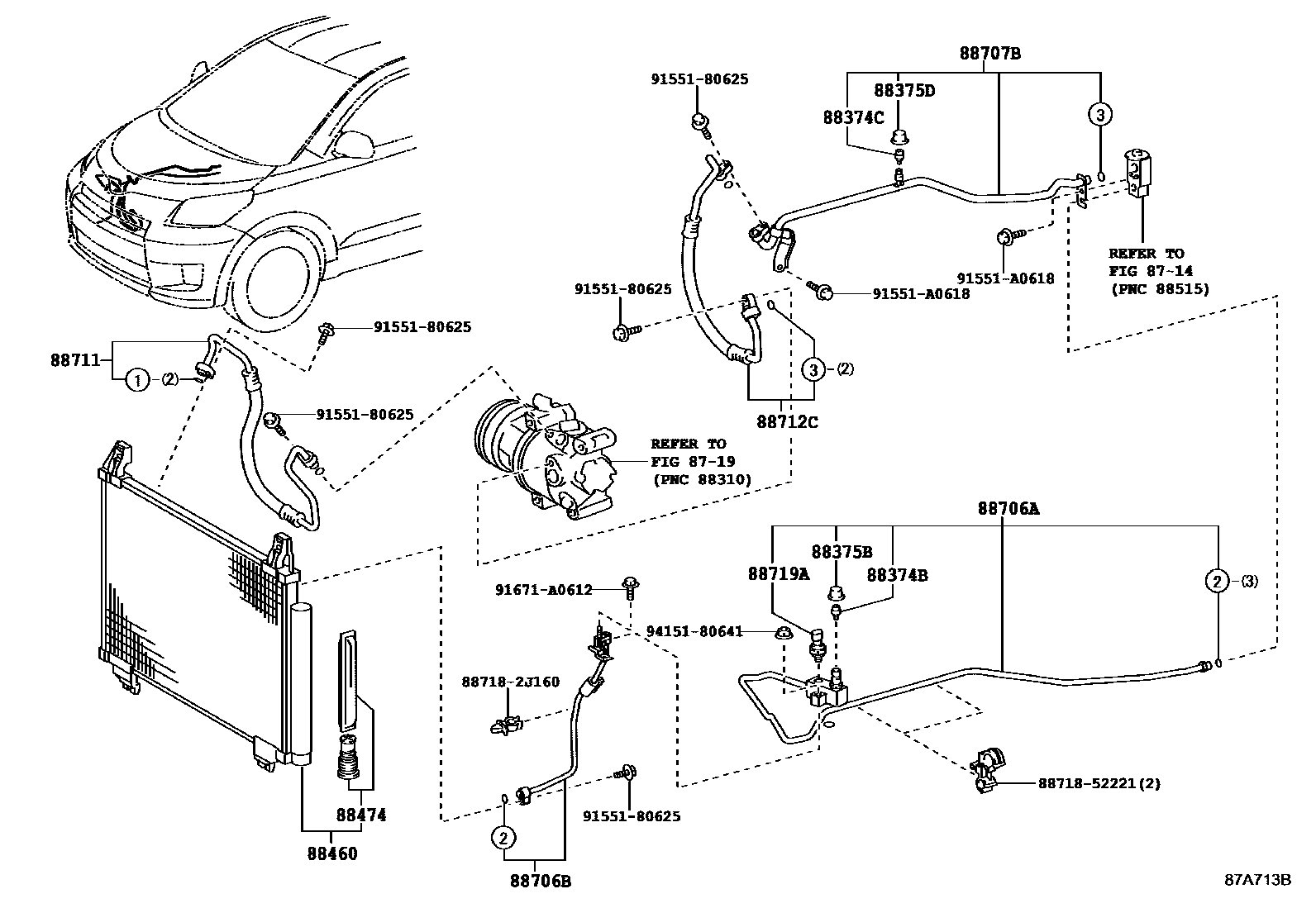

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION 0003 1 0004 1DEALER OPTION 0005 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iNLP11#,NSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

main88374-30010iNLP11#,NSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

88374CVALVE, SERVICE, NO.2

main88374-30010iNLP11#,NSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88374-30010iNLP11#,NSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNLP11#,NSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88375-30280iNLP11#,NSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNLP11#,NSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88375-30290iNLP11#,NSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

88460CONDENSER ASSY, COOLER

main88460-52130iNSP110..R200901

FRONT AIR CONDITIONER-DEALER OPTION

main88460-52130iNSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88460-52150iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88460-52150iNLP11#200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

88474DRYER, COOLER

main88474-12030iNLP11#,NSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88474-12030iNLP11#,NSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52441iNSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

main88706-52441iNSP110..R200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88706-52510iNLP11#..R;NLP11#..LHD..N200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

main88706-52510iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

88706BTUBE SUB-ASSY, LIQUID, B

main88706-52520iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88706-52520iNLP11#200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52190iNSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

main88707-52190iNSP110200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88707-52210iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88707-52210iNLP11#200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52330iNSP110..R200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

main88711-52330iNSP110200901

FRONT AIR CONDITIONER-DEALER OPTION

main88711-52340iNLP11#200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

main88711-52340iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

88712CHOSE, SUCTION

main88712-52350iNLP11#..R;NLP11#..LHD..N200901-201405

FRONT AIR CONDITIONER-DEALER OPTION

main88712-52350iNLP11#200901-201405

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNLP11#..LHD..N;NLP11#,NSP110..R200901

FRONT AIR CONDITIONER-DEALER OPTION

main88719-33020iNLP11#..LHD..N;NLP11#,NSP110..R200901

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

887182J160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J160

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0612

main91671-A0612

9415180641

main94151-80641

20 parts on this diagram · 5 diagrams in section
