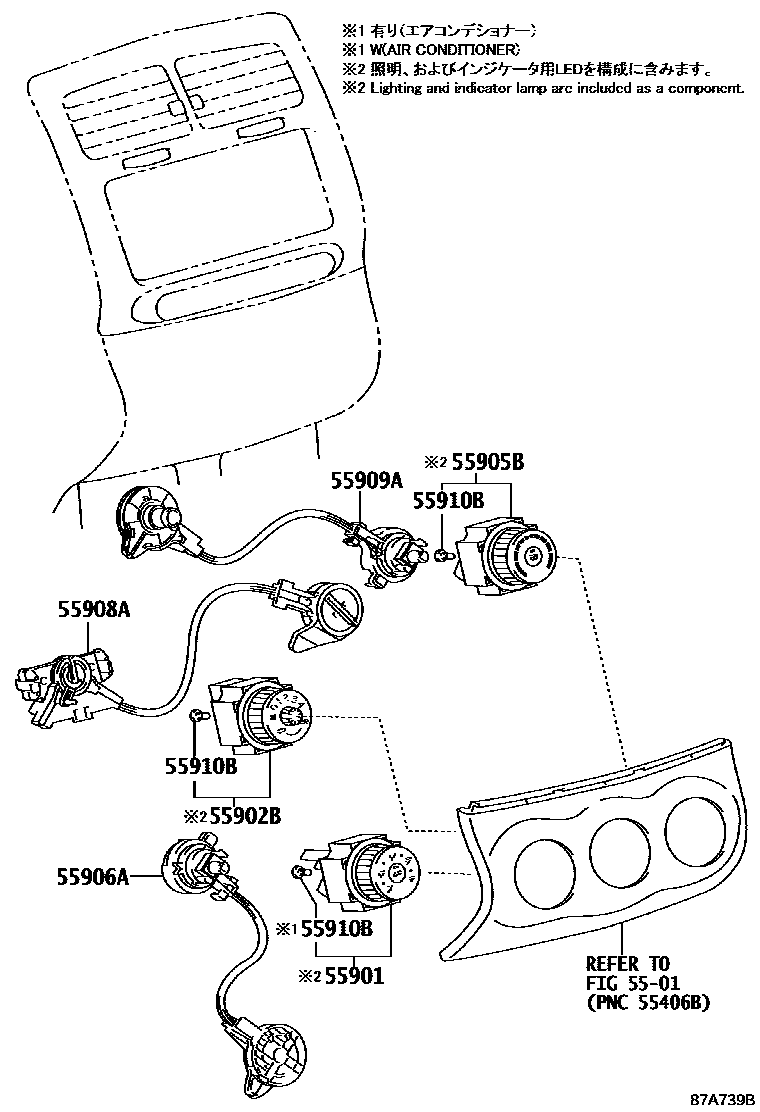

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901BASE SUB-ASSY, HEATER CONTROL

main55901-52230i200901-201604

FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55901-52310supersedes 55901-52230i200901-201604

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

55902BCONTROL SUB-ASSY, HEATER

main55902-52080i200901

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

55905BKNOB, HEATER CONTROL, NO.2

main55903-52230i200901-201007

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); HEATER CONTROL PANEL-MANUAL

main55903-52231i201008

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55903-52240i200901-201007

COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); COLD SPEC & WITHOUT(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL

main55903-52241i201008-201405

COLD SPEC & WITHOUT(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132i200901-201604

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120i200901-201604

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main55908-52130i200901-201405

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120i200901-201604

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

55910BBULB, HEATER CONTROL

main90010-01142i200901-201405

COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL; HEATER CONTROL PANEL-MANUAL; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

8 parts on this diagram · 6 diagrams in section
