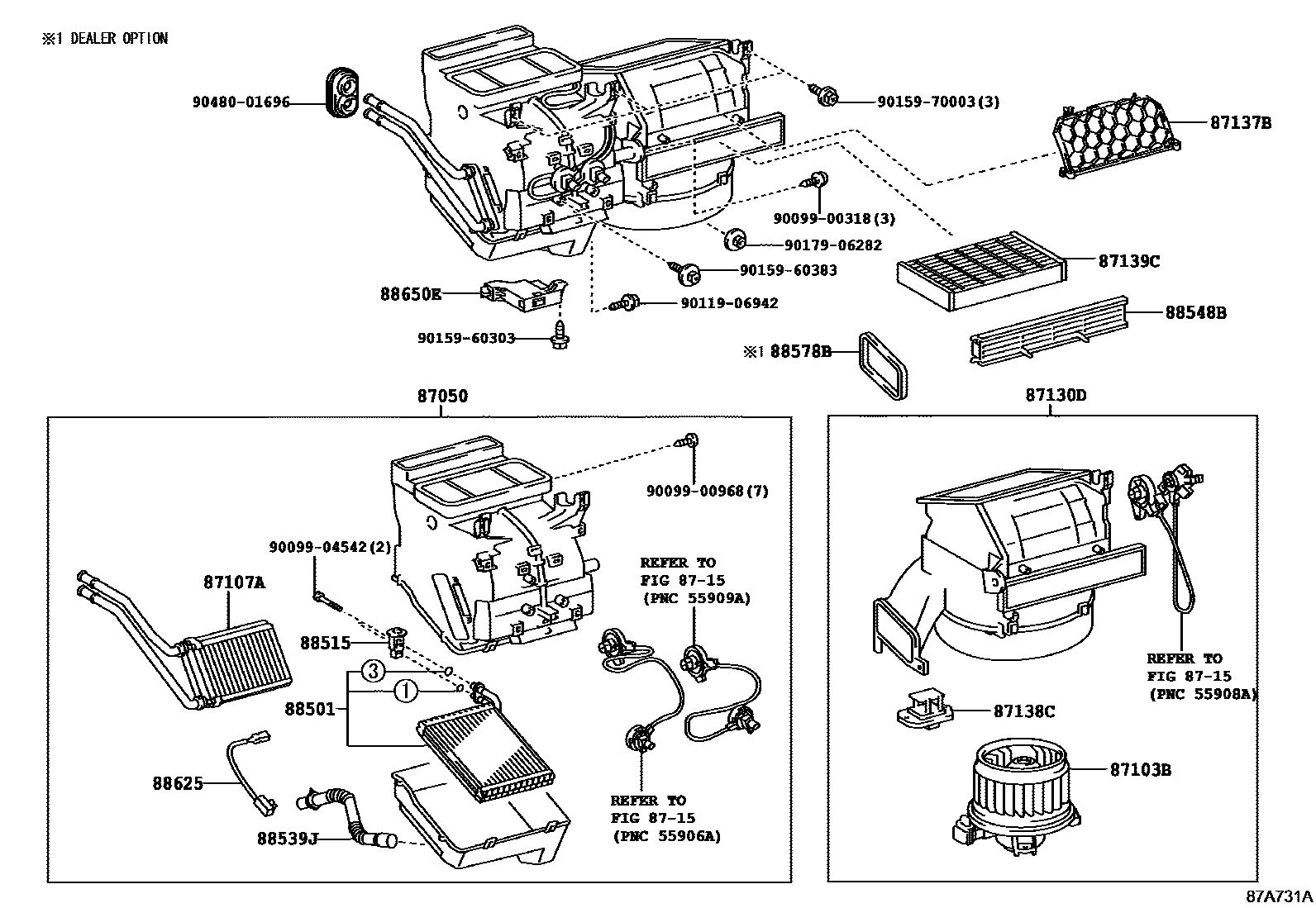

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER & W(HE0003 1AUTO AIR CONDITIONER 0004 1AUTO AIR CONDITIONER & W(HEAT0005 1W/O(AIR CONDITIONER) 0006 1W/O(AIR CONDITIONER) & W(HEAT0007 1MANUAL AIR CONDITIONER 0008 1AUTO AIR CONDITIONER 0009 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52012iNLP11#,NSP110..RHD..R200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52020iNLP11#,NSP110..RHD..N200901-201011

main87050-52062iNSP110..LHD..N200901-201011

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52062iNLP11#,NSP110..LHD..R200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52063iNLP11#,NSP110..LHD..N201011-201604

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52063iNSP110..LHD..N201011-201604

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52071iNLP11#,NSP110..LHD..N200901-201011

main87050-52131iNLP11#,NSP110..RHD..N201011-201405

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87050-52141iNLP11#,NSP110..RHD..N201011-201405

main87050-52250iNLP11#,NSP110..LHD..N201011-201604

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52120iNLP11#,NSP110..RHD..R200901-201012

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87103-52121iNLP11#,NSP110..RHD..R201101-201405

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87103-52131iNLP11#,NSP110..RHD..N200901-201012

main87103-52132iNLP11#,NSP110..RHD..N201101-201405

main87103-52140iNLP11#,NSP110..LHD..N200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87103-52141iNLP11#,NSP110..LHD..R201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87103-52151iNLP11#,NSP110..LHD..N200901-201012

main87103-52152iNLP11#,NSP110..LHD..N201101

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52060iNLP110,NSP110200901-200902

main87107-52061iNLP11#,NSP110200902

87130DBLOWER ASSY

main87130-52032iNLP11#,NSP110..RHD..R200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52042iNLP11#,NSP110..RHD..N200901-201011

main87130-52050iNLP11#,NSP110..RHD..N201011-201405

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52061iNLP11#,NSP110..RHD..N201011-201405

main87130-52072iNLP11#,NSP110..LHD..N200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52082iNLP11#,NSP110..LHD..N200901-201011

main87130-52092iNLP11#,NSP110..LHD..R201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87130-52102iNLP11#,NSP110..LHD..N201011

87137BCOVER, HEATER BLOWER

87138CRESISTOR, BLOWER

main87138-52030iNLP11#,NSP110..R200901

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87138-52030iNLP11#,NSP110..R200901

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main87138-52030iNLP11#,NSP110..R200901

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

87139CFILTER, CLEAN AIR

main87139-30040iNLP11#,NSP110200901-201206

main87139-52040iNLP11#,NSP110201206-201604

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52091iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201011

main88501-52101iNLP11#,NSP110..LHD..R200901-201011

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88501-52101iNLP11#,NSP110..LHD..R200901-201011

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88501-52102iNLP11#,NSP110201011-201111

main88501-52103iNLP11#,NSP110201112

88515VALVE, COOLER EXPANSION

main88515-26070iNLP11#,NSP110200901-201011

main88515-68010iNLP11#,NSP110201011

88539JHOSE, DRAIN COOLER

main88539-52020iNLP11#,NSP110200901-201012

main88539-52030iNLP11#,NSP110..RHD201101-201405

main88539-52040iNLP11#,NSP110..LHD201101

88548BCASE, AIR FILTER

main88548-52040iNLP11#,NSP110200901

88578BPACKING, COOLING UNIT, NO.1

88625THERMISTOR, COOLER, NO.1

main88625-26090iNLP11#,NSP110200901

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-52610iNLP11#,NSP110..N200901-201604

FRONT AIR CONDITIONER-DEALER OPTION

main88650-52630iNLP11#,NSP110..R200901-201604

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88650-52630iNLP11#,NSP110..R200901-201604

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696
