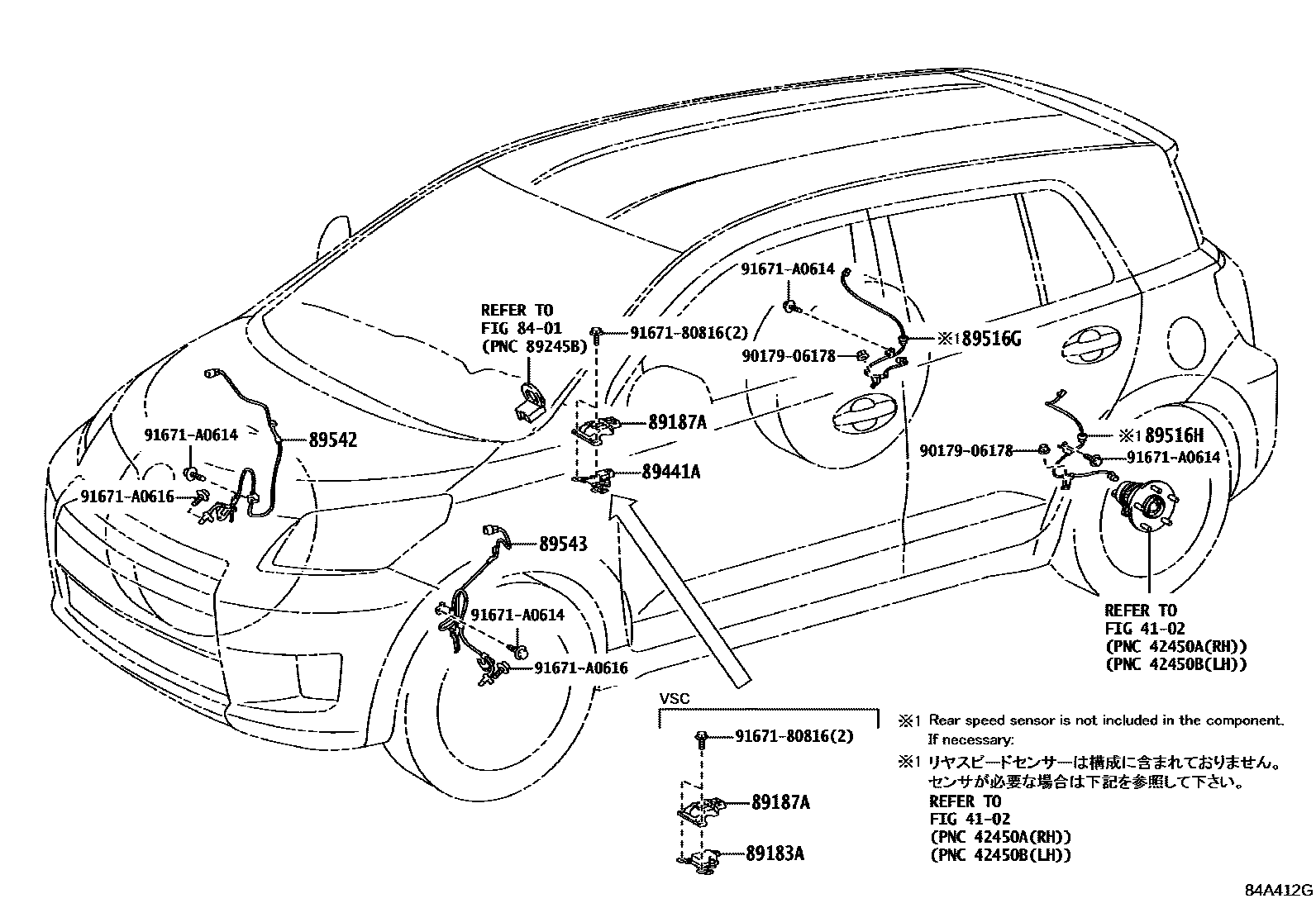

ABS & VSC

0001 1 0002 1 0003 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89180-52010iNLP110,NSP110..LHD; NLP110,NSP110..RHD200901-200906

VEHICLE STABILITY CONT-WITH PUMP UP BA

main89180-52020iNLP115..LHD; NLP115..RHD200902-200906

VEHICLE STABILITY CONT-WITH PUMP UP BA

main89180-52050iNLP110,NSP110..RHD200906-201405

main89180-52070iNLP115..RHD200906-201405

89187APROTECTOR, YAWRATE SENSOR

main89187-52010iNLP110,NSP110200901

main89187-52020iNLP115..LHD201008-201405

89441ASENSOR, DECELERATION

main89440-52060iNLP110,NSP110..LHD200901

main89441-12060iNLP115..LHD200902-201008

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-52090iNLP110,NSP110200901-200904

main89516-52110iNLP110,NSP110200905-201604

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-52100iNLP110,NSP110200901-200904

main89516-52120iNLP110,NSP110200905

89542SENSOR, SPEED, FRONT RH

main89542-52060iNLP11#,NSP110200901-201107

main89542-52120iNLP11#,NSP110201108

89543SENSOR, SPEED, FRONT LH

main89543-52060iNLP11#,NSP110200901-201107

main89543-52120iNLP11#,NSP110201108

9017906178

main90179-06178

9167180816

main91671-80816

91671A0614

main91671-A0614

91671A0616

main91671-A0616

13 parts on this diagram · 3 diagrams in section
