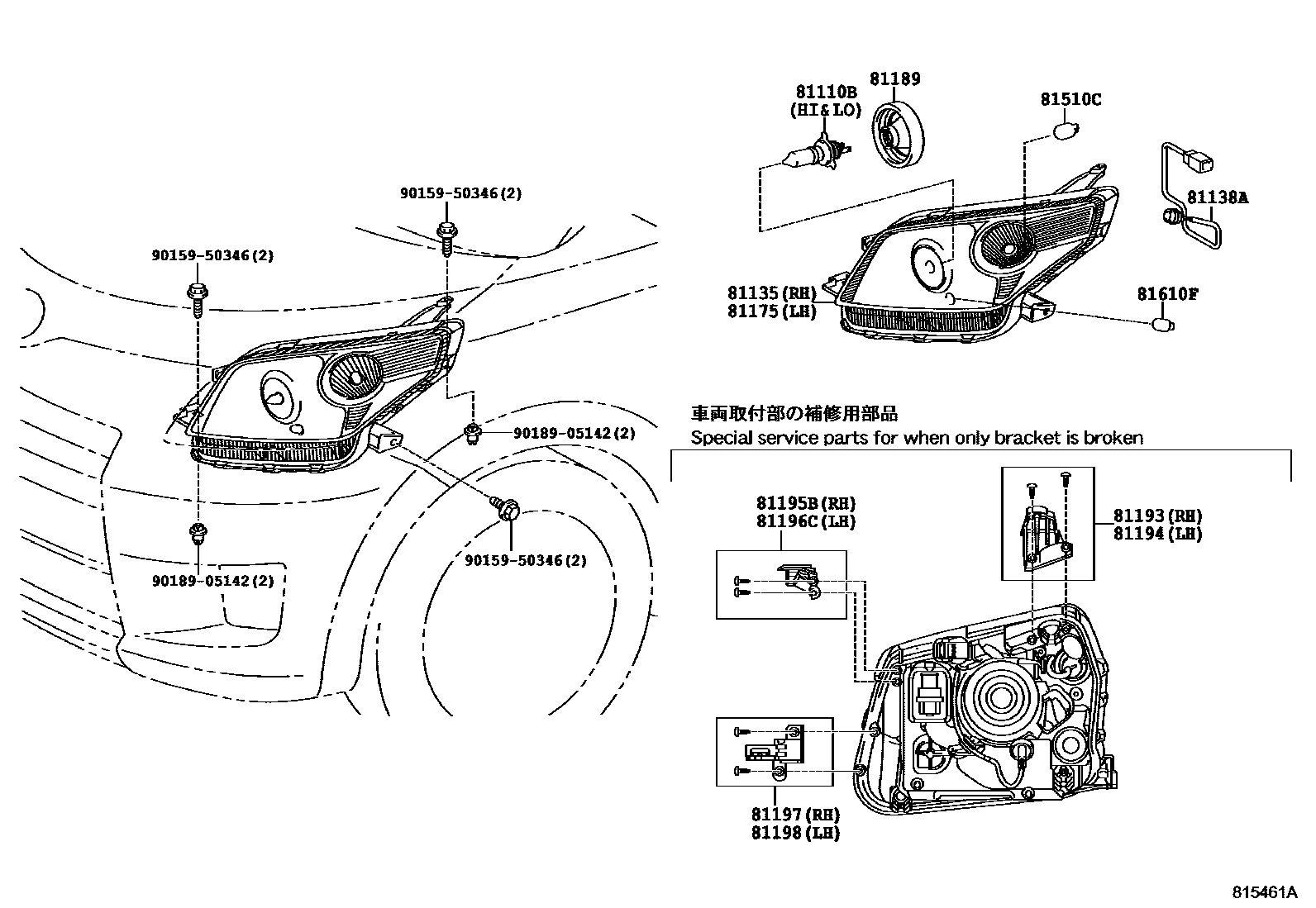

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNLP11#,NSP110200901

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52C10supersedes 81130-52C20iNLP11#,NSP110..LHD; NLP11#,NSP110..RHD200901-201206

HEADLAMP AIMING-RH AIMING

main81130-52C20supersedes 81130-52C10iNLP11#,NSP110..LHD; NLP11#,NSP110..RHD200901-201206

HEADLAMP AIMING-LH AIMING

main81130-52G10supersedes 81130-52G20iNLP11#,NSP110..RHD201206-201405

HEADLAMP AIMING-RH AIMING

main81130-52G20supersedes 81130-52G10iNLP11#,NSP110..LHD201206

HEADLAMP AIMING-LH AIMING

81138ASOCKET & WIRE, HEADLAMP

main81138-52880×2iNLP11#,NSP110200901

81175UNIT ASSY, HEADLAMP, LH

main81170-52C10supersedes 81170-52C20iNLP11#,NSP110..LHD; NLP11#,NSP110..RHD200901-201206

HEADLAMP AIMING-RH AIMING

main81170-52C20supersedes 81170-52C10iNLP11#,NSP110..LHD; NLP11#,NSP110..RHD200901-201206

HEADLAMP AIMING-LH AIMING

main81170-52G10supersedes 81170-52G20iNLP11#,NSP110..RHD201206-201405

HEADLAMP AIMING-RH AIMING

main81170-52G20supersedes 81170-52G10iNLP11#,NSP110..LHD201206

HEADLAMP AIMING-LH AIMING

81189COVER, HEADLAMP

main81139-52570×2iNLP11#,NSP110200901

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52130iNLP11#,NSP110200901

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52130iNLP11#,NSP110200901

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-52100iNLP11#,NSP110200901

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-52100iNLP11#,NSP110200901

81197BRACKET, HEADLAMP, LOWER RH

main81197-52020iNLP11#,NSP110200901

81198BRACKET, HEADLAMP, LWR LH

main81198-52020iNLP11#,NSP110200901

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNLP11#,NSP110200901

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNLP11#,NSP110200901

12V 5W

9015950346

main90159-50346

9018905142

main90189-05142

15 parts on this diagram · 1 diagram in section
