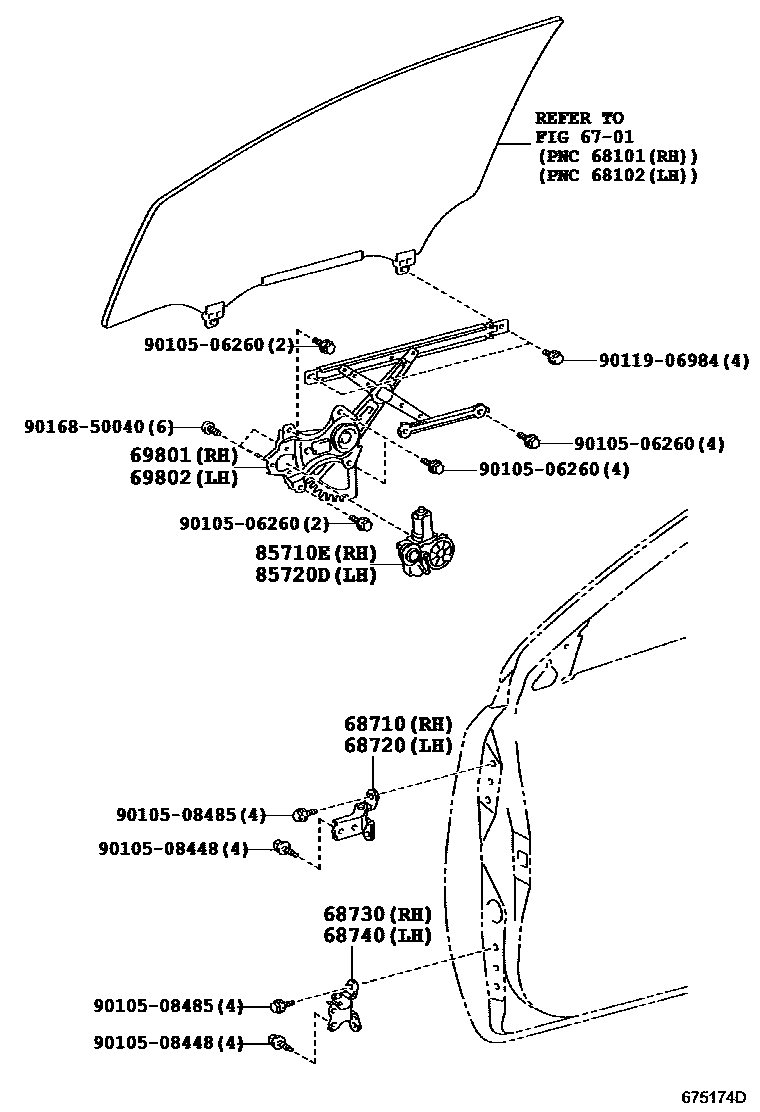

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNLP11#,NSP110200901-201604

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNLP11#,NSP110200901-201604

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNLP11#,NSP110200901-201604

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNLP11#,NSP110200901-201604

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070iNLP110,NSP110200901

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070iNLP110,NSP110200901

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30400iNLP110,NSP110..RHD200902-201405

main85710-35180iNLP110,NSP110..LHD200901

main85710-48060iNLP110,NSP110..RHD200901-200902

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490iNSP110201410

main85720-30340iNLP110,NSP110..LHD200902-201409

main85720-35140iNLP110,NSP110..RHD200901-201405

main85720-48070iNLP110,NSP110..LHD200901-200902

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
