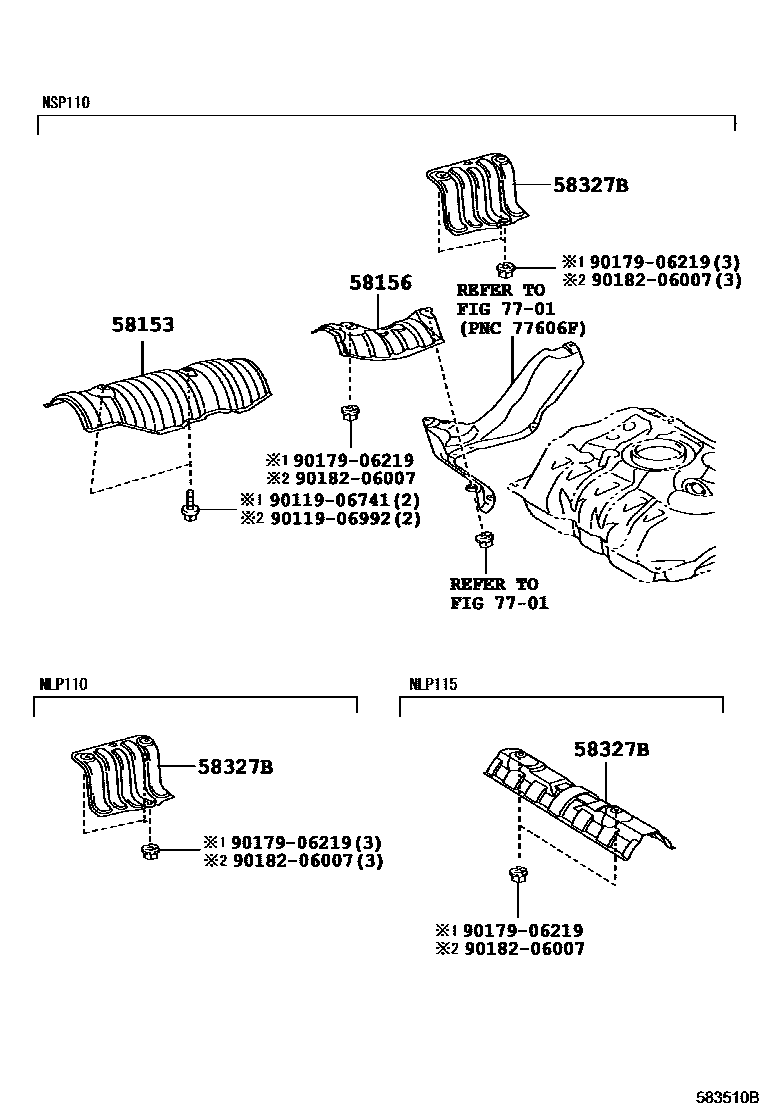

FLOOR INSULATOR

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52070iNSP110200901-200912

main58153-52071iNSP110201001-201604

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iNSP110200901

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52110iNLP110,NSP110200901-200912

main58327-52111iNLP110,NSP110201001

main58327-52151iNLP115200902-201405

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9011906992

main90119-06992

9017906219

main90179-06219

9018206007

main90182-06007

8 parts on this diagram · 1 diagram in section
