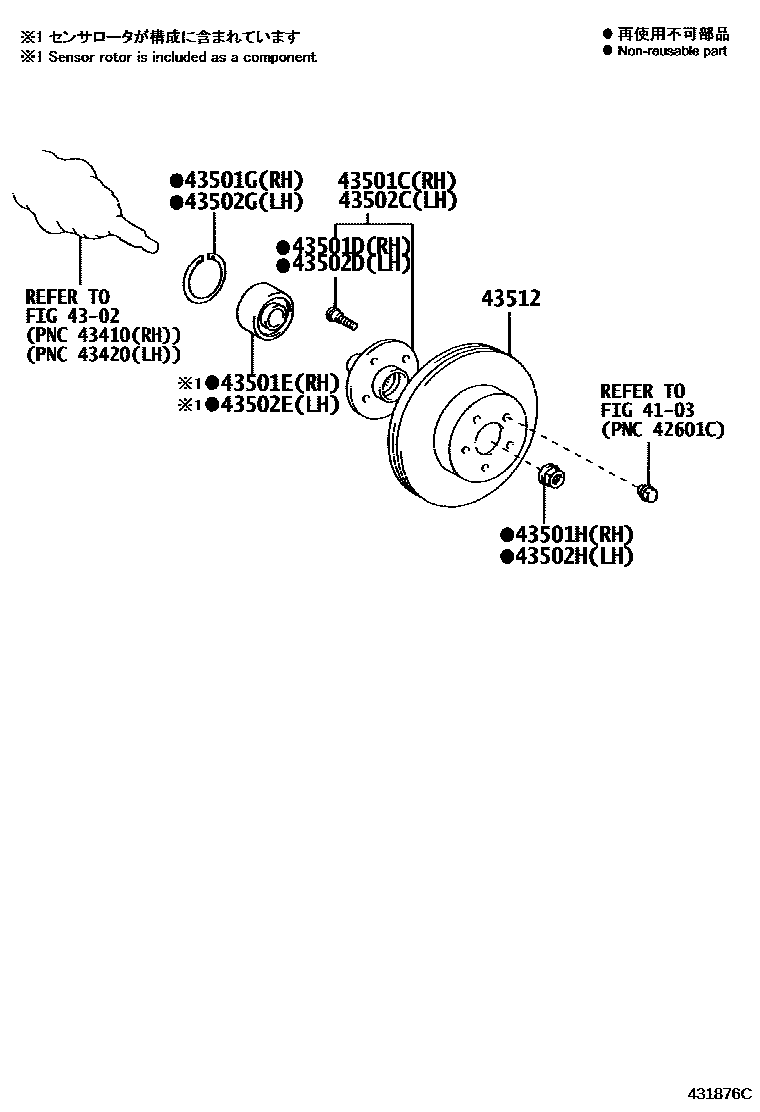

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52040iNLP11#,NSP110200901-201604

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iNLP11#,NSP110200901

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNLP11#,NSP110200901-201604

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNLP11#,NSP110200901

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNLP11#,NSP110200901

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52040iNLP11#,NSP110200901

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iNLP11#,NSP110200901

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNLP11#,NSP110200901-201604

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNLP11#,NSP110200901

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNLP11#,NSP110200901

43512DISC, FRONT

main43512-12710×2iNLP11#,NSP110200901-201604

13 parts on this diagram · 1 diagram in section
