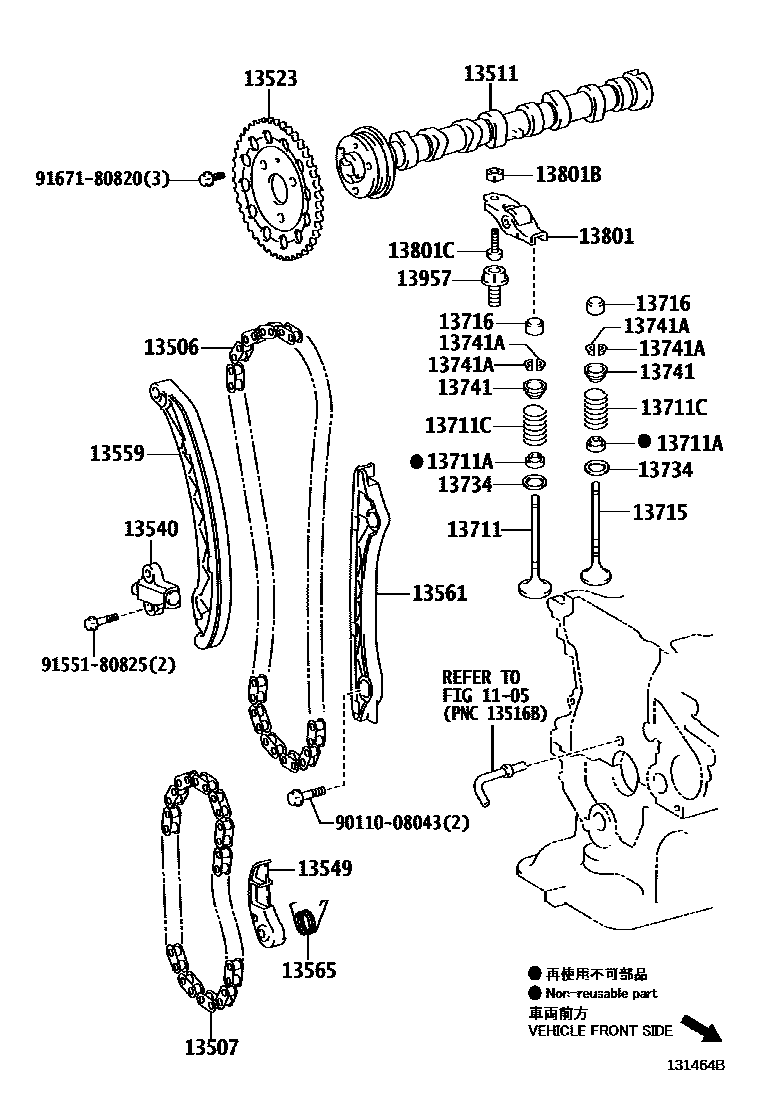

CAMSHAFT & VALVE
1105CYLINDER BLOCK
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
13711CSPRING, COMPRESSION(FOR OUTER)
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
13715VALVE, EXHAUST
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13711C=TYPE A
PNC 13711C=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
PNC 13711C=TYPE B
PNC 13711C=TYPE A
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13957PIVOT, VALVE ROCKER ARM
9011008043
main90110-08043
9155180825
main91551-80825
9167180820
main91671-80820
25 parts on this diagram · 2 diagrams in section
