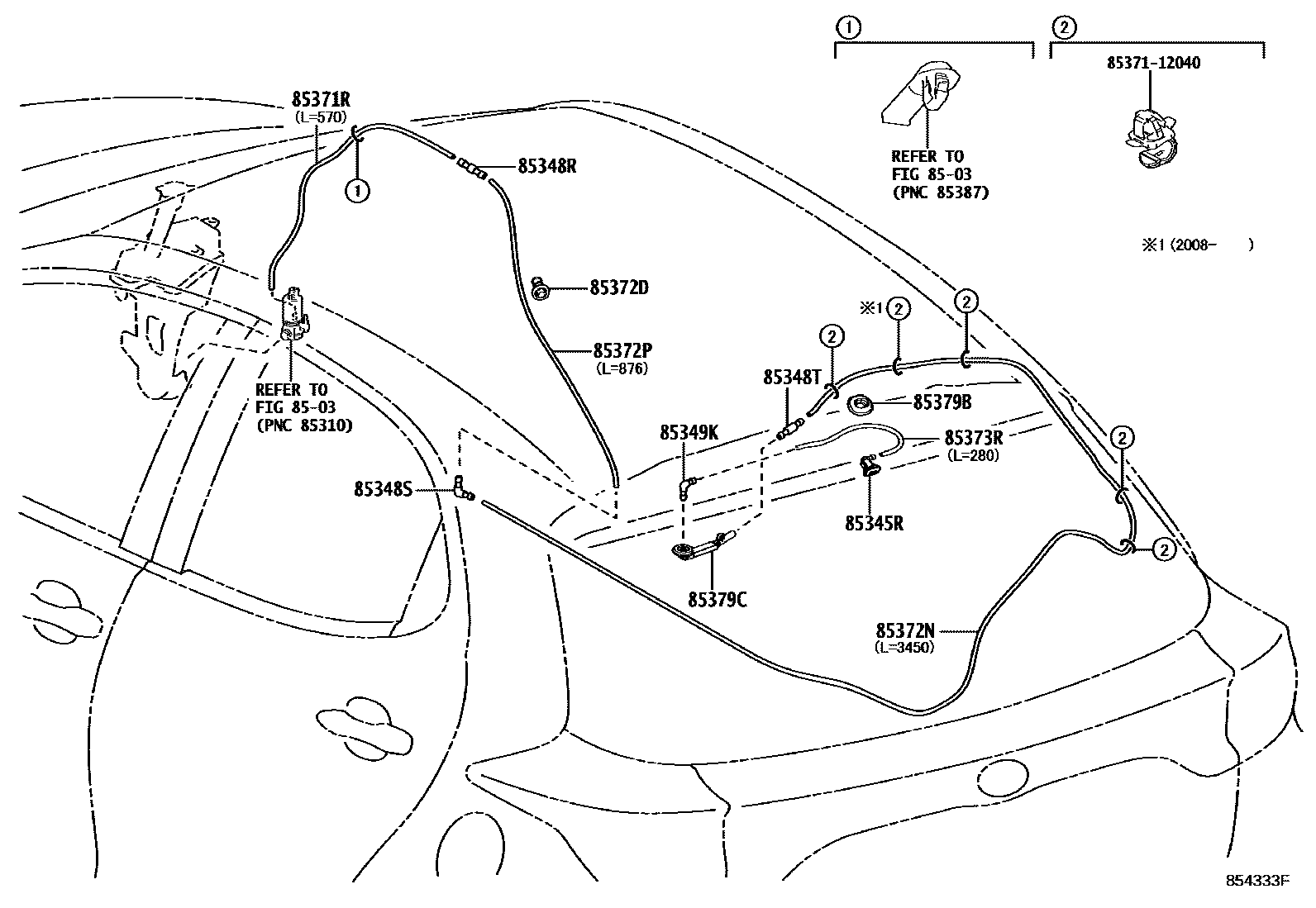

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-K0020iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-05050iKSP211..G202007-202105

85348SJOINT, REAR WASHER ELBOW, NO.1

main85375-K0030iKSP211..G202007-202105

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-05050iKSP211..G202007-202105

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iKSP211..G202007-202105

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-16009iKSP211..G202007-202105

85372DGROMMET, REAR WASHER HOSE

main85379-12850iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main90069-46108iKSP211..N,R;MXPA11,MXPH11202007-202106

L=3450

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009iKSP211..G202007-202105

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-16009iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

85379BGROMMET, WASHER, A

main85373-0D060iKSP211..G202007-202105

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-0D022iKSP211..G202007-202105

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

14 parts on this diagram · 1 diagram in section
