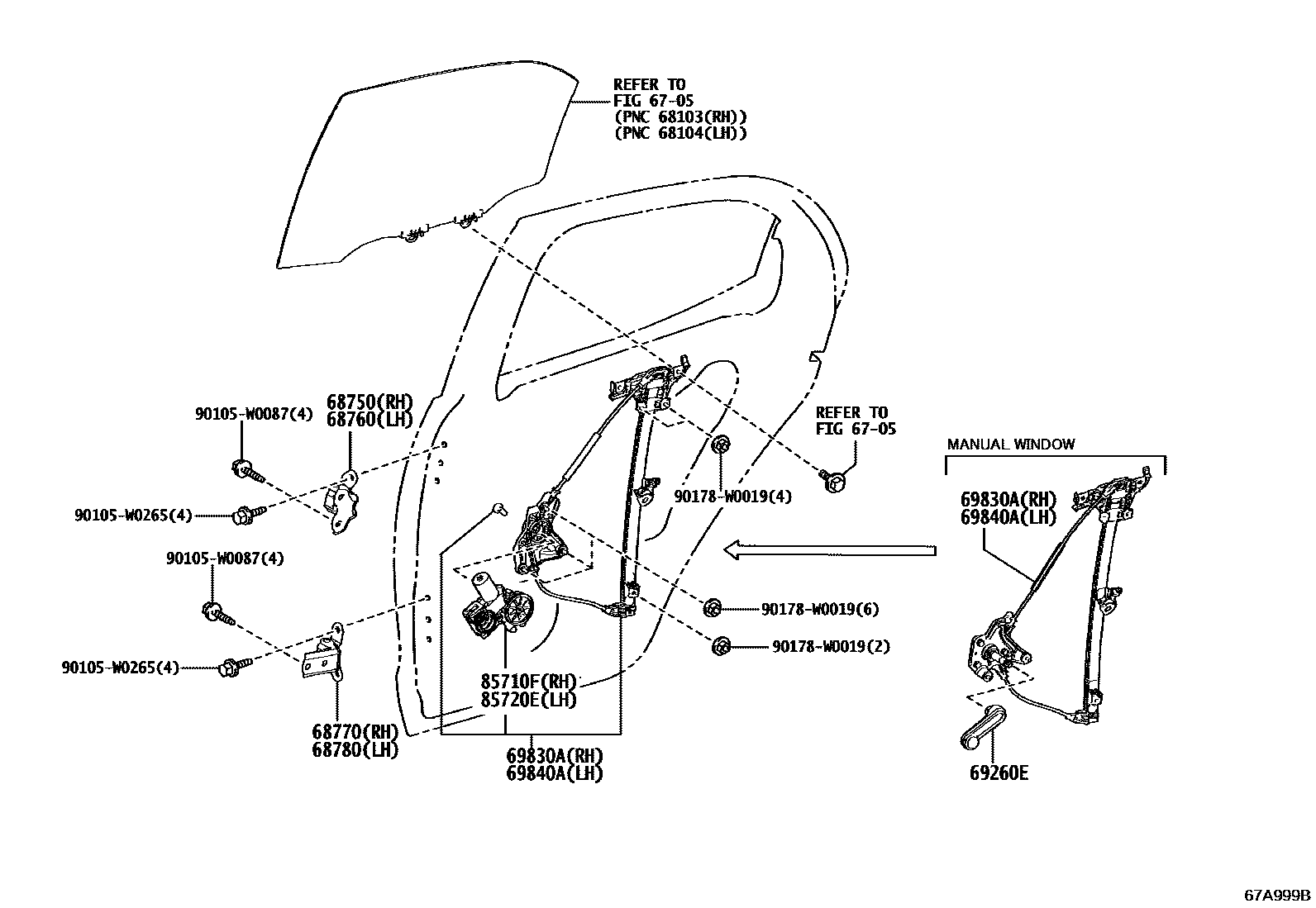

REAR DOOR WINDOW REGULATOR & HINGE
6705REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-K0010-C0×2supersedes 69260-K0011-C0iKSP211,MXPA11,MXPH11..N; KSP211,MXPH11..G,S; KSP211,MXPH11..R202007-202106
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; LW PACKAGE,BLACK,TRIM2#; POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO),BLACK,TRIM1#,2#,4#
main69260-K0011-C0×2iKSP211,MXPA11,MXPH11..N..FRP; MXPA11..V;MXPH11..RHD..V;MXPH11..N..CZEP;MXPH11..LHD..(R,V);KSP211..LHD..R..FRP;KSP211,MXPA11..(N,R)..CZEP; MXPH11..G,S202107
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; LW PACKAGE,BLACK,TRIM2#
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
main69830-K0020supersedes 69830-K0010iMXPA11..V;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..RHD..CVT..N; MXPH11..G202007
LW PACKAGE
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
main69840-K0020supersedes 69840-K0010iMXPA11..V;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..RHD..CVT..N; MXPH11..G202007
LW PACKAGE
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
main85710-K0010iKSP211..N;MXPA11..V;MXPA11..RHD..CVT..N; MXPH11..G;MXPA11..RHD..S;MXPA11..LHD..(G,S)202007
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
main85720-K0010iKSP211..N;MXPA11..V;MXPA11..RHD..CVT..N; MXPH11..G;MXPA11..RHD..S;MXPA11..LHD..(G,S)202007
POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
90105W0087
main90105-W0087
90105W0265
main90105-W0265
90178W0019
main90178-W0019
13 parts on this diagram · 1 diagram in section
