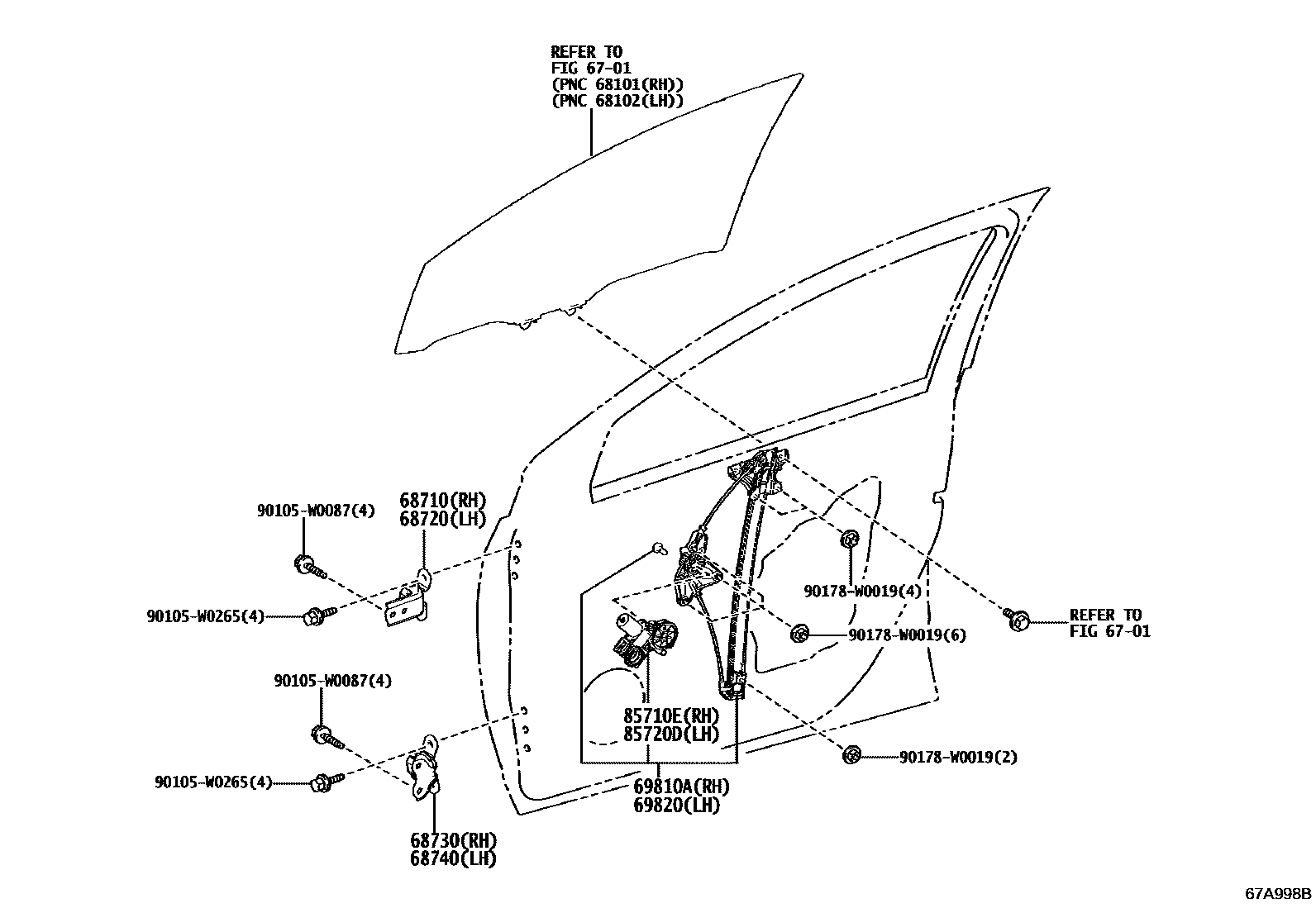

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D630iMXPH1#..N,S,V;MXPH11..R..FRP202401

main69810-K0010iKSP211..G202007-202407

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D630iMXPH1#..N,S,V;MXPH11..R..FRP202401

main69820-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D460iMXPH1#..N,S,V;MXPH11..R..FRP202401

main85710-K0020iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D480iMXPH1#..N,S,V;MXPH11..R..FRP202401

main85720-K0020iKSP211..G202007-202407

90105W0087

main90105-W0087

90105W0265

main90105-W0265

90178W0019

main90178-W0019

12 parts on this diagram · 1 diagram in section
