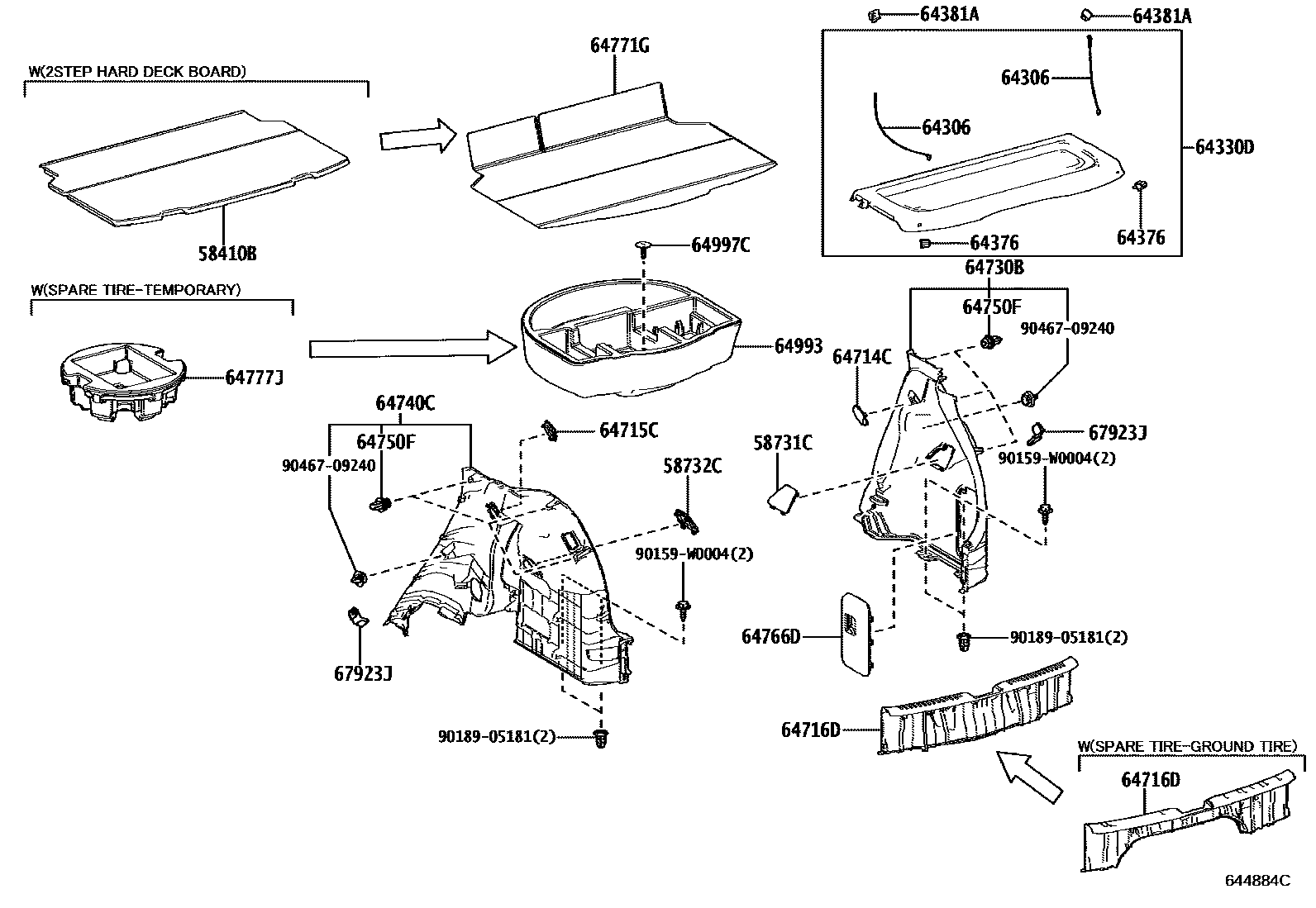

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
main58410-K0020-C1iKSP211..LHD..N..FRP; KSP211..LHD..R..FRP; MXPA11..RHD..CVT..N; MXPA11..S,V;MXPH11..R..CZEP; MXPH11..G..FRP;MXPA11..LHD..G..FRP202007
DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#,4#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM2#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM1#,2#,4#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM2#
58731CCAP, REAR ABSORBER
BLACK,TRIM1#,2#
58732CCAP, REAR ABSORBER
BLACK,TRIM1#,2#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-K0020-C0iKSP211,MXPA11,MXPH11..G; KSP211,MXPH11..R; MXPA11..N..FRP;KSP211,MXPH11..N; MXPH11..S,V;MXPA11..(S,V)..FRP;MXPA11..(N,S)..CZEP202007
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#
64376SPACER, PACKAGE TRAY TRIM, NO.2
PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)
64381AHANGER, PACKAGE TRAY TRIM
PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)
64714CCOVER, DECK SIDE TRIM, RH
main62566-K0020-C0iMXPH11..N;MXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP; MXPH11..S,V;MXPA11..N..CZEP;MXPH11..LHD..R..FRP202007-202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
64715CCOVER, DECK SIDE TRIM, LH
main62567-K0020-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPA11..S,V;KSP211..LHD..R;MXPH11..R..CZEP; MXPH11..G;MXPA11..LHD..G..FRP202007
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
64716DCOVER, DECK TRIM, REAR
main64716-K0020-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPA11..S,V;KSP211..LHD..R;MXPH11..R..CZEP; MXPH11..G;MXPA11..LHD..G..FRP202007
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main64716-K0030-C0iKSP211..LHD..N..FRP; MXPA11,MXPH11..LHD..G..FRP; MXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S)..FRP202007
SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM1#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM1#,2#,4#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-K0050-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPA11..S,V;KSP211..LHD..R;MXPH11..R..CZEP; MXPH11..G;MXPA11..LHD..G..FRP202007
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main64730-K0070-C0iKSP211..LHD..N..FRP; KSP211..LHD..R..FRP; MXPA11..RHD..CVT..N; MXPA11..S,V;MXPH11..R..CZEP; MXPH11..G..FRP;MXPA11..LHD..G..FRP202007
DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#,4#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM2#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM1#,2#,4#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#
main64740-K0070-C0iKSP211..LHD..N..FRP; KSP211..LHD..R..FRP; MXPA11..RHD..CVT..N; MXPA11..S,V;MXPH11..R..CZEP; MXPH11..G..FRP;MXPA11..LHD..G..FRP202007
DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#,4#; DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM2#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM1#,2#,4#; SPARE TIRE-GROUND TIRE, STEEL(185/65R15),BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64766DCOVER, DECK SIDE TRIM JACK
main64766-K0020-C0iMXPH11..N;MXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP; MXPH11..S,V;MXPA11..N..CZEP;MXPH11..LHD..R..FRP202007-202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
64771GCOVER, SPARE WHEEL
main64771-K0020-C1iKSP211,MXPA11,MXPH11..G; KSP211,MXPA11,MXPH11..N..FRP; MXPA11..(S,V)..FRP;MXPA11..(N,S)..CZEP;KSP211,MXPH11..R,S,V202007
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
64777JCUSHION, SPARE WHEEL
SPARE TIRE-TEMPORARY(T125/70D16); SPARE TIRE-TEMPORARY(T125/70D17)
64993BOX, DECK FLOOR, REAR
LW PACKAGE; SPARE TIRE-GROUND TIRE, STEEL(185/65R15)
64997CCLIP(FOR DECK FLOOR BOX)
67923JCLAMP(FOR DECK TRIM SIDE PANEL)
90159W0004
main90159-W0004
9018905181
main90189-05181
9046709240
main90467-09240
22 parts on this diagram · 1 diagram in section
