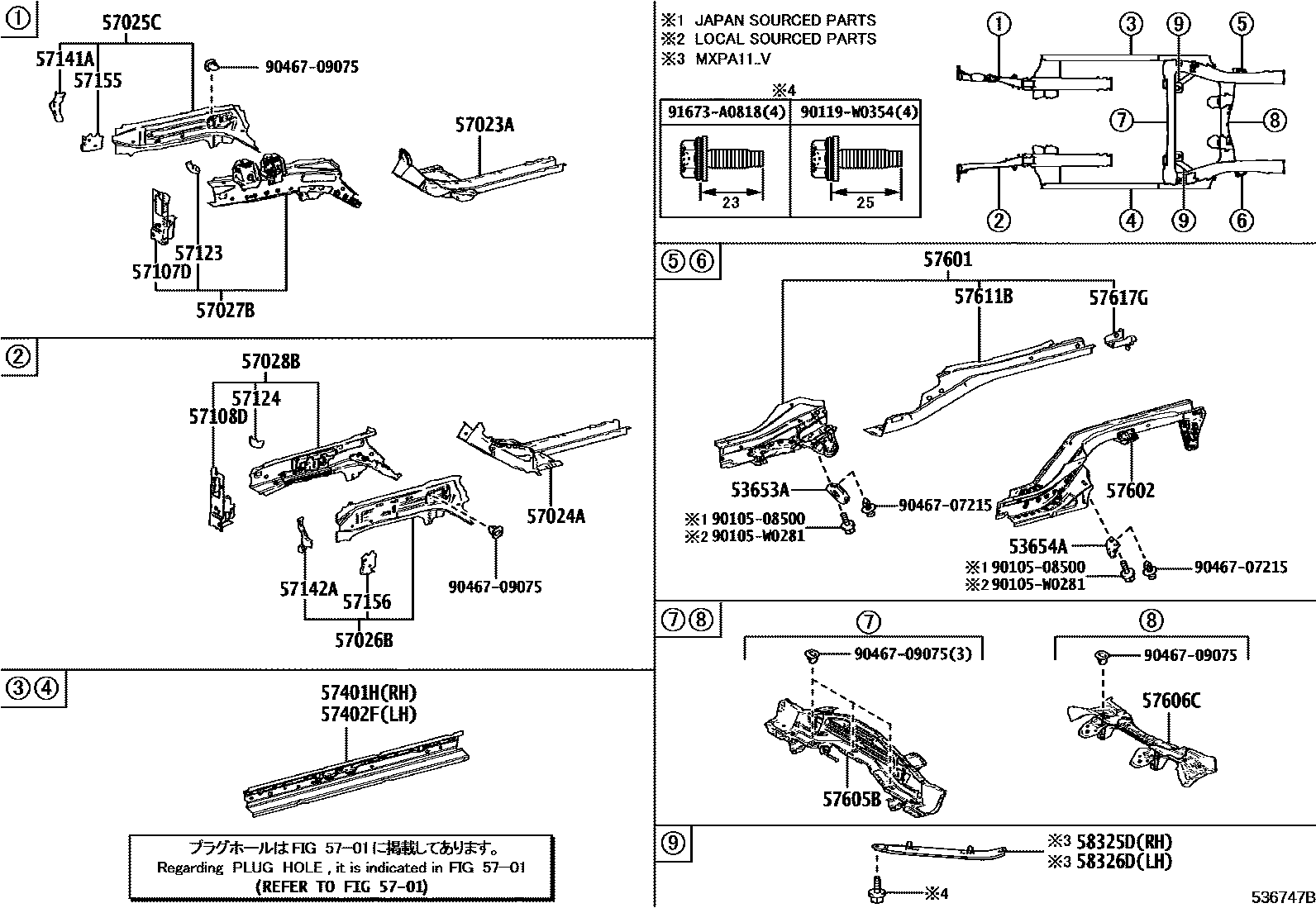

FLOOR SIDE MEMBER

0001 1 0002 1

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

5701HOLE PLUG

→ Go to FIG 57-01

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0D230iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202401-202407

main57023-0D240iMXPH1#..(N,S)..CZEP202401

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0D210iKSP211..N..FRP;MXPH11..G..FRP;MXPA11..LHD..G..FRP;KSP211..LHD..R..FRP;MXPA11..6F..(S,V)..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP202007

main57024-0D220iMXPA11..N..CZEP;MXPH11..(N,S)..CZEP202111-202401

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D110iMXPH1#..(N,S)..CZEP202401

main57025-K0010iMXPH1#..(N,R,S,V)..FRP202401

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D110iKSP211..CZEP;MXPA11..(G,S)..CZEP;MXPH11..(G,R)..CZEP202111

main57026-K0010iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202401-202407

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0D030iKSP211..CZEP;MXPA11..(G,S)..CZEP;MXPH11..(G,R)..CZEP202111

main57027-K0010iKSP211..G202007-202105

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0D030iMXPH1#..(N,S)..CZEP202401

main57028-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-K0010iKSP211..G202007-202105

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D130iMXPA11..N..CZEP202401-202407

main57124-K0010iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202401-202407

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-0D010iMXPH1#..(N,S)..CZEP202401

main57141-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-0D010iMXPH1#..(N,S)..CZEP202401

main57142-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-0D120iMXPA11..N..CZEP202401-202407

main57155-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-0D060iMXPH1#..(N,S)..CZEP202401

main57156-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D310iMXPH1#..(N,S)..CZEP202401

main57401-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D290iMXPA11..N..CZEP202401-202407

main57402-K0030iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202401-202407

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D500iMXPH1#..(N,S)..CZEP202401

main57601-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D460iMXPH1#..(N,S)..CZEP202401

main57602-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D250iMXPA11..N..CZEP202401-202407

main57605-0D290iMXPH11..(N,S)..CZEP202111-202401

main57605-K0010iKSP211..G202007-202105

main57605-K0030iMXPH11..RHD..R202007-202205

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D180iMXPH1#..(N,S)..CZEP202401

main57606-0D190iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202012-202205

main57606-K0010iKSP211,MXPA11,MXPH11202007-202011

57611BMEMBER, REAR FLOOR SIDE, FRONT RH

main57611-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

57617GRETAINER, REAR BUMPER ARM

main57617-K0010iKSP211..G202007-202105

58325DBRACE, REAR FLOOR PANEL, RH

main58325-0D180iMXPA11..V202203

58326DBRACE, REAR FLOOR PANEL, LH

main58326-0D010iMXPA11..V202203

9010508500

main90105-08500

90105W0281

main90105-W0281

90119W0354

main90119-W0354

9046707215

main90467-07215

9046709075

main90467-09075

91673A0818

main91673-A0818

33 parts on this diagram · 2 diagrams in section
