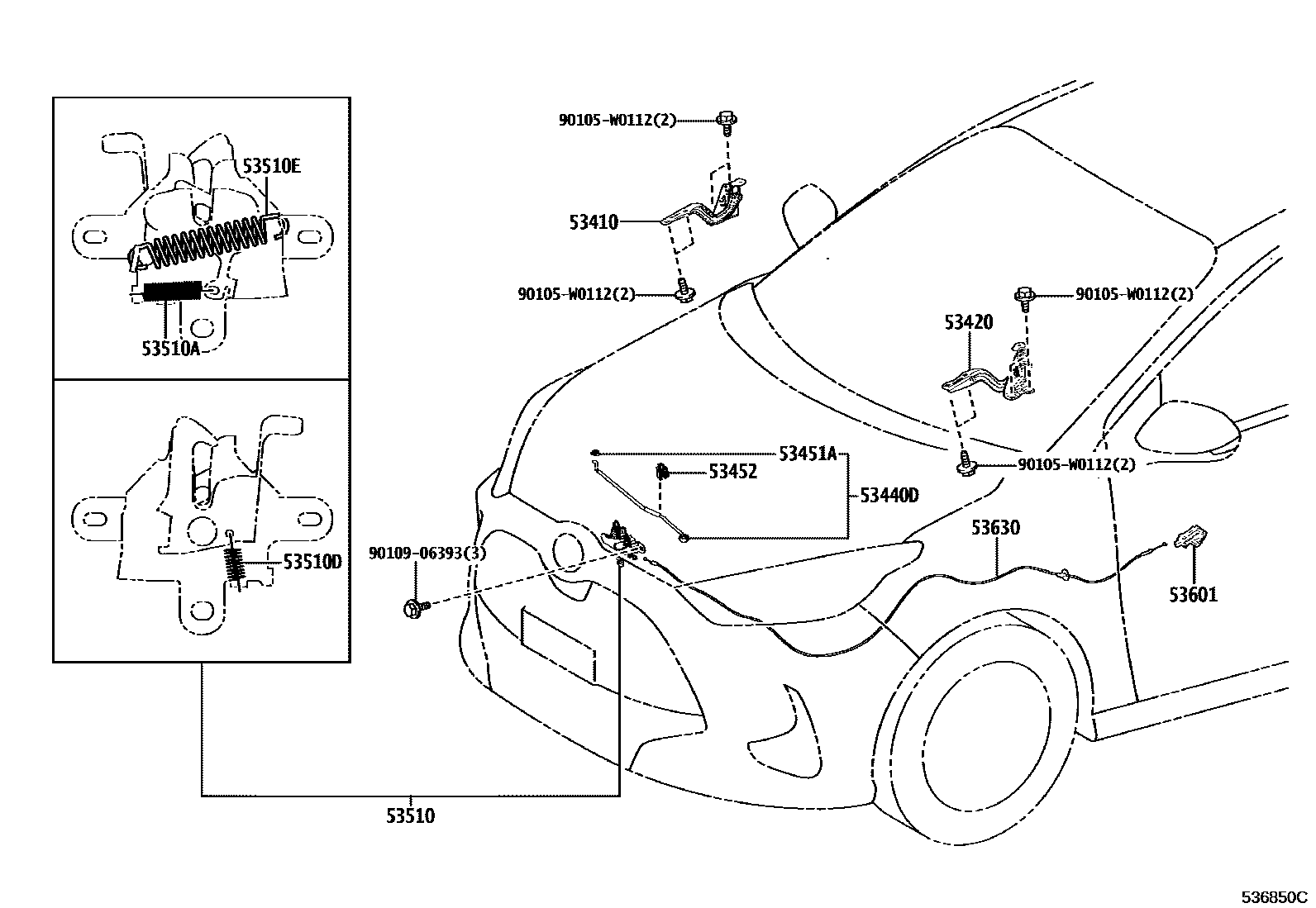

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
main53440-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY &ID); LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
main53510-K0050supersedes 53510-K0040iMXPH1#..LHD..(S,V); MXPH1#..LHD..S..FRP; MXPH11..LHD..(S,V)..FRP; MXPH11..LHD..N; MXPH11..LHD..N..FRP; MXPH11..LHD..S; MXPH11..LHD..S..FRP; MXPH11..N..CZEP;MXPH11..LHD..(N,R)..FRP202401
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY &ID); LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH; MAYOTTE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); MOROCCO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT; OVERSEA FRANCE(CSA) SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); OVERSEA FRANCE(CSA) SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOORLOCK-WITH(SMART ENTRY & ID); REUNION SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); REUNION SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); TUNISIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT; TURKY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY; TURKY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT; WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
LW PACKAGE&WIRELESS DOOR LOCK-WITH
main53510-K0040iMXPH1#..LHD..S..FRP; MXPH11..LHD..(S,V)..FRP; MXPH11..LHD..N..FRP; MXPH11..LHD..S; MXPH11..LHD..S..FRP; MXPH11..N..CZEP;MXPH11..LHD..(N,R)..FRP202401
LW PACKAGE&WIRELESS DOOR LOCK-WITH; MAYOTTE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); MOROCCO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT; OVERSEA FRANCE(CSA) SPEC; OVERSEA FRANCE(CSA) SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); REUNION SPEC; REUNION SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); TUNISIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT; TURKY SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY; TURKY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY; UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&DATA COMMUNICATION MODULE-WITHOUT
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.75
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
LT.GRAY,TRIM1#
main53601-F4020-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPH11..G;MXPA11..S,V;KSP211..LHD..R;MXPH11..R..CZEP202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
90105W0112
main90105-W0112
9010906393
main90109-06393
13 parts on this diagram · 2 diagrams in section
