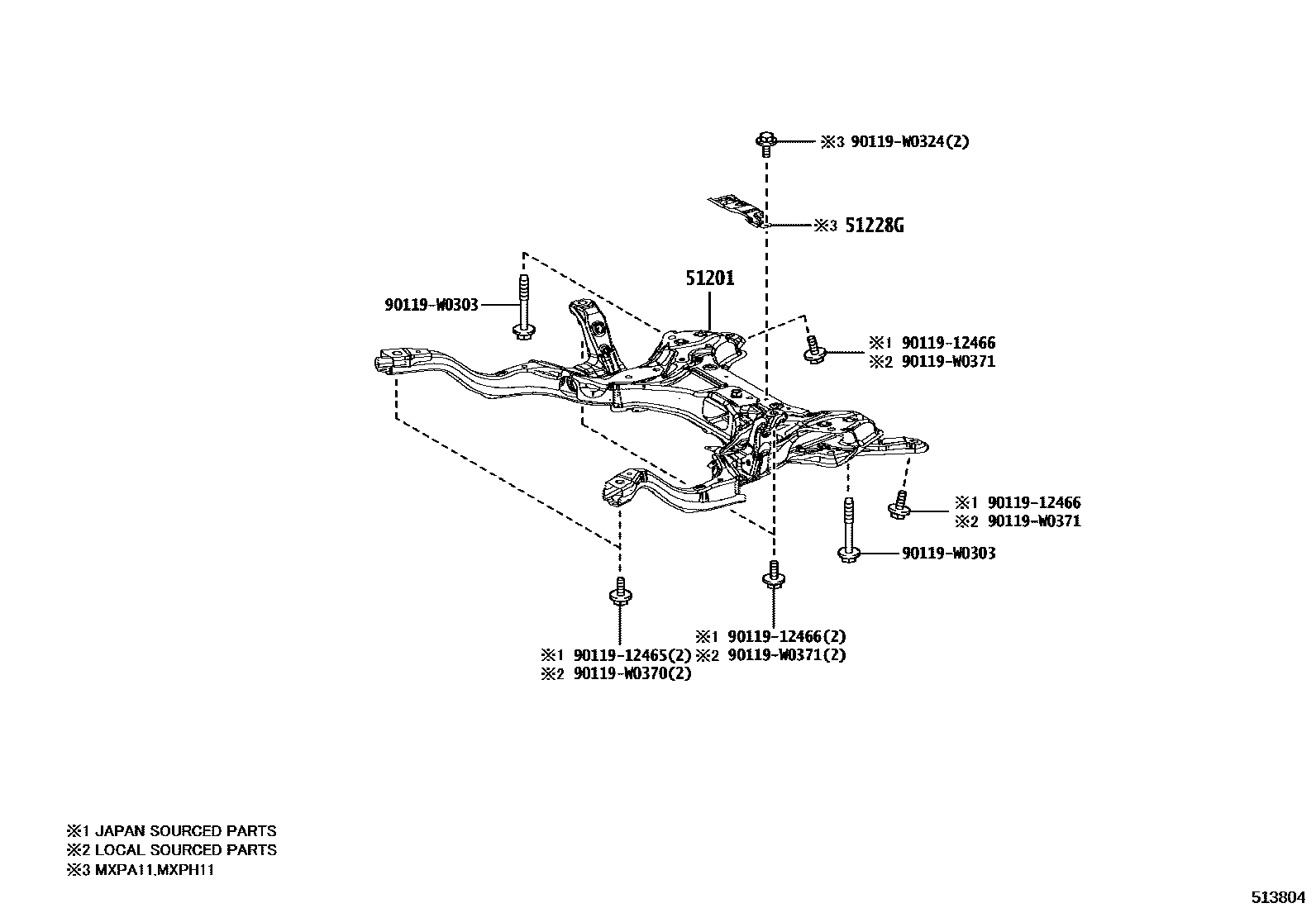

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0003 1ENGINE UNDER COVER 0004 1FLOOR UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D280iKSP211..CZEP202111

main51201-0D290iMXPA11..N..CZEP202111-202407

main51201-K0010iKSP211..N..FRP;KSP211..LHD..R..FRP202007-202205

main51201-K0020iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP202007-202406

main51201-K0021iMXPH1#..(N,R,S,V)..FRP202407

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-0D080iMXPA11,MXPH11202007-202407

main51228-0D080iMXPH1#..N,S,V;MXPH11..R..FRP202401

EXHAUST EMISSION CONTROL-EURO6B, WITH(ON BOARD DIAGNOSIS)

main51228-0D080iMXPH1#..N,S,V;MXPH11..R..FRP202401

EXHAUST EMISSION CONTROL-EURO4, WITHOUT(ON BOARD DIAGNOSIS)

9011912465

main90119-12465

9011912466

main90119-12466

90119W0303

main90119-W0303

90119W0324

main90119-W0324

90119W0370

main90119-W0370

90119W0371

main90119-W0371

8 parts on this diagram · 4 diagrams in section
