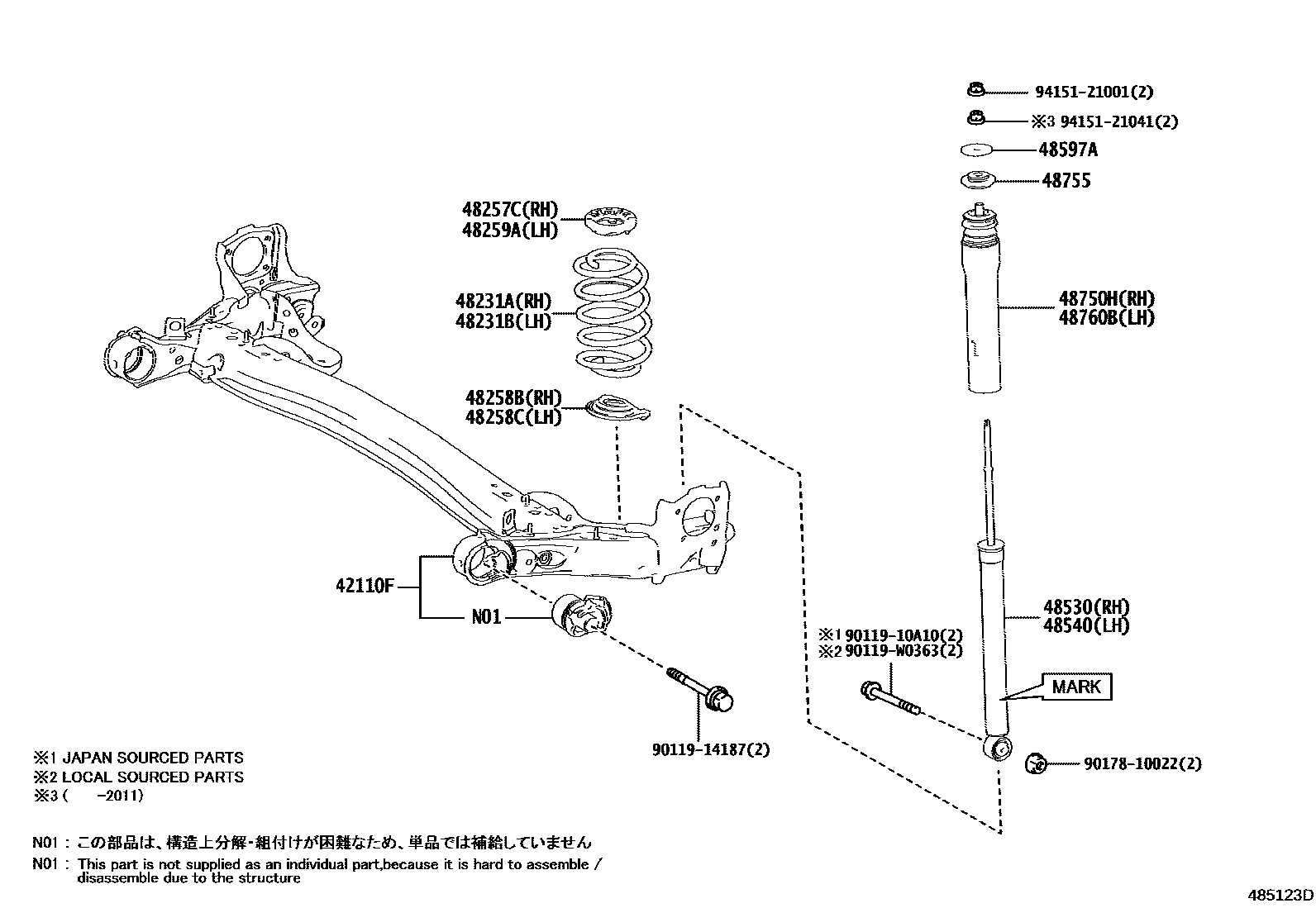

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-K0020iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main42110-K0030iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

48231ASPRING, COIL, REAR RH

main48231-0DC00iMXPA11..V202203

main48231-0DC10iMXPH11..V202203-202401

main48231-K0070iKSP211..G202007-202105

main48231-K0080iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main48231-K0090iMXPH11..RHD..R202007-202205

main48231-K0120iKSP211..LHD..(N,R)..FRP202007

EGYPT SPEC

main48231-K0130iMXPA11..LHD..CVT..N..FRP202007-202401

EGYPT SPEC

main48231-K0140iMXPH11..LHD..G..FRP202205

TUNISIA SPEC

48231BSPRING, COIL, REAR LH

main48231-0DC00iMXPA11..V202203

main48231-0DC10iMXPH11..V202203-202401

main48231-K0070iKSP211..G202007-202105

main48231-K0080iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main48231-K0090iMXPH11..G;MXPH11..R..CZEP202007

main48231-K0120iKSP211..LHD..(N,R)..FRP202007

EGYPT SPEC

main48231-K0130iMXPA11..LHD..CVT..N..FRP202007-202401

EGYPT SPEC

main48231-K0140iMXPH11..LHD..(N,R)..FRP202401

TUNISIA SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-K0030iKSP211..G202007-202105

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-K0030iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D010iKSP211..G202007-202105

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0DJ40iMXPA11..V202203

MARK 48530-0DJ40

main48530-0DJ50iMXPH11..V202203-202401

MARK 48530-0DJ50

main48530-0DJ70iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

MARK 48530-0DJ70

main48530-0DJ90iMXPH1#..N,S;MXPH11..R..FRP202401

MARK 48530-0DJ90

main48530-0DK10iMXPH1#..V202401

MARK 48530-0DK10

main48530-K0070iKSP211..RHD..R202007-202205

MARK 48530-K0070

main48530-K0080iMXPA11..RHD..G202007-202205

MARK 48530-K0080

main48530-K0090iMXPH11..N,S;MXPH11..LHD..R..FRP202007-202401

MARK 48530-K0090

main48530-K0120iKSP211..LHD..FRP;MXPH11..LHD..G..FRP202205

MARK 48530-K0120,TUNISIA SPEC

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0DJ40iMXPA11..V202203

MARK 48530-0DJ40

main48530-0DJ50iMXPH11..V202203-202401

MARK 48530-0DJ50

main48530-0DJ70iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

MARK 48530-0DJ70

main48530-0DJ90iMXPH1#..N,S;MXPH11..R..FRP202401

MARK 48530-0DJ90

main48530-0DK10iMXPH1#..V202401

MARK 48530-0DK10

main48530-K0070iKSP211..RHD..N;KSP211..LHD..(N,R)202007

MARK 48530-K0070

main48530-K0080iMXPA11..RHD..G202007-202205

MARK 48530-K0080

main48530-K0090iMXPH11..N,S;MXPH11..LHD..R..FRP202007-202401

MARK 48530-K0090

main48530-K0120iKSP211..LHD..FRP;MXPH11..LHD..G..FRP202205

MARK 48530-K0120,TUNISIA SPEC

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10138×2iKSP211..G202007-202105

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-K0030iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

48755SUPPORT, REAR SUSPENSION

main48755-K0020×2iKSP211,MXPA11,MXPH11202007-202010

main48755-K0021×2iKSP211..G202011-202105

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-K0030iKSP211..G202007-202105

9011910A10

main90119-10A10

9011914187

main90119-14187

90119W0363

main90119-W0363

9017810022

main90178-10022

9415121001

main94151-21001

9415121041

main94151-21041

19 parts on this diagram · 2 diagrams in section
