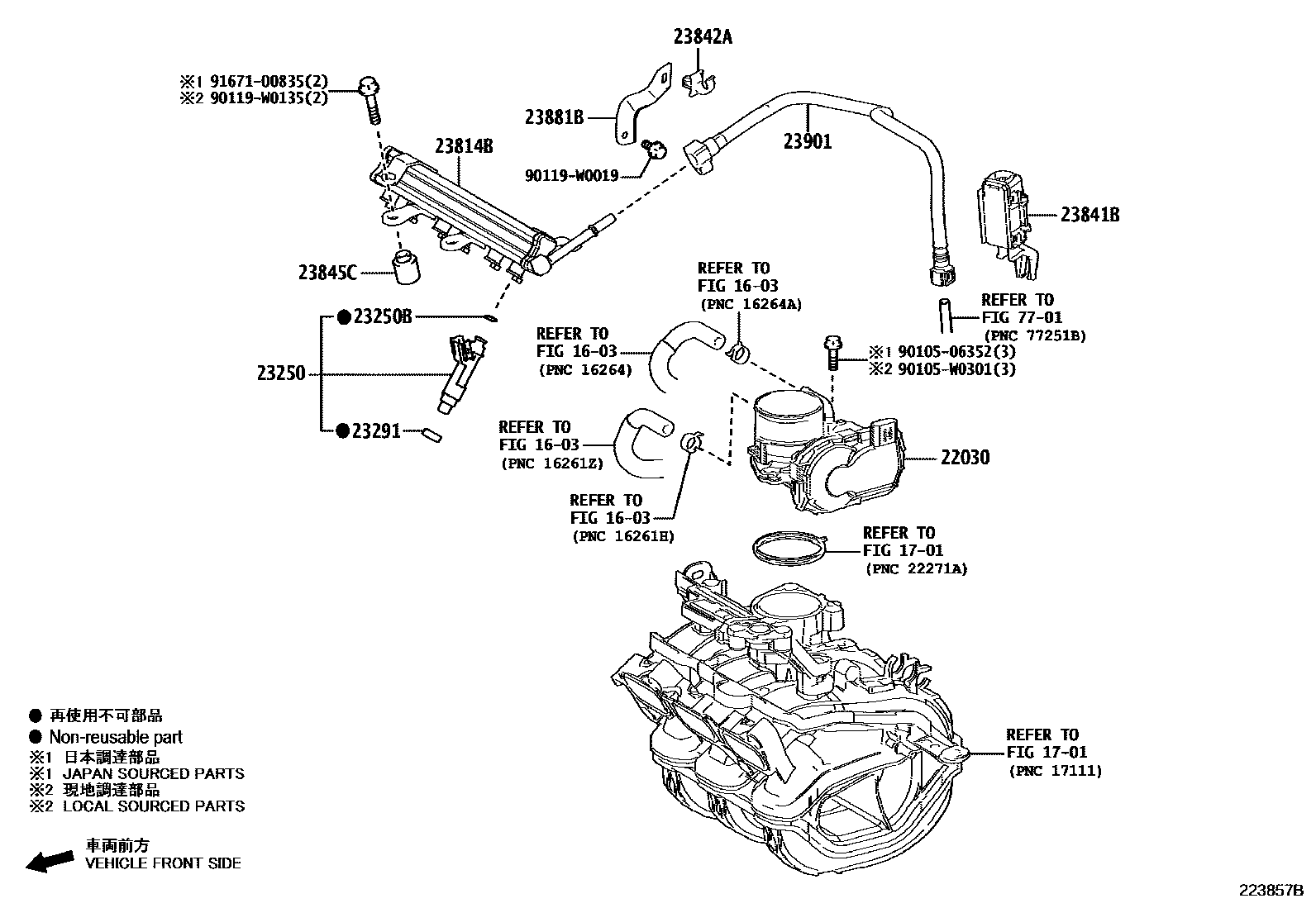

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Q040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main22030-15010iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007

*119

main22030-F3030iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401

*648

23250INJECTOR ASSY, FUEL

main23209-09420×6i1KRFE..KSP211..RHD..R202007-202205

main23209-19025×3iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007

*119

main23209-24010-01×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

MARK 1,(J)

main23209-24010-02×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

MARK 2,(J)

main23209-24010-03×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

MARK 3,(J)

main23209-24010-04×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202401

MARK 4,(J)

main23209-24010-05×3iM15AFKS..MXPA11..RHD..G202007-202205

MARK 5,(J)

main23209-24010-06×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

MARK 6,(J)

main23209-24010-07×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202401

MARK 7,(J)

main23209-24010-08×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 8,(J)

main23209-24010-09×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 9,(J)

main23209-F2050-01×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 1,(L)

main23209-F2050-02×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

MARK 2,(L)

main23209-F2050-03×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 3,(L)

main23209-F2050-04×3iM15AFKS..MXPA11..RHD..G202007-202205

MARK 4,(L)

main23209-F2050-05×3iM15AFKS..MXPA11..RHD..G202007-202205

MARK 5,(L)

main23209-F2050-06×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202401

MARK 6,(L)

main23209-F2050-07×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202401

MARK 7,(L)

main23209-F2050-08×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 8,(L)

main23209-F2050-09×3iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

MARK 9,(L)

main23209-F9050×3iM15AFXE..MXPH11..RHD..R202007-202205

*648

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main90301-07037×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

*648,*119

23291INSULATOR, INJECTOR VIBRATION

main23291-0D020×3iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648

main23291-0J020×6i1KRFE..KSP211..RHD..R202007-202205

(L)

main23291-23010×6i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

(J)

main23291-28020×3iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007

*119

23814BPIPE, FUEL DELIVERY

main23814-15070iM15AFKS..MXPA11..N,S,V;M15AFKS..MXPA11..LHD..G202007-202207

main23814-15071iM15AFKS..MXPA11..G,S,V;M15AFKS..MXPA11..RHD..CVT..N202208

main23814-15080iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

*648,*119

main23814-15090iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP; M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119; *648

main23814-40050i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-15030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R; M15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-47050×2i1KRFE..KSP211..RHD..R; M15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202205

23845CINSULATOR, FUEL PIPE

main23845-40010×2i1KRFE..KSP211..RHD..R202007-202205

23881BBRACKET, FUEL HOSE

main23881-K0030i1KRFE..KSP211..RHD..R202007-202205

23901TUBE SUB-ASSY, FUEL

main23901-K0060iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

main23901-K0070iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

main23901-K0080i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506352

main90105-06352

90105W0301

main90105-W0301

90119W0019

main90119-W0019

90119W0135

main90119-W0135

9167100835

main91671-00835
