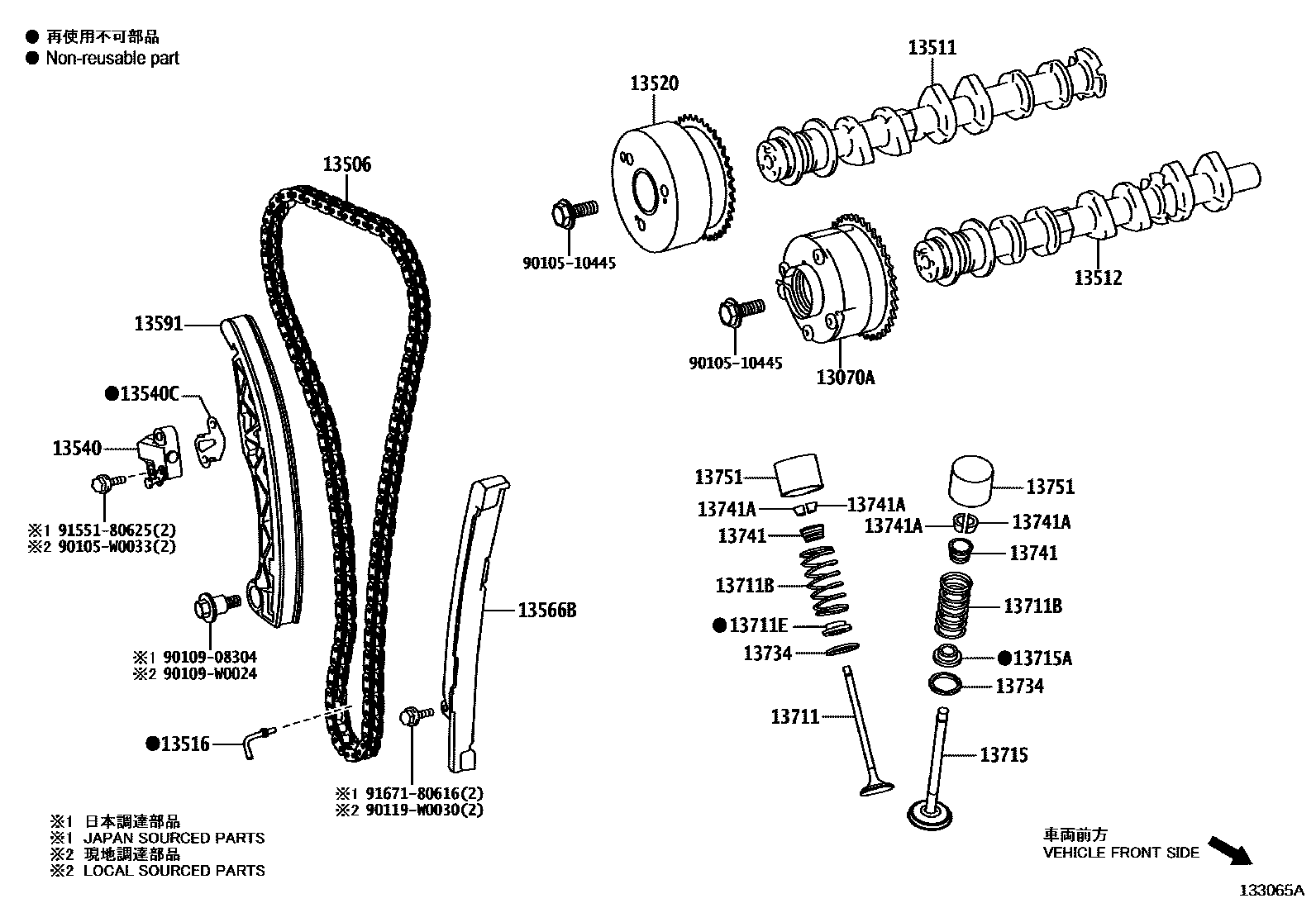

CAMSHAFT & VALVE
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*648,REFER PNC135A0B; REFER TO PNC 135A0B
main13070-25030iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N; M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202112-202401
(J); (J),*648
main13070-F2040iM15AFKS..MXPA11..G,S,V;M15AFKS..MXPA11..RHD..CVT..N; M15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202301
(L); (L),*648
13506CHAIN SUB-ASSY
*119
main13506-F2030iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401
*648
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
*119
main13540-F3020iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007
*648
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
main13711-24040×6iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N; M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202104-202401
(J); (J),*648
main13711-F2050×6iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N; M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202104-202401
(L); (L),*648
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
main90080-31061×6iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S); M15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007
*648
(L)
(J)
*119
13715VALVE, EXHAUST
*119
main13715-24040×6iM15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S); M15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202104
(J); (J),*648
(L)
(L),*648
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
*119
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
main90913-03028×24iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP; M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401
*119
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
9010510445
main90105-10445
90105W0033
main90105-W0033
9010908304
main90109-08304
90109W0024
main90109-W0024
90119W0030
main90119-W0030
9155180625
main91551-80625
9167180616
main91671-80616
26 parts on this diagram · 3 diagrams in section
