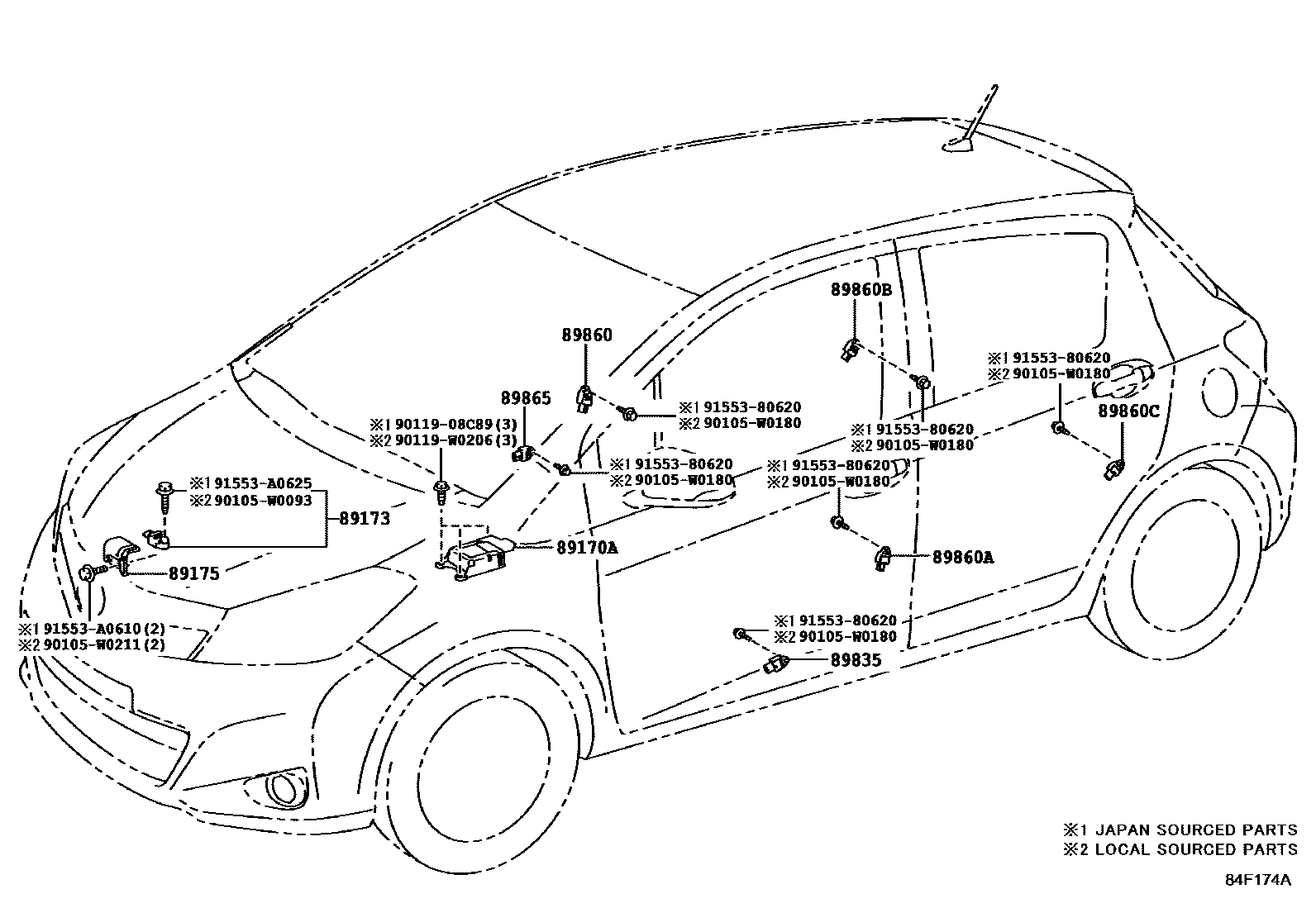

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173SENSOR, AIRBAG, FRONT
89175BRACKET, AIRBAG SENSOR
89835SENSOR, DOOR SIDE AIRBAG, LH
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
SRS AIR BAG-W(*DRP & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&VSC-WITHOUT
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
SRS AIR BAG-W(*DRP & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE)
main89831-0D090iKSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S)201407-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
VSC-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
SRS AIR BAG-W(*DRP & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&VSC-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
VSC-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
89865SENSOR, DOOR SIDE AIRBAG, RH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
SRS AIR BAG-W(*DRP & SIDE)
90105W0093
main90105-W0093
90105W0180
main90105-W0180
90105W0211
main90105-W0211
9011908C89
main90119-08C89
90119W0206
main90119-W0206
9155380620
main91553-80620
91553A0610
main91553-A0610
91553A0625
main91553-A0625
17 parts on this diagram · 1 diagram in section
