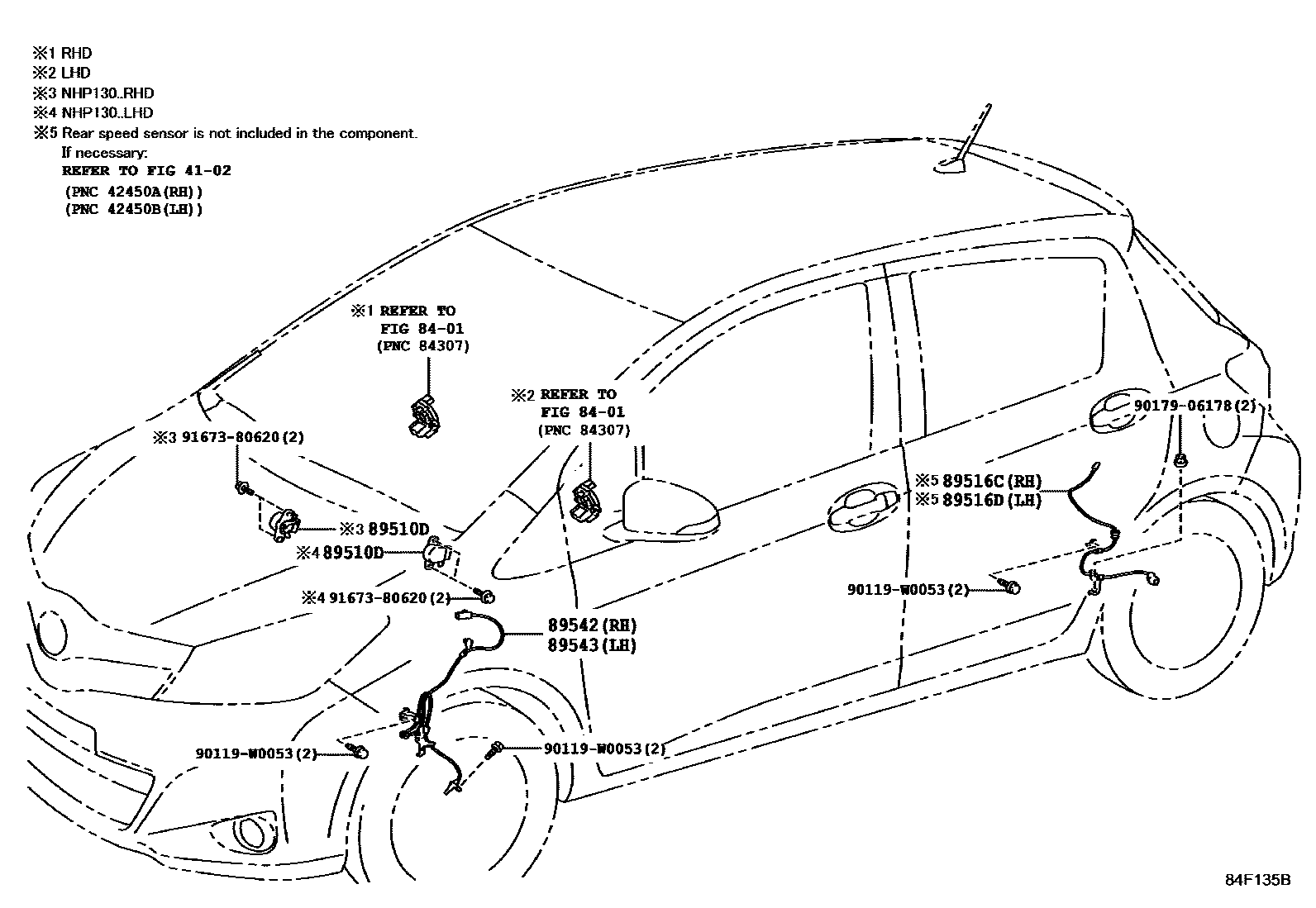

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iNHP130..RHD201407-202006

main89510-33030iNHP130..LHD201407-202006

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0D130iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

main89516-0D310iNHP130201407-202006

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0D140iKSP130,NLP130,NSP131201407-202006

main89516-0D320iNHP130201407-202006

89542SENSOR, SPEED, FRONT RH

main89542-0D050iKSP130,NLP130,NSP131201407-202006

main89542-0D060iNHP130201407-202006

89543SENSOR, SPEED, FRONT LH

main89543-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

main89543-0D090iNHP130201407-202006

90119W0053

main90119-W0053

9017906178

main90179-06178

9167380620

main91673-80620

10 parts on this diagram · 1 diagram in section
