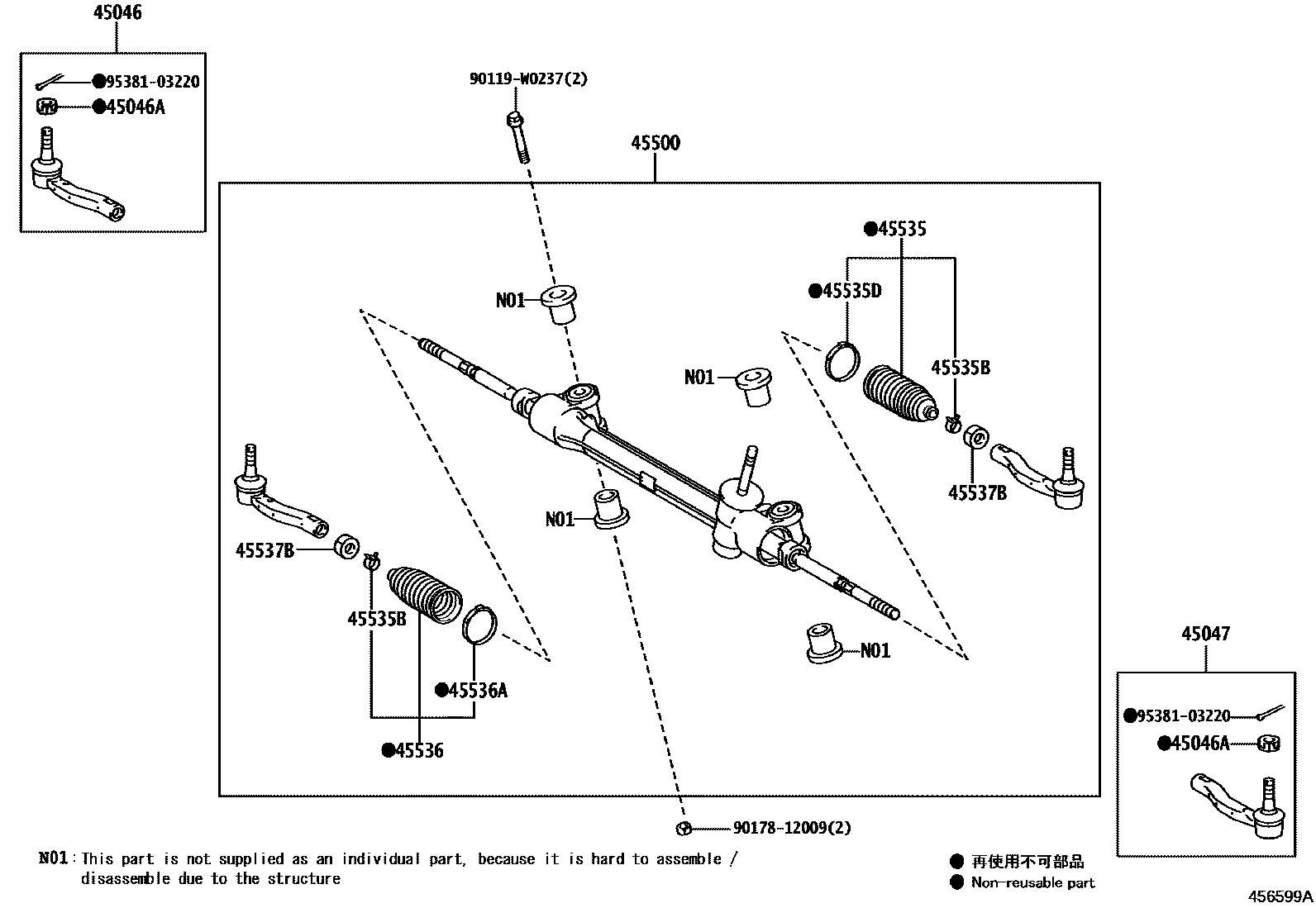

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09480iNHP130..LHD..G;NLP130..RHD..S;NHP130,NSP131..S201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main45046-09480iNHP130..G201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

main45046-09480iNHP130..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main45046-09480iNHP130..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main45046-09480iNHP130..G201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

main45046-09480iKSP130,NHP130,NLP130,NSP130..N,R201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC

main45046-09480iNHP130..G;NLP130,NSP130..5D..S201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

main45046-09480iNLP130..S201805-202006

main45046-09480iNHP130..G;NLP130,NSP130..5D..S201407-201703

TIRE & DISC WHEEL-175/65R15 5J ALUMINUM

main45046-09700iNHP130..N201407-201605

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45046-09700iNHP130..N201407-201605

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45046-09700iKSP130,NLP130,NSP130..G201511-201605

main45046-09860iKSP130,NHP130,NLP130,NSP130..G,S201605-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45046-09860iKSP130,NHP130,NLP130,NSP130..G,S201605-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45046-09860iNLP130..LHD..S201703-201805

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main45046-09860iNLP130..LHD..S201703-202006

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

45047END SUB-ASSY, TIE ROD, LH

main45046-09700iKSP130,NLP130,NSP130..G201511-201605

main45046-09700iNLP130,NSP130..3D..S201407-201605

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45046-09700iNHP130..G;NLP130,NSP130..5D..S201407-201605

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45046-09860iKSP130,NHP130,NLP130,NSP130..N201605-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45046-09860iKSP130,NHP130,NLP130,NSP130..N201605-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45046-09860iNSP131..S;NHP130..G,S;NLP130..RHD..S201703-202006

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main45046-09860iNLP130..LHD..(G,N)201703-201805

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main45047-09220iNHP130..LHD..G;NLP130..RHD..S;NHP130,NSP131..S201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main45047-09220iKSP130,NLP130,NSP130..G201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

main45047-09220iKSP130,NHP130,NLP130,NSP130..N,R201407-201703

TIRE & DISC WHEEL-175/65R15 5J ALUMINUM

main45047-09220iKSP130,NHP130,NLP130,NSP130..N,R201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC

main45047-09220iNHP130..N;KSP130,NLP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main45047-09220iNHP130..N;KSP130,NLP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main45047-09220iNHP130..N;KSP130,NLP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

main45047-09220iNHP130..N;KSP130,NLP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

main45047-09220iNLP130..S201805-202006

45500LINK ASSY, STEERING

main45500-0D271iNHP130..LHD..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main45500-0D271iKSP130,NHP130,NLP130,NSP130..LHD..(N,R)201407-201703

TIRE & DISC WHEEL-175/65R15 5J ALUMINUM

main45500-0D271iNHP130..LHD..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main45500-0D271iNHP130..LHD..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main45500-0D271iKSP130,NLP130,NSP130..LHD..G201407-201511

main45500-0D280iNHP130..LHD..N201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45500-0D280iNHP130..LHD..G;NLP130,NSP130..LHD..5D..S201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45500-0D280iKSP130,NLP130,NSP130..LHD..G201511-201703

main45500-0D280iNLP130..LHD..S201703-201805

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main45500-0D280iNLP130..LHD..S201703-202006

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main45500-0D291iNLP130201805-201812

main45500-0D301iNHP130..RHD..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main45500-0D301iNHP130..RHD..G201407-201703

TIRE & DISC WHEEL-175/65R15 5J ALUMINUM

main45500-0D301iKSP130,NLP130,NSP130..RHD..G201407-201511

main45500-0D301iNHP130..RHD..N;KSP130,NLP130,NSP131..RHD..(G,N,R)201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main45500-0D301iNHP130..RHD..N;KSP130,NLP130,NSP131..RHD..(G,N,R)201703-202006

TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main45500-0D310iNLP130,NSP130..RHD..3D..S201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main45500-0D310iKSP130,NLP130,NSP130..RHD..G201511-201703

main45500-0D310iNHP130..RHD..N201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main45500-0D310iNHP130..RHD..N201703-202006

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

45535BOOT, STEERING RACK, NO.1

main45535-09240iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050iKSP130,NHP130,NLP130,NSP131201407-202006

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

45536BOOT, STEERING RACK, NO.2

main45535-09240iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iKSP130,NHP130,NLP130,NSP131201407-202006

45537BNUT, RACK END LOCK

main90178-15003iNHP130..N201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM

main90178-15003iKSP130,NHP130,NLP130,NSP130..N201407-201703

TIRE & DISC WHEEL-195/50R16 6J ALUMINUM BLACK

main90178-15003iNSP131..S;NHP130..G,S;NLP130..RHD..S201703-202006

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main90178-15003iKSP130,NLP130,NSP130..G201511-201703

main90178-15003iNLP130..LHD..S201703-201805

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main90179-14019iNHP130..G201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main90179-14019iNHP130..G201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

main90179-14019iNHP130..G201703-202006

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

main90179-14019iNHP130..LHD..G;NLP130..RHD..S;NHP130,NSP131..S201703-202006

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main90179-14019iNHP130..LHD..G;NLP130..RHD..S;NHP130,NSP131..S201703-202006

TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main90179-14019iNLP130..S201805-202006

main90179-14019iKSP130,NLP130,NSP130..G201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

main90179-14019iKSP130,NHP130,NLP130,NSP130..N,R201407-201703

TIRE & DISC WHEEL-175/65R15 5J ALUMINUM

main90179-14019iKSP130,NHP130,NLP130,NSP130..N,R201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC

90119W0237

main90119-W0237

9017812009

main90178-12009

9538103220

main95381-03220

13 parts on this diagram · 2 diagrams in section
