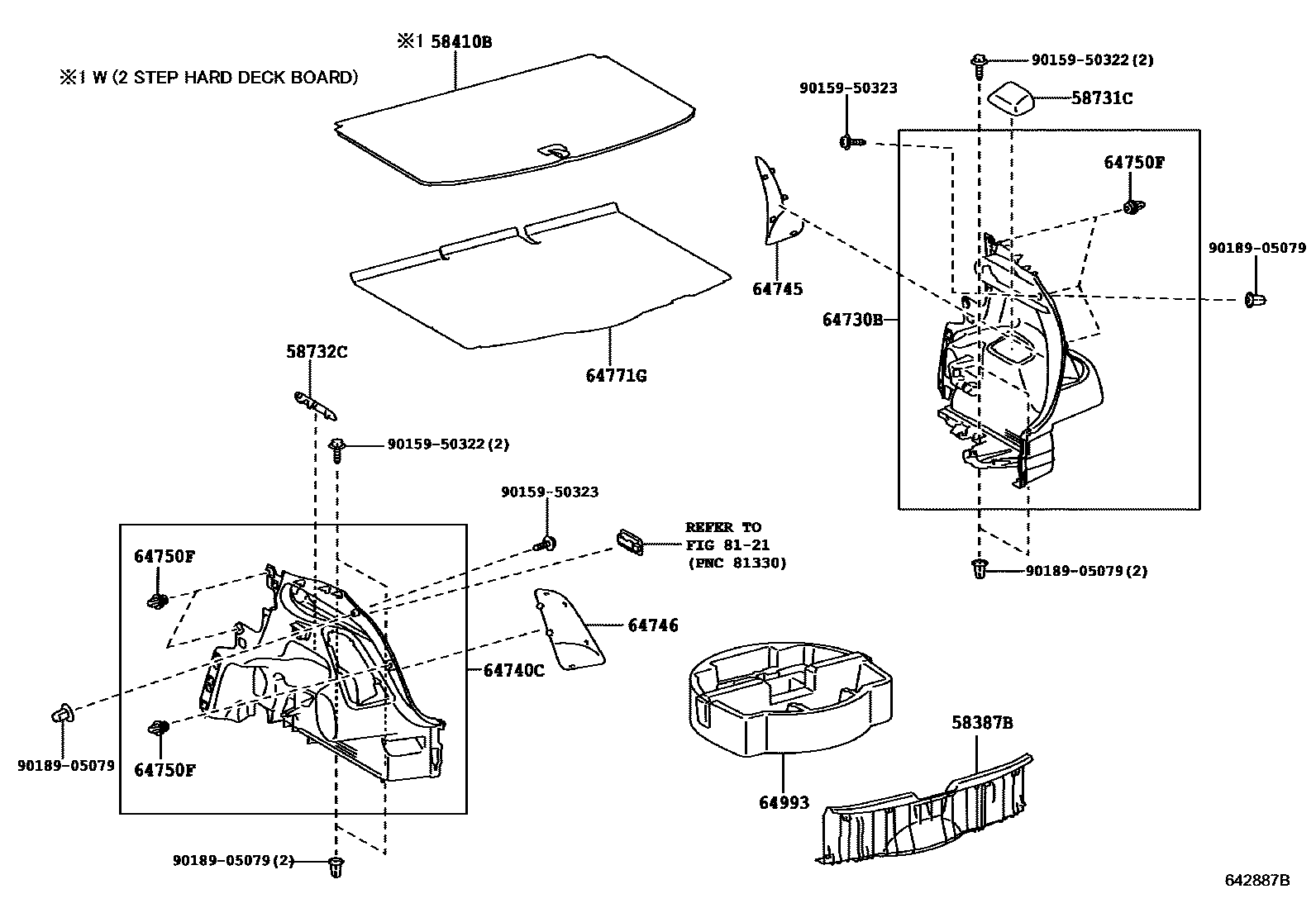

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#
58410BBOARD ASSY, DECK
main58410-0D050-B0iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE; KSP130,NLP130,NSP130..(5F,6F,CVFC)..ACTIV; KSP130,NLP130,NSP130..ACTIV; KSP130,NLP130,NSP130..STD; KSP130..STD;NLP130..LHD..STD;NSP130..RHD..STD201107-201407
DARK GRAY,TRIM1#; N1 PACKAGE&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITH,DARK GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D15)&TRUNK & DECK CARPET & MAT-2STEP HARD DECK BOARD,DARK GRAY,TRIM1#; SPARE TIRE-TEMPORARY(T125/70D16)&TRUNK & DECK CARPET & MAT-2STEP HARD DECK BOARD,DARK GRAY,TRIM1#; TRUNK & DECK CARPET & MAT-2STEP HARD DECK BOARD,DARK GRAY,TRIM1#
58731CCAP, REAR ABSORBER
BLACK,TRIM1#
58732CCAP, REAR ABSORBER
BLACK,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64771GCOVER, SPARE WHEEL
main64771-0D150-B0iKSP130,NLP130,NSP130; KSP130,NLP130,NSP130..(5F,6F,CVFC)..ACTIV; KSP130,NLP130,NSP130..ACTIV; KSP130,NLP130,NSP130..STD201107-201407
DARK GRAY,TRIM1#; N1 PACKAGE&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#
DARK GRAY,TRIM1#; HV SIMPLE PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITH,DARK GRAY,TRIM1#; HV SIMPLE PACKAGE&SPARE TIRE-REPAIR KIT FOR DOP&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16),DARK GRAY,TRIM1#; HV SIMPLE PACKAGE&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD),DARK GRAY,TRIM1#; HV SIMPLE PACKAGE,DARK GRAY,TRIM1#
64993BOX, DECK FLOOR, REAR
main64993-0D030iKSP130,NHP130,NLP130,NSP130; KSP130,NLP130,NSP130..(5F,6F,CVFC)..ACTIV; KSP130,NLP130,NSP130..ACTIV; KSP130,NLP130,NSP130..STD; NHP130..ACTIV201304-201406
HV SIMPLE PACKAGE; HV SIMPLE PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITH; HV SIMPLE PACKAGE&SPARE TIRE-REPAIR KIT FOR DOP&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16); HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); HV SIMPLE PACKAGE&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); N1 PACKAGE&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD)
main64993-0D040iKSP130,NHP130,NLP130,NSP130; KSP130,NLP130,NSP130..(5F,6F,CVFC)..ACTIV; KSP130,NLP130,NSP130..ACTIV; KSP130,NLP130,NSP130..STD; NHP130..ACTIV201406-201407
HV SIMPLE PACKAGE; HV SIMPLE PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITH; HV SIMPLE PACKAGE&SPARE TIRE-REPAIR KIT FOR DOP&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16); HV SIMPLE PACKAGE&SPARE TIRE-TEMPORARY(T125/70D16)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); HV SIMPLE PACKAGE&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); N1 PACKAGE&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD)
main64993-52120iKSP130,NLP130,NSP130..(5F,6F,CVFC)..ACTIV; KSP130,NLP130,NSP130..ACTIV; KSP130,NLP130,NSP130..ACTIV,LOUNG,STD; KSP130,NLP130,NSP130..STD201107-201201
N1 PACKAGE&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL); N1 PACKAGE&SPARE TIRE-GROUND TIRE (STEEL)&TRUNK & DECK CARPET & MAT-WITHOUT(DECK BOARD)
8121INTERIOR LAMP
9015950322
main90159-50322
9015950323
main90159-50323
9018905079
main90189-05079
15 parts on this diagram · 5 diagrams in section
