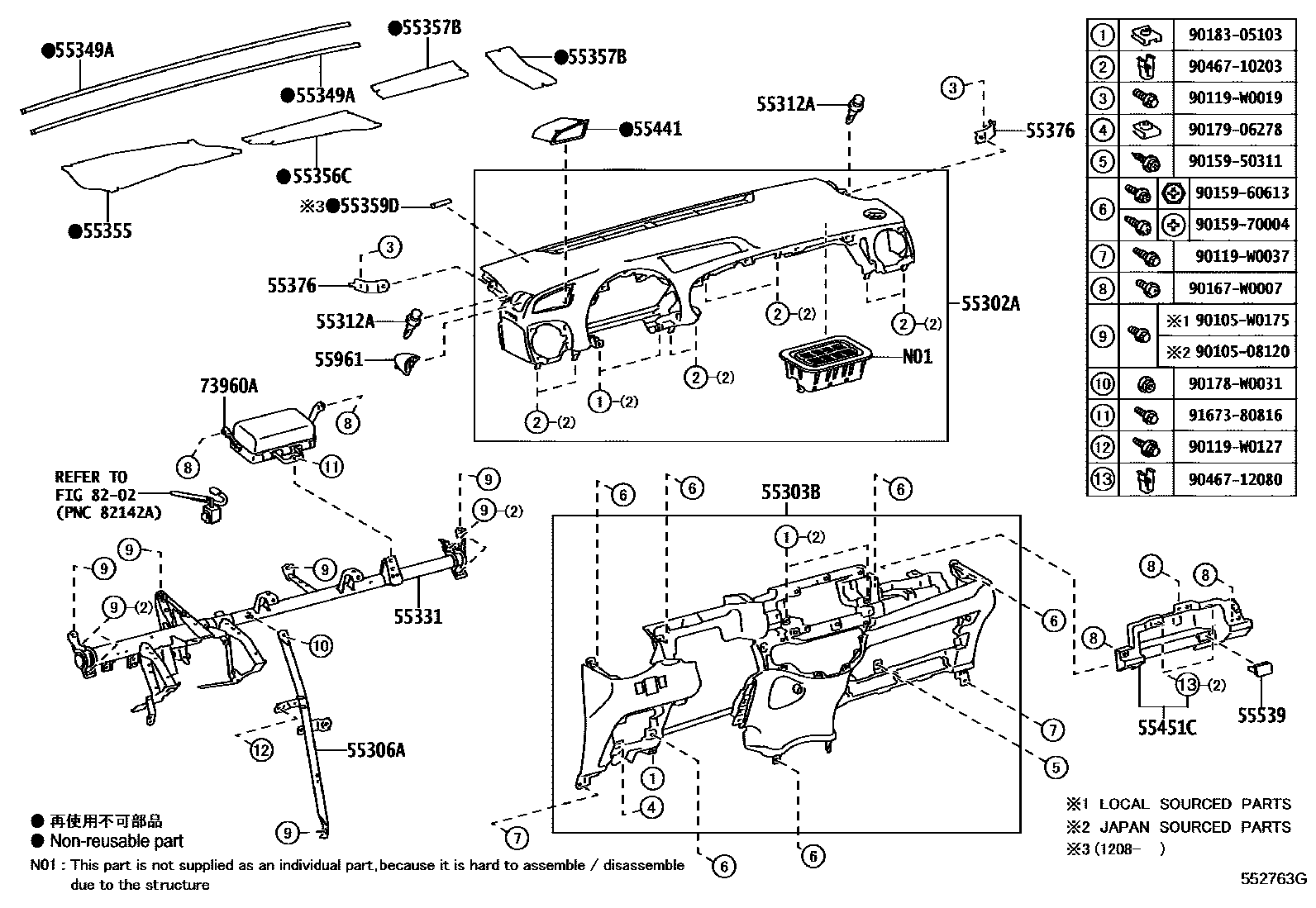

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D160-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main55302-0D170-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D120-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main55303-0D140-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D170iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

main55306-0D180iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

55312ACLIP, INSTRUMENT PANEL

main52161-16010iKSP130,NHP130,NLP130,NSP130201107-201407

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D400iKSP130,NHP130,NLP130,NSP130..RHD201107

main55330-0D420iKSP130,NLP130,NSP130..LHD201107

main55330-0D440iNHP130..LHD201204

55349ACUSHION, INSTRUMENT PANEL

main55355-0D031iKSP130,NHP130,NLP130,NSP130201107

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D120iKSP130,NHP130,NLP130,NSP130201107

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D120iKSP130,NHP130,NLP130,NSP130201107

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D150iKSP130,NHP130,NLP130,NSP130201107

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-0D150iKSP130,NHP130,NLP130,NSP130..LHD201208

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0D030iKSP130,NHP130,NLP130,NSP130201107

55441BOX, INSTRUMENT PANEL

main55441-0D120-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main55441-0D160-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0D110-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main55451-0D120-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

BLACK,TRIM1#

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM1#

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

HEATER CONTROL PANEL-MANUAL,BLACK,TRIM1#

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

HEATER CONTROL PANEL-MANUAL+PLATING,BLACK,TRIM1#

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1#

main55539-52070-C0iNHP130;KSP130,NLP130,NSP130..LOUNG;KSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE)201107-201407

AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-0D010-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main55961-0D020-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D110iKSP130,NHP130,NLP130,NSP130201107-201305

main73960-0D111iKSP130,NHP130,NLP130,NSP130201305

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

90105W0175

main90105-W0175

90119W0019

main90119-W0019

90119W0037

main90119-W0037

90119W0127

main90119-W0127

9015950311

main90159-50311

9015960613

main90159-60613

9015970004

main90159-70004

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9017906278

main90179-06278

9018305103

main90183-05103

9046710203

main90467-10203

9046712080

main90467-12080

9167380816

main91673-80816

32 parts on this diagram · 8 diagrams in section
