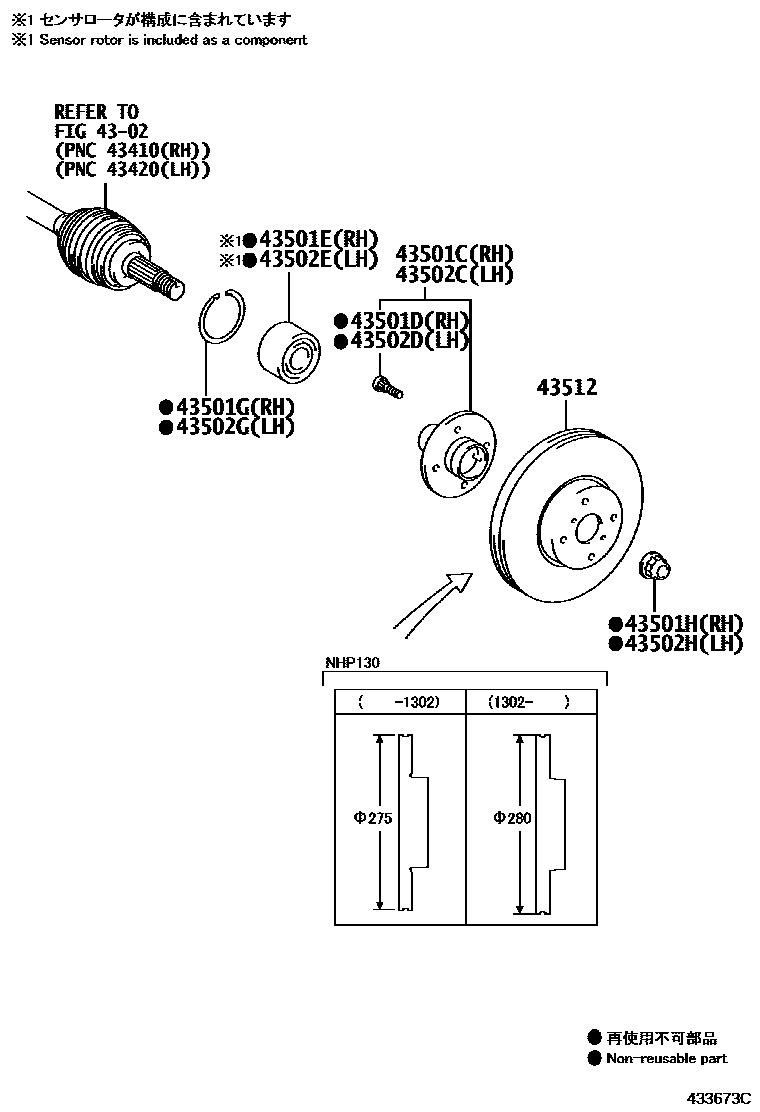

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D100iKSP130,NHP130,NLP130,NSP130201107-201305

main43502-0D101iKSP130,NHP130,NLP130,NSP130201306-201407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iKSP130,NHP130,NLP130,NSP130201107

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-W0005iKSP130,NHP130,NLP130,NSP130201107

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKSP130,NHP130,NLP130,NSP130201107

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP130,NHP130,NLP130,NSP130201107

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D100iKSP130,NHP130,NLP130,NSP130201107-201305

main43502-0D101iKSP130,NHP130,NLP130,NSP130201306

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iKSP130,NHP130,NLP130,NSP130201107

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-W0005iKSP130,NHP130,NLP130,NSP130201107

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKSP130,NHP130,NLP130,NSP130201107

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP130,NHP130,NLP130,NSP130201107

43512DISC, FRONT

main43512-0D060×2iKSP130,NLP130,NSP130201107-201407

main43512-0D210×2iNHP130201302-201407

main43512-52130×2iNHP130201204-201302

12 parts on this diagram · 1 diagram in section
