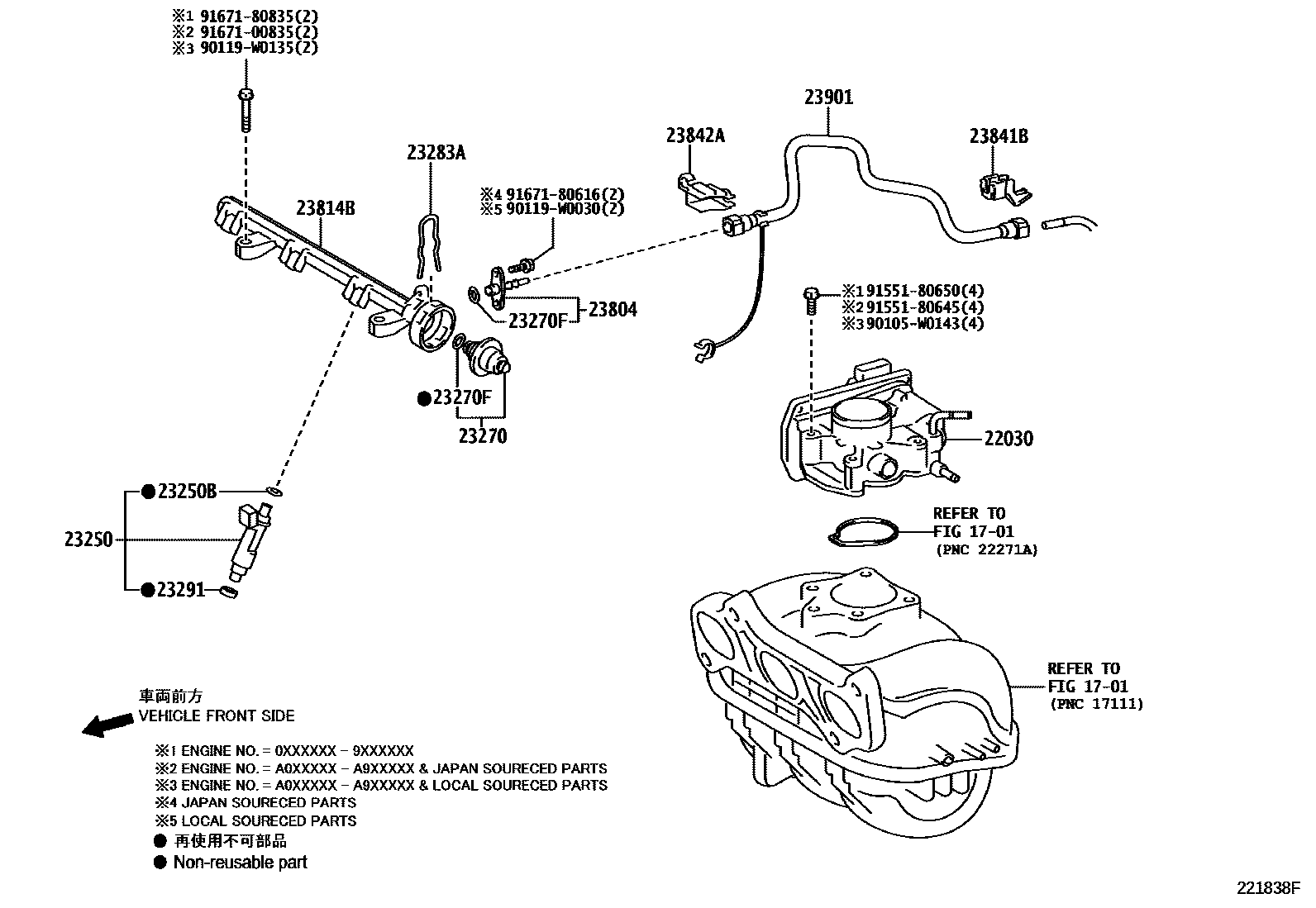

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Q020i1KRFE..KSP130201107-201407

main22030-47010i1NRFE..NSP130201107

main22030-47040i1NZFXE..NHP130201204

23250INJECTOR ASSY, FUEL

main23209-09210×3i1KRFE..KSP130201107-201404

*132

main23209-21040×4i1NZFXE..NHP130201204-201210

main23209-21091×4i1NZFXE..NHP130201210

main23209-49205×4i1NRFE..NSP130201107

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×3i1KRFE..KSP130201107-201407

main90301-07037×4i1NZFXE..NHP130201204

main90301-07042×4i1NRFE..NSP130201107

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-40010i1KRFE..KSP130201107-201407

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033×2i1KRFE..KSP130201107-201407

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-40010i1KRFE..KSP130201107-201407

23291INSULATOR, INJECTOR VIBRATION

main23291-0J020×3i1KRFE..KSP130201107-201407

*138,(L)

main23291-23010×4i1NZFXE,1NRFE..NHP130,NSP130201107

main23291-87701×3i1KRFE..KSP130201107-201404

*132

23804PIPE SUB-ASSY, FUEL, NO.4

main23804-40010i1KRFE..KSP130201107-201407

23814BPIPE, FUEL DELIVERY

main23814-0Q010i1KRFE..KSP130201107-201407

(L)

main23814-21073i1NZFXE..NHP130201204-201407

main23814-40010i1KRFE..KSP130201107-201407

(J)

main23814-47020i1NRFE..NSP130201107-201407

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1KRFE..KSP130; 1NZFXE,1NRFE..NHP130,NSP130201107-201407

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0Q010i1KRFE..KSP130201107

23901TUBE SUB-ASSY, FUEL

main23901-0M020i1NZFXE..NHP130201204-201407

main23901-0Q050i1KRFE..KSP130201107-201407

main23901-0Y050i1NRFE..NSP130201107-201407

90105W0143

main90105-W0143

90119W0030

main90119-W0030

90119W0135

main90119-W0135

9155180645

main91551-80645

9155180650

main91551-80650

9167100835

main91671-00835

9167180616

main91671-80616

9167180835

main91671-80835

21 parts on this diagram · 3 diagrams in section
