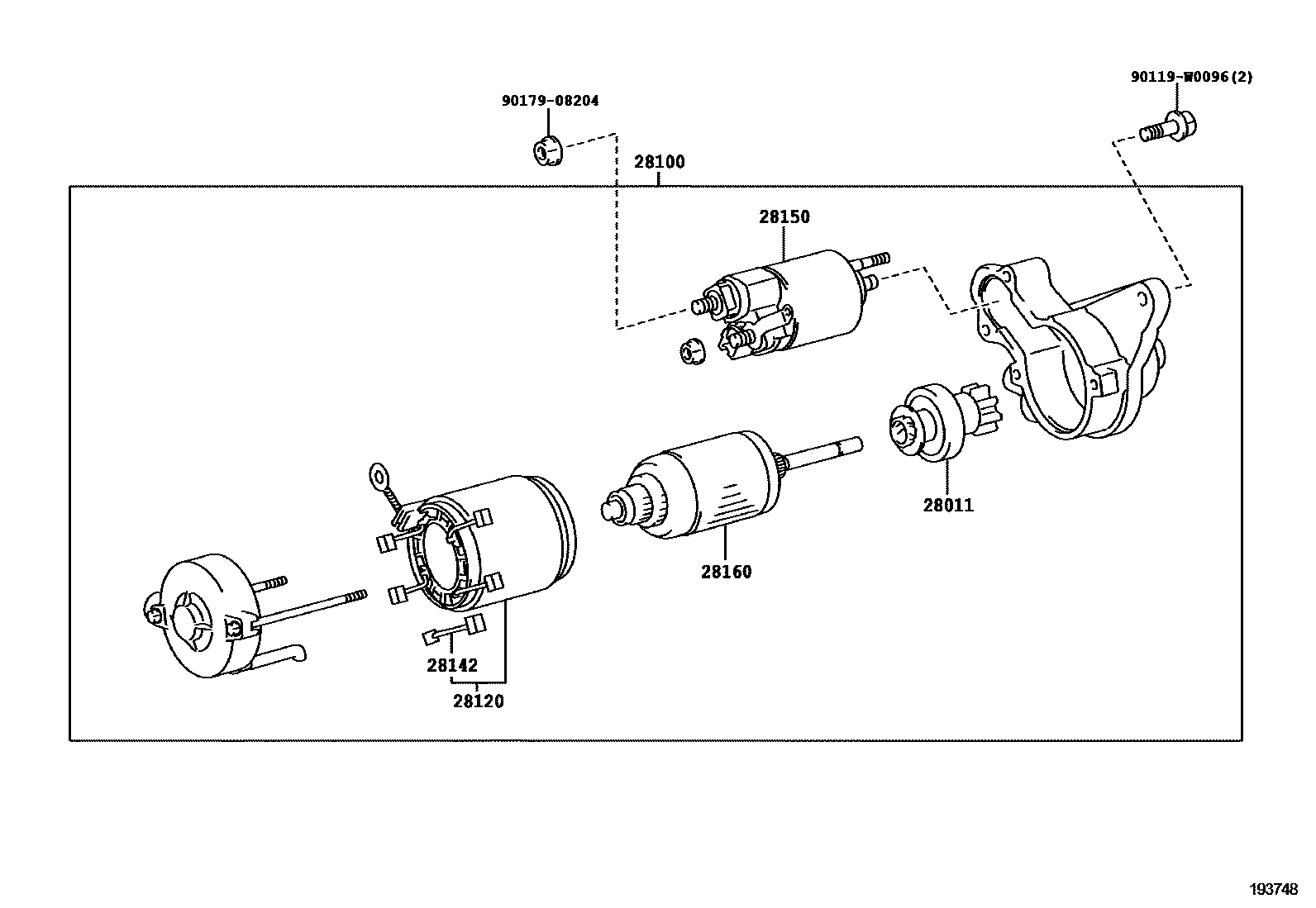

STARTER

0001 112V 0.8KW 0002 112V 1.3KW 0003 112V 1.6KW 0004 112V 2.0KW 0005 112V 1.0KW,1.2KW 0006 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-40070i1KRFE..KSP130201107

28100STARTER ASSY

main28100-0N040i1NDTV..NLP130201107-201407

12V 1.6KW

main28100-0Q080i1KRFE..KSP130201107-201406

12V 0.8KW

main28100-0Y110i1NRFE..NSP130201107-201407

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-33110i1NDTV..NLP130201107

main28120-40120i1KRFE..KSP130201107

main28120-47110i1NRFE..NSP130201107

28142BRUSH, STARTER

main28142-10020i1KRFE..KSP130201107

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i1NDTV..NLP130201107

main28150-40070i1KRFE..KSP130201107

28160ARMATURE ASSY, STARTER

main28160-33090i1NDTV..NLP130201107

main28160-40070i1KRFE..KSP130201107

main28180-47110i1NRFE..NSP130201107

90119W0096

main90119-W0096

9017908204

main90179-08204

8 parts on this diagram · 6 diagrams in section
