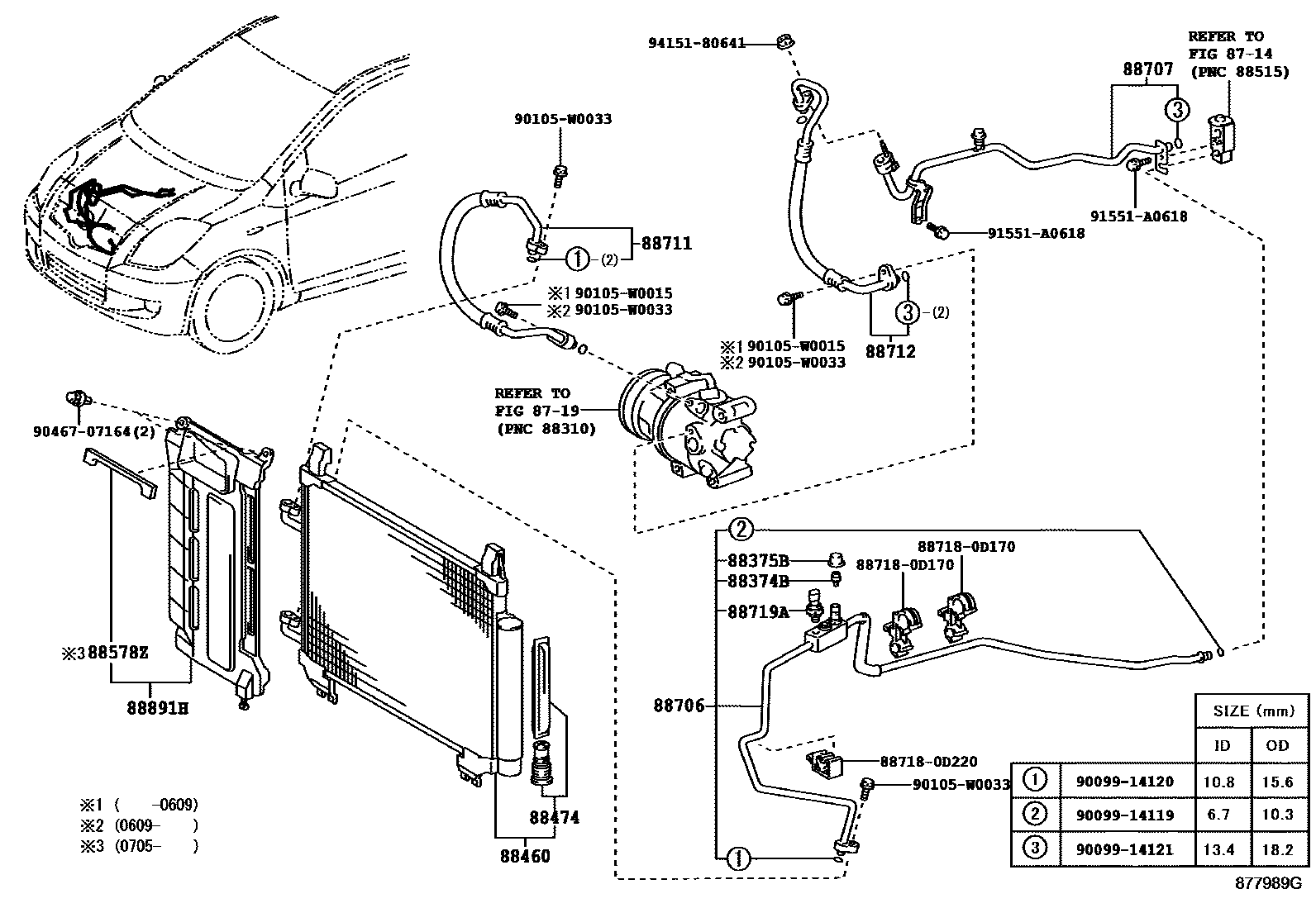

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1DEALER OPTION 0004 1DEALER OPTION 0005 1 0006 1DEALER OPTION 0007 1DEALER OPTION & W(POWER HEATE0008 1 0009 1DEALER OPTION 0010 1DEALER OPTION & W(POWER HEATE0011 1 0012 1DEALER OPTION 0013 1 0014 1DEALER OPTION

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88374-30010iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

FRONT AIR CONDITIONER-W/O

main88374-30010iKSP90,NLP90,SCP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88374-30010iKSP90,NLP90,SCP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-MANUAL

main88374-30010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88374-30010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88374-30010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88374-30010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88375-30280iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-MANUAL

main88375-30280iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88375-30280iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

88460CONDENSER ASSY, COOLER

main88460-0D050iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88460-0D050iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88460-0D050iKSP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88460-0D050iKSP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-MANUAL

main88460-0D050iKSP90,SCP90..FRP..LHD200511-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88460-0D050iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88460-0D050iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88460-0D060iNLP90..FRP..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88460-0D060iNLP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88460-0D060iNLP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88460-0D060iNLP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88460-0D060iNLP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-MANUAL

main88460-0D060iNLP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88460-0D060iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88460-0D060iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

88474DRYER, COOLER

main88474-17010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88474-17010iKSP90,NLP90,SCP90..FRP..SOL200511-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88474-17010iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88474-17010iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88474-17010iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88474-17010iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-MANUAL

main88474-17010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88474-17010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

88578ZPACKING, COOLER, NO.1

main88578-0D070iKSP90..FRP;SCP90..FRP..SOL200705-200811

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL

main88578-0D070iKSP90..FRP;SCP90..FRP..SOL200705-200811

COLD SPEC, WITH(REAR HEATER DUCT)

main88578-0D070iKSP90..FRP;SCP90..FRP..SOL200705-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL

main88578-0D070iKSP90..FRP;SCP90..FRP..SOL200705-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88578-0D070iKSP90..FRP;SCP90..FRP..SOL200705-200811

FRONT AIR CONDITIONER-MANUAL

main88578-0D070iSCP90..FRP..LHD..TRSTD200705-200811

COLD SPEC, WITH OUT(REAR HEATER DUCT)

88706PIPE SUB-ASSY, LIQUID

main88706-0D190iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88706-0D190iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88706-0D190iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88706-0D190iKSP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88706-0D191iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88706-0D191iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88706-0D191iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88706-0D191iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

main88706-0D200iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88706-0D200iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88706-0D200iNLP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88706-0D200iNLP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-MANUAL

main88706-0D200iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88706-0D200iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

88707PIPE SUB-ASSY, SUCTION

main88707-0D060iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88707-0D060iSCP90..FRP..LHD200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88707-0D060iSCP90..FRP..LHD200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88707-0D060iSCP90..FRP..LHD200511-200811

FRONT AIR CONDITIONER-W/O

main88707-0D060iSCP90..FRP..LHD200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88707-0D070iKSP90..FRP..TRSTD200511-200811

FRONT AIR CONDITIONER-MANUAL

main88707-0D070iKSP90..FRP..SOL200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88707-0D070iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88707-0D070iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88707-0D070iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88707-0D071iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88707-0D071iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88707-0D071iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88707-0D071iKSP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

main88707-0D071iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88707-0D080iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88707-0D080iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88707-0D080iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88707-0D080iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88707-0D200iNLP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88707-0D200iNLP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-MANUAL

main88707-0D200iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88707-0D200iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D120iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88711-0D120iSCP90..FRP..SOL200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D120iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88711-0D120iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D120iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88711-0D130iKSP90..FRP..SOL200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D130iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88711-0D130iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88711-0D130iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D130iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88711-0D131iKSP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D131iKSP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D131iKSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88711-0D131iKSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88711-0D131iKSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

main88711-0D140iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D140iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88711-0D140iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88711-0D140iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88711-0D250iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88711-0D250iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88711-0D250iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D250iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

main88711-0D250iNSP90..FRP..LHD..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D260iNLP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88711-0D260iNLP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D260iNLP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88711-0D260iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88711-0D260iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88711-0D260iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D160iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88712-0D160iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88712-0D160iSCP90..FRP..LHD200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88712-0D160iSCP90..FRP..LHD200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88712-0D160iSCP90..FRP..LHD200511-200811

FRONT AIR CONDITIONER-W/O

main88712-0D170iKSP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-MANUAL

main88712-0D170iKSP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88712-0D170iKSP90..FRP..SOL200511-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88712-0D170iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88712-0D170iKSP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88712-0D170iKSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88712-0D170iKSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88712-0D180iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88712-0D180iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88712-0D180iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88712-0D180iNLP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88712-0D330iNSP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88712-0D330iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88712-0D330iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88712-0D330iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

main88712-0D330iNSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-MANUAL

main88712-0D340iNLP90..FRP..LHD..TRSTD200811-201107

FRONT AIR CONDITIONER-MANUAL

main88712-0D340iNLP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88712-0D340iNLP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88712-0D340iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88712-0D340iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

main88712-0D340iNLP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-DEALER KIT

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNLP90..FRP..LHD..TRSTD200511-201107

FRONT AIR CONDITIONER-DEALER KIT

main88719-33020iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main88719-33020iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-MANUAL

main88719-33020iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88719-33020iKSP90,NLP90,NSP90..FRP..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88719-33020iKSP90,NLP90,NSP90..FRP..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT

main88719-33020iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88719-33020iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-WITHOUT

88891HCOVER, COOLER, NO.1

main88891-0D060iKSP90..FRP200511-200811

main88891-0D070iSCP90..FRP..SOL200511-200811

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL

main88891-0D070iSCP90..FRP..SOL200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)

main88891-0D070iSCP90..FRP..SOL200511-200811

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL

main88891-0D070iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main88891-0D070iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main88891-0D070iSCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main88891-0D070iSCP90..FRP..LHD..TRSTD200511-200811

COLD SPEC, WITH OUT(REAR HEATER DUCT)

887180D170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D170

887180D220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105W0015

main90105-W0015

90105W0033

main90105-W0033

9046707164

main90467-07164

91551A0618

main91551-A0618

9415180641

main94151-80641

23 parts on this diagram · 14 diagrams in section
