WIRELESS DOOR LOCK

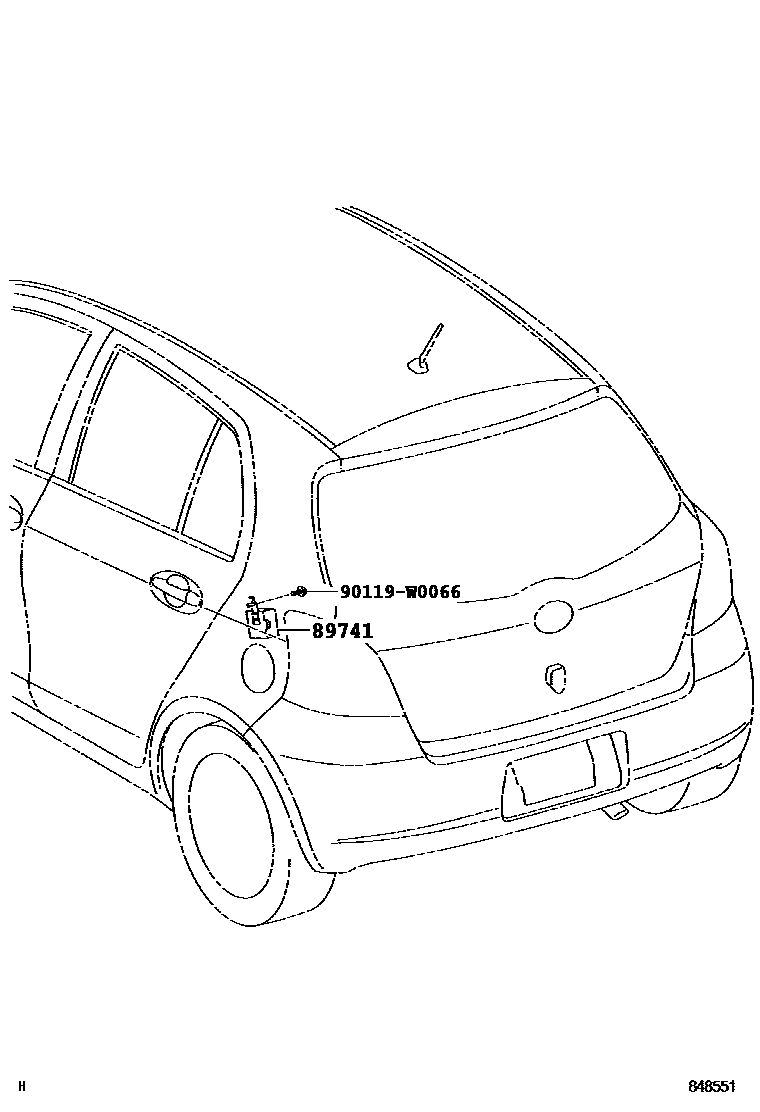

89741RECEIVER, DOOR CONTROL
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
main89741-0D030iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; SCP90..FRP..LHD..SOL200511-200805
MEXICO SPEC; MEXICO SPEC&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-WITH
main89741-0D031iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; SCP90..FRP..LHD..SOL200806-200811
MEXICO SPEC; MEXICO SPEC&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
90119W0066
main90119-W0066
2 parts on this diagram · 7 diagrams in section
