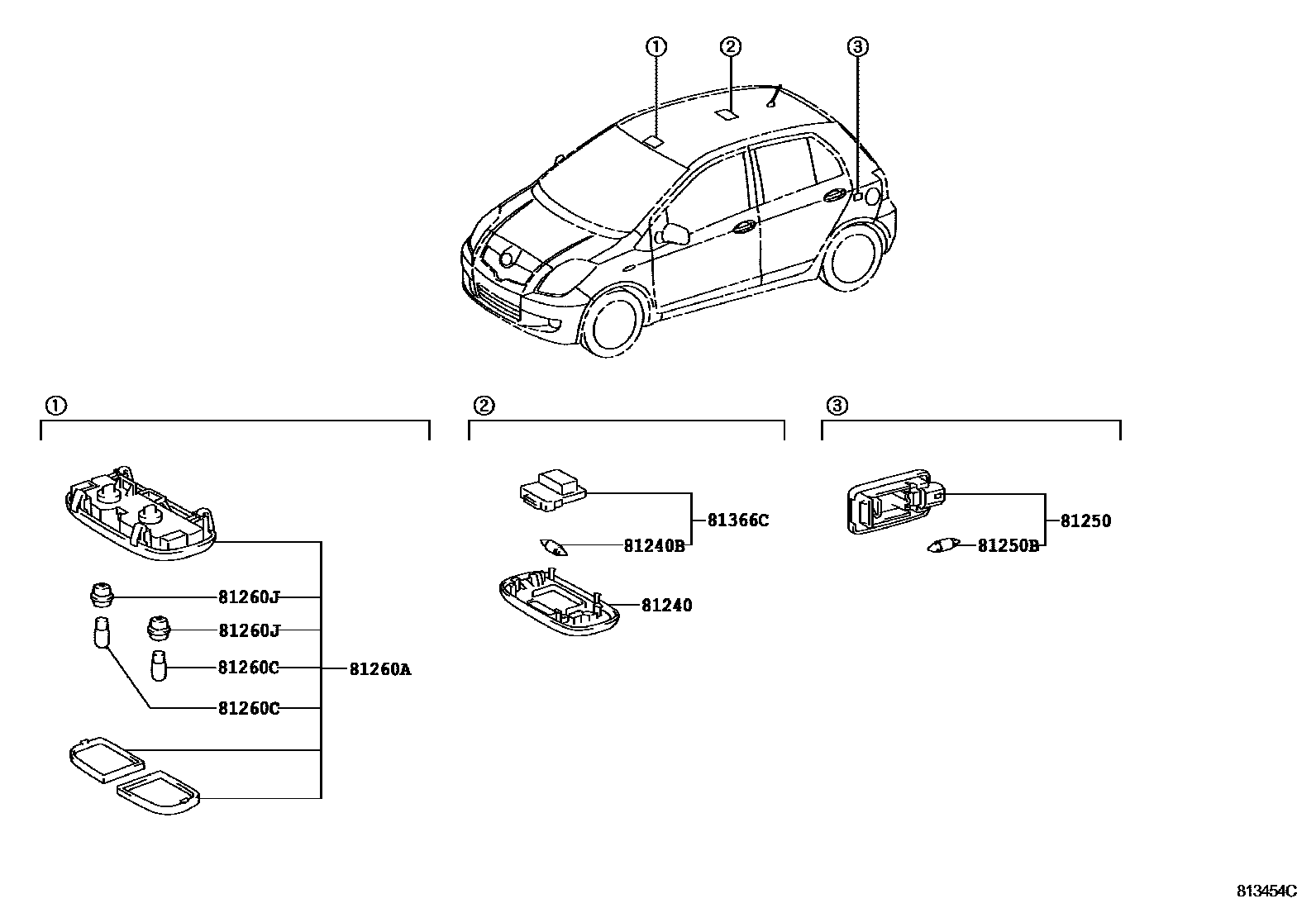

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81260ALAMP ASSY, MAP
GRAY,TRIM1#
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
AUDIO-AM/FM CD 6SPEAKER,GREGE,TRIM4#; AUDIO-RADIOLESS 6SPEAKER,GREGE,TRIM4#
81260CBULB(FOR MAP LAMP)
12V
81260JSOCKET, BULB(FOR MAP LAMP)
81366CBASE, ROOM LAMP SWITCH
8 parts on this diagram · 2 diagrams in section
