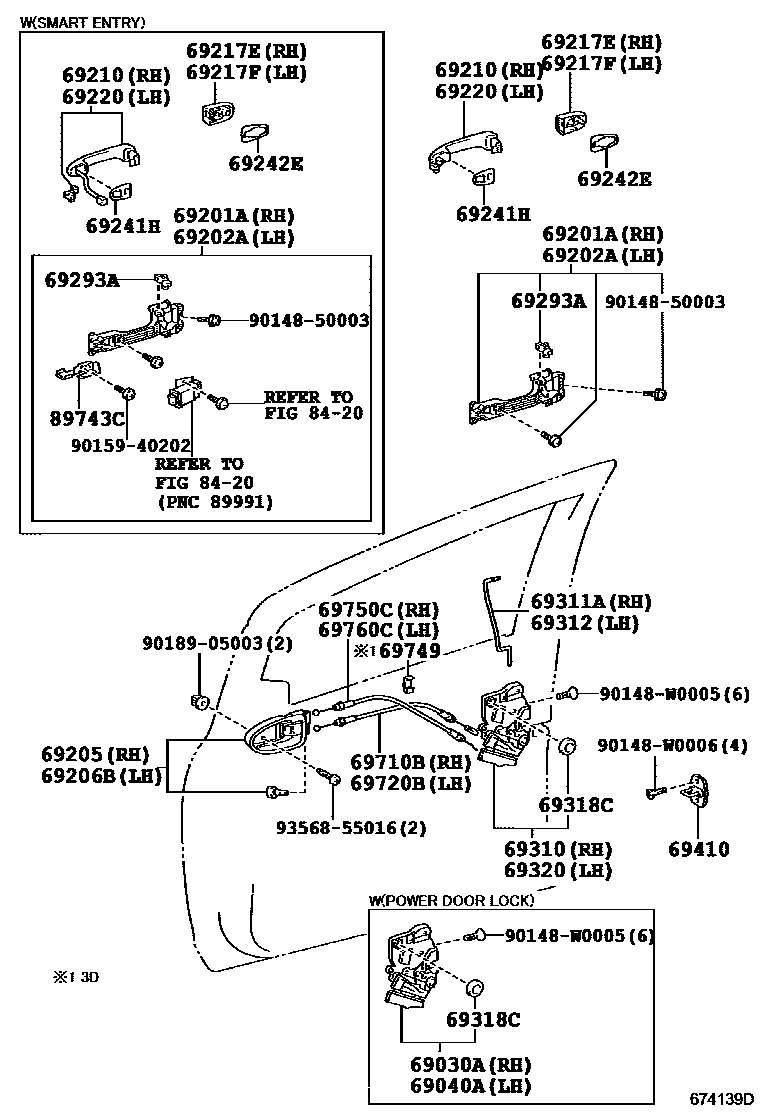

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-WITH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
WIRELESS DOOR LOCK-WITH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
DOOR INSIDE HANDLE=W/O PAINTED,DK.GRAY,TRIM18
DK.GRAY & SILVER,TRIM18
GRAY & SILVER,TRIM19
DK.GRAY,TRIM1#
GREGE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DOOR INSIDE HANDLE=W/O PAINTED,DK.GRAY,TRIM18
DK.GRAY,TRIM1#
DK.GRAY & SILVER,TRIM18
GRAY,TRIM19
DK.GRAY,TRIM1#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOORLOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOORLOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-0D070
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
main69320-0D070
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
90148W0005
main90148-W0005
90148W0006
main90148-W0006
9015940202
main90159-40202
9018905003
main90189-05003
9356855016
main93568-55016
32 parts on this diagram · 1 diagram in section
