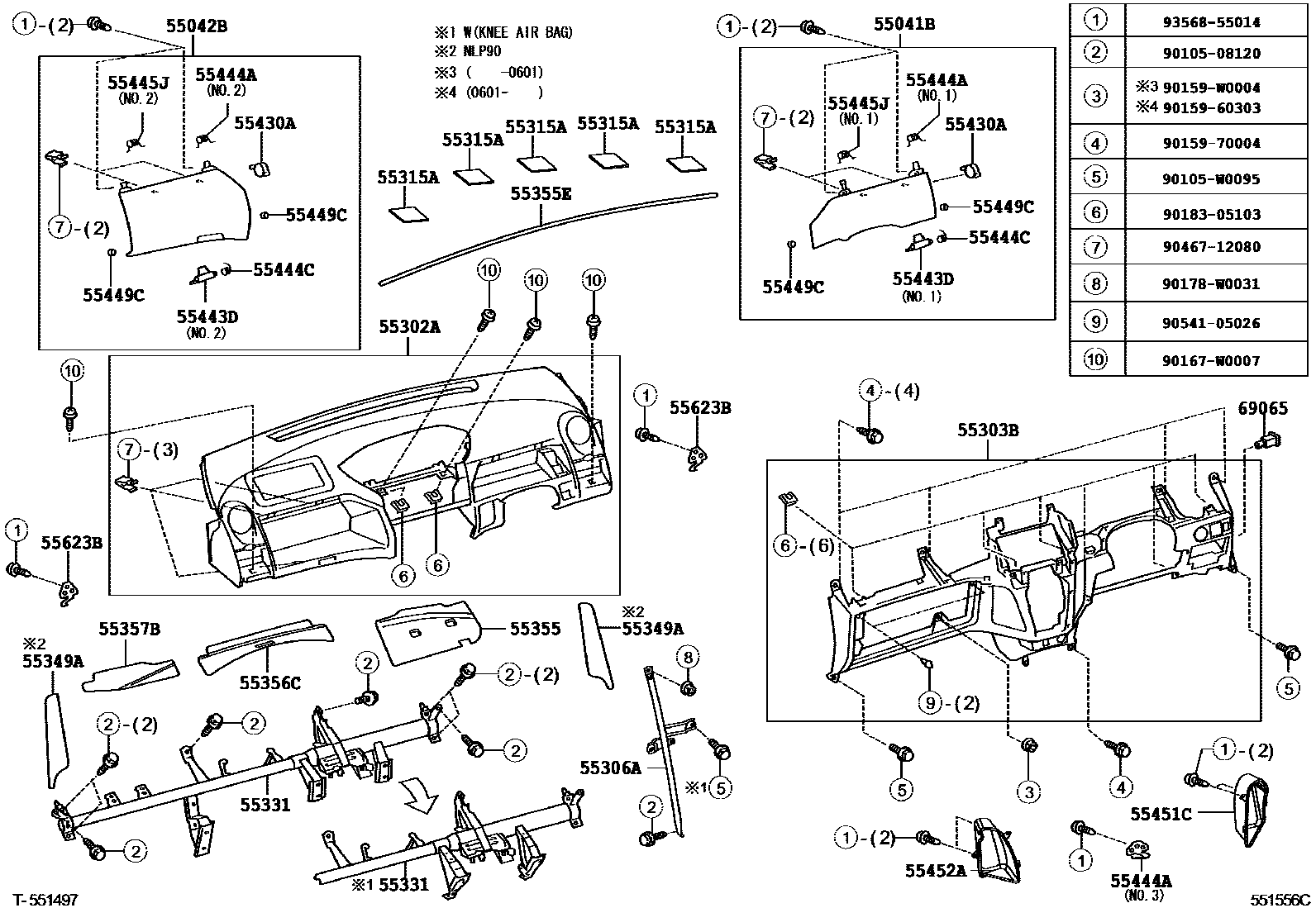

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

55041BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1

main55041-0D010-B0iKSP90,NLP90,SCP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main55041-0D010-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#

main55041-0D020-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main55041-0D020-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-0D010-B0iKSP90,NLP90,NSP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main55042-0D010-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#

main55042-0D020-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main55042-0D020-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D010-B0iKSP90,NLP90,NSP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main55302-0D010-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#

main55302-0D030-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main55302-0D030-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D060-B0iKSP90,NLP90,SCP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main55303-0D060-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#

main55303-0D070-B0iKSP90,NLP90,NSP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main55303-0D070-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D070iKSP90,NLP90,SCP90..FRP..LHD..SOL200511-200811

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55306-0D071iKSP90,NLP90,NSP90..FRP..LHD..SOL200811

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55306-0D080iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200811

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55306-0D081iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55306-0D090iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200811

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55306-0D091iKSP90,NLP90,NSP90..FRP..RHD..SOL200811

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55306-0D100iKSP90,NLP90,SCP90..FRP..RHD..SOL200511-200811

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55306-0D101iKSP90,NLP90,NSP90..FRP..RHD..SOL200811

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050iKSP90,NLP90,SCP90..FRP200809-200811

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D170iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200902

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D171iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200903-200904

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D172iKSP90,NLP90,NSP90..FRP..LHD..SOL200905

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D180iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200902

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55330-0D180iNLP90,NSP90..FRP..LHD..6FS200811-200903

main55330-0D181iKSP90,NLP90,NSP90..FRP..LHD..SOL200903-200904

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55330-0D182iKSP90,NLP90,NSP90..FRP..LHD..SOL200905

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55330-0D190iKSP90,NLP90,NSP90..FRP..RHD..TRSTD200511-200902

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D191iKSP90,NLP90,NSP90..FRP..RHD..SOL200903-200904

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D192iKSP90,NLP90,NSP90..FRP..RHD..SOL200905

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

main55330-0D220iNLP90,NSP90..FRP..RHD..6FS200811-200903

main55330-0D220iKSP90,NLP90,NSP90..FRP..RHD..SOL200511-200902

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55330-0D221iKSP90,NLP90,NSP90..FRP..RHD..TRSTD200903-200904

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

main55330-0D222iKSP90,NLP90,NSP90..FRP..RHD..SOL200905

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

55349ACUSHION, INSTRUMENT PANEL

main55349-0D080iNLP90..FRP200511-200811

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D040iKSP90,SCP90..FRP..SOL200511-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT

main55355-0D040iKSP90,NSP90..FRP200811

main55355-0D060iNLP90..FRP200511-200811

55355ECUSHION, INSTRUMENT PANEL

main55355-0D030iKSP90,NLP90,SCP90..FRP200511-200811

main55355-0D090iNLP90..FRP200811

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D020iKSP90,SCP90..FRP..SOL200511-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT

main55356-0D020iKSP90,NSP90..FRP200811

main55356-0D070iNLP90..FRP200511-200811

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D040iKSP90,SCP90..FRP..SOL200511-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT

main55357-0D040iKSP90,NSP90..FRP200811

main55357-0D090iNLP90..FRP200511-200811

55430ADAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL

main55430-52020iKSP90,NLP90,SCP90..FRP200511-200811

55443DKNOB, INSTRUMENT PANEL BOX DOOR

main55443-0D030-B0iKSP90,NLP90,SCP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#,NO.1

main55443-0D030-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#,NO.1

main55443-0D040-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#,NO.1

main55443-0D040-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#,NO.1

main55443-0D050-B0iKSP90,NLP90,NSP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#,NO.2

main55443-0D050-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#,NO.2

main55443-0D060-B0iKSP90,NLP90,NSP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#,NO.2

main55443-0D060-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#,NO.2

55444ASPRING, INSTRUMENT PANEL BOX

main55444-0D120iKSP90,NLP90,SCP90..FRP200511-200811

NO.1

main55444-0D130iKSP90,NLP90,NSP90..FRP200511-200811

NO.2

main55444-0D170iKSP90,NLP90,SCP90..FRP200511-200811

NO.3

55444CSPRING, INSTRUMENT PANEL BOX

main55478-0D010iKSP90,NLP90,SCP90..FRP..LHD200511-200811

55445JSPRING, INSTRUMENT PANEL BOX

main55445-0D070iKSP90,NLP90,SCP90..FRP200511-200811

NO.1

main55445-0D080iKSP90,NLP90,SCP90..FRP200511-200811

NO.2

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-28020iKSP90,NLP90,SCP90..FRP200511-200811

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0D030-B0iKSP90,NLP90,NSP90..FRP..LHD200511-200812

DK.GRAY,TRIM1#

main55451-0D030-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-200812

ASH BROWN,TRIM4#

main55451-0D031-B0iKSP90,NLP90,NSP90..FRP..LHD200812-201107

DK.GRAY,TRIM1#

main55451-0D031-E0iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F,6FS)..SOL200812-201001

ASH BROWN,TRIM4#

main55451-0D040-B0iKSP90,NLP90,NSP90..FRP..RHD200511-200812

DK.GRAY,TRIM1#

main55451-0D040-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-200812

ASH BROWN,TRIM4#

main55451-0D041-B0iKSP90,NLP90,NSP90..FRP..RHD200812-201107

DK.GRAY,TRIM1#

main55451-0D041-E0iKSP90,NLP90,NSP90..FRP..RHD..(5F,6F,6FS)..SOL200812-201001

ASH BROWN,TRIM4#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-0D030-B0iKSP90,NLP90,SCP90..FRP..LHD200511-200812

DK.GRAY,TRIM1#

main55452-0D030-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-200812

ASH BROWN,TRIM4#

main55452-0D031-B0iKSP90,NLP90,NSP90..FRP..LHD200812-201107

DK.GRAY,TRIM1#

main55452-0D031-E0iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F,6FS)..SOL200812-201001

ASH BROWN,TRIM4#

main55452-0D040-B0iKSP90,NLP90,SCP90..FRP..RHD200511-200812

DK.GRAY,TRIM1#

main55452-0D040-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-200812

ASH BROWN,TRIM4#

main55452-0D041-B0iKSP90,NLP90,NSP90..FRP..RHD200812-201107

DK.GRAY,TRIM1#

main55452-0D041-E0iKSP90,NLP90,NSP90..FRP..RHD..(5F,6F,6FS)..SOL200812-201001

ASH BROWN,TRIM4#

55623BSPRING, INSTRUMENT PANEL CUP HOLDER

main55623-0D010iKSP90,NLP90,NSP90..FRP200511-200811

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-0D010iKSP90,NLP90,SCP90..FRP200511-200811

9010508120

main90105-08120

90105W0095

main90105-W0095

9015960303

main90159-60303

9015970004

main90159-70004

90159W0004

main90159-W0004

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

9356855014

main93568-55014

33 parts on this diagram · 10 diagrams in section
