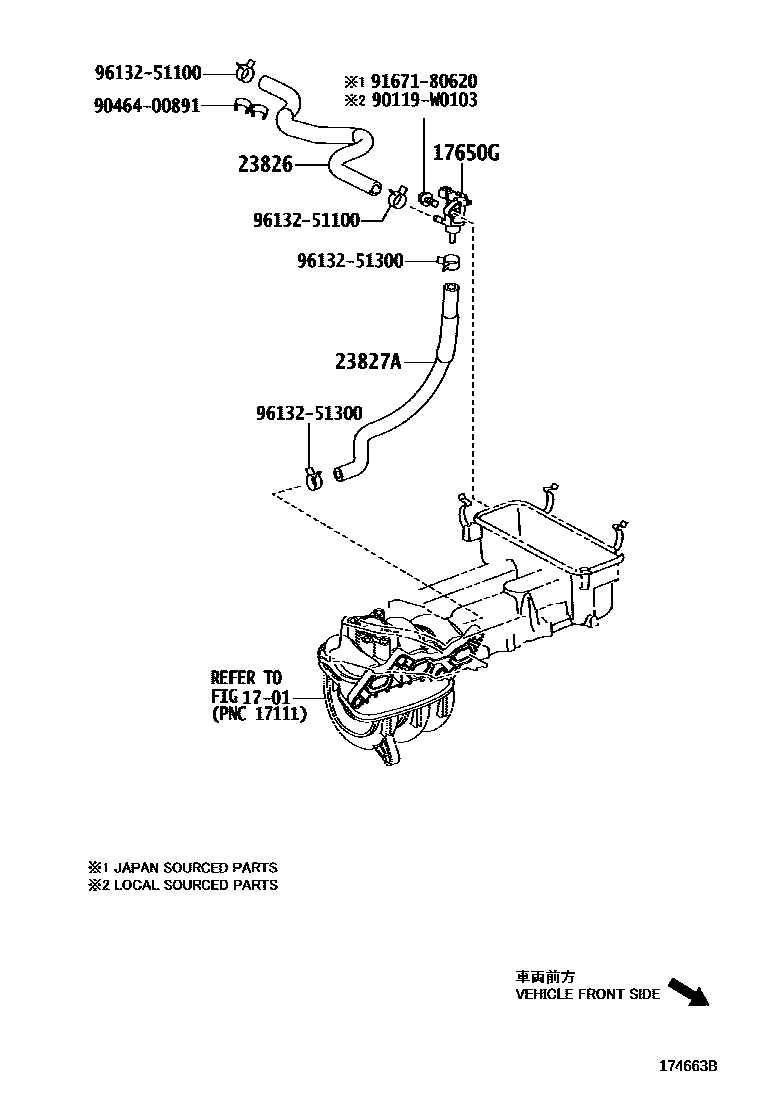

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1W(DPF) 0005 1W(DPF),EUROPE STEP4 0006 1W(DPF) 0007 1 0008 1

1701MANIFOLD

→ Go to FIG 17-01

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12275i1KRFE..KSP90..FRP..5FS200511-201006

(J)

main90910-WC001i1KRFE..KSP90..FRP..5F200511-201006

(L)

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0J010i2SZFE..SCP90..FRP200511-200811

main23826-0Q020i1KRFE..KSP90..FRP200511-201107

main23826-0Y010i1NRFE..NSP90..FRP200811-201107

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0J010i2SZFE..SCP90..FRP200511

main23827-0Y010i1NRFE..NSP90..FRP200811

main23827-40011i1KRFE..KSP90..FRP..5F200811-201006

main23827-40020i1KRFE..KSP90..FRP200511-200811

90119W0103

main90119-W0103

9046400891

main90464-00891

9167180620

main91671-80620

9613251100

main96132-51100

9613251300

main96132-51300

9 parts on this diagram · 8 diagrams in section
