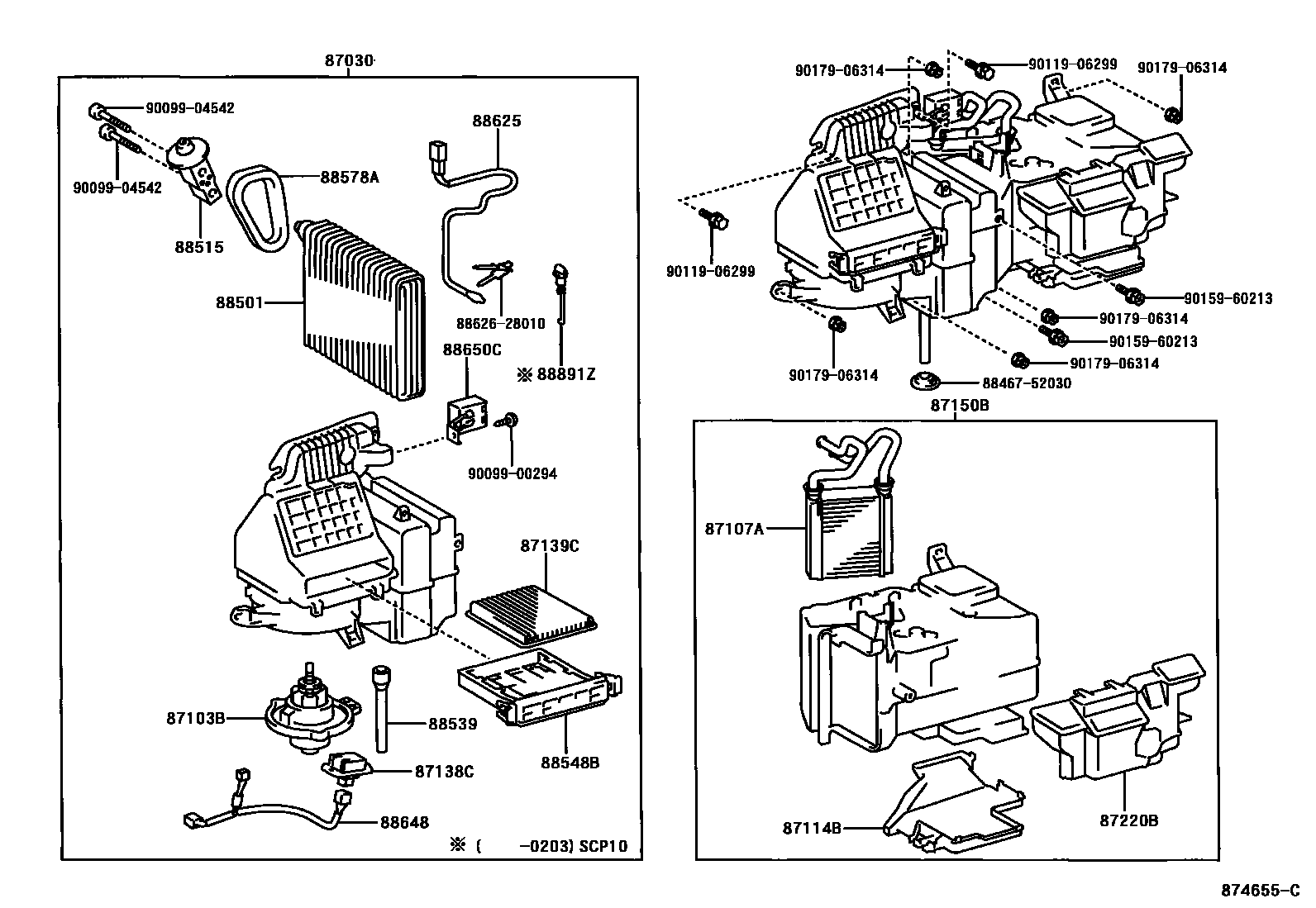

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1W(HEATER) 0003 1W(HEATER)---COLD SPEC 0004 1W(BOOST VENTILATOR) 0005 1BLOWER TYPE A + BOOST VENTILA0006 1BLOWER TYPE A + HEATER 0007 1BLOWER TYPE B + BOOST VENTILA0008 1BLOWER TYPE B + HEATER 0009 1BLOWER TYPE C + PTC HEATER 0010 1BLOWER TYPE D + PTC HEATER 0011 1BLOWER TYPE A + HEATER 0012 1BLOWER TYPE B + HEATER 0013 1O-RING

87030BLOWER ASSY, AIR CONDITIONER

main87030-0D010iSCP10..RHD200101-200203

W(AIR CONDITIONER)

main87030-0D020iSCP1#..RHD200101-200302

main87030-0D030iSCP10..LHD200101-200203

W(AIR CONDITIONER)

main87030-0D040iSCP1#..LHD200101-200302

main87030-0D050iSCP10..LHD200101-200103

COLD SPEC & W(AIR CONDITIONER)

main87030-0D060iSCP1#..LHD200101-200302

COLD SPEC

main87030-0D070iSCP10..LHD200101-200203

W(AIR CONDITIONER & BOOST VENTILATOR)

main87030-0D080iSCP12..RHD200205-200302

W(AIR CONDITIONER)

main87030-0D090iSCP12..LHD200205-200302

W(AIR CONDITIONER)

main87030-0D100iSCP12..LHD200205-200302

W(AIR CONDITIONER & BOOST VENTILATOR)

main87030-0D110iNLP10..FRP..RHD200302

W(AIR CONDITIONER),TYPE B

main87030-0D120iNLP10..FRP..LHD200302

W(AIR CONDITIONER),TYPE B

main87030-0D140iSCP1#..FRP..LHD..(SOL,TRSTD)200302

W(AIR CONDITIONER),TYPE B

main87030-0D150iNLP10,SCP1#..FRP..LHD200302

W/O(AIR CONDITIONER),TYPE A

main87030-0D160iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302

W/O(AIR CONDITIONER),TYPE C

main87030-0D170iSCP1#..FRP..RHD200302

W(AIR CONDITIONER),TYPE B

main87030-0D180iNLP10,SCP1#..FRP..RHD200302

W/O(AIR CONDITIONER),TYPE A

main87030-0D190iSCP1#..FRP..LHD..(SOL,TRSTD)200302

W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B

main87030-0D200iNLP10..FRP..LHD200302

W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B

main87030-0D210iNLP10..FRP..LHD200302

COLD SPEC & TYPE D

main87030-0D220iSCP12..FRP..LHD..5D..5F200309

MEXICO SPEC,TYPE B

main87030-0D230iSCP1#..FRP..LHD..(SOL,TRSTD)200402

W(AIR CONDITI0NER),TYPE C

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D010iSCP1#..RHD200101-200302

main87103-0D020iNLP10,SCP1#..FRP..LHD200302

main87103-0D030iSCP1#..LHD200101-200302

COLD SPEC

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0D010iNLP10,SCP1#..FRP..RHD200302

main87107-0D020iSCP1#..LHD200101-200302

main87107-52040iSCP10..LHD200101-200103

COLD SPEC & W(PTC HEATER)

87114BCOVER, HEATER

main87114-0D010iSCP1#..RHD200101-200302

main87114-0D020iNLP10,SCP1#..FRP..LHD200302

main87114-0D030iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302

COLD SPEC

87138CRESISTOR, BLOWER

main87138-52010iSCP1#200101-200302

87139CFILTER, CLEAN AIR

main87139-47010iSCP1#200101-200302

87150BRADIATOR ASSY, HEATER

main87150-0D010iSCP1#..RHD200101-200302

main87150-0D020iNLP10,SCP1#..FRP..LHD200302

main87150-0D030iSCP10..LHD200101-200103

COLD SPEC

main87150-0D050iSCP10..LHD200101-200103

COLD SPEC & W(PTC HEATER)

main87150-0D060iSCP10..FRP..LHD..5FS;SCP12..FRP..LHD..TRSTD; SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F200302

COLD SPEC; COLD SPEC & W(PTC HEATER)

main87150-0D080iNLP10..FRP..LHD200302

COLD SPEC & W(PTC HEATER)

main87150-0D090iNLP10..FRP..LHD200302

COLD SPEC & W(STOVE HEATER)

87220BDUCT ASSY, AIR

main87220-0D010iSCP1#..RHD200101-200302

main87220-0D020iNLP10,SCP1#..FRP..LHD200302

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D010iNLP10,SCP1#..FRP..RHD200302

main88501-0D020iSCP1#..LHD200101-200302

main88501-0D080iSCP12..FRP..LHD..5D..5F200309

MEXICO SPEC

88515VALVE, COOLER EXPANSION

main88515-52010iSCP1#200101-200302

main88515-52020iNLP10..FRP200302-200307

FRONT AIR CONDITIONER-DEALER KIT

main88515-52040iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D010iSCP1#200101-200302

main88539-52010iSCP12200205-200302

W(AIR CONDITIONER)

88548BCASE, AIR FILTER

main88548-0D010iSCP1#200101-200302

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-0D020iSCP12200205-200302

main88578-52010iSCP10..RHD200101-200302

main88578-52020iSCP10..LHD200101-200302

88625THERMISTOR, COOLER, NO.1

main88625-0D010iSCP1#200101-200302

main88625-0D070iSCP12..FRP..LHD..5D..5F200309

MEXICO SPEC

88648WIRING, COOLER, NO.1

main88648-0D010iSCP1#200101-200302

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-0D050iSCP1#..FRP200302

main88650-0D060iSCP1#..FRP..LHD..(SOL,TRSTD)200302

W(BOOST VENTILATOR)

main88650-0D100iNLP10..FRP200302

main88650-0D120iNLP10..FRP..LHD200302

W(BOOST VENTILATOR)

88891ZBRACKET, COOLER THERMISTOR

main88891-20240iSCP10200101-200203

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

9009900294

main90099-00294

9009904542

main90099-04542

9011906299

main90119-06299

9015960213

main90159-60213

9017906314

main90179-06314

24 parts on this diagram · 13 diagrams in section
