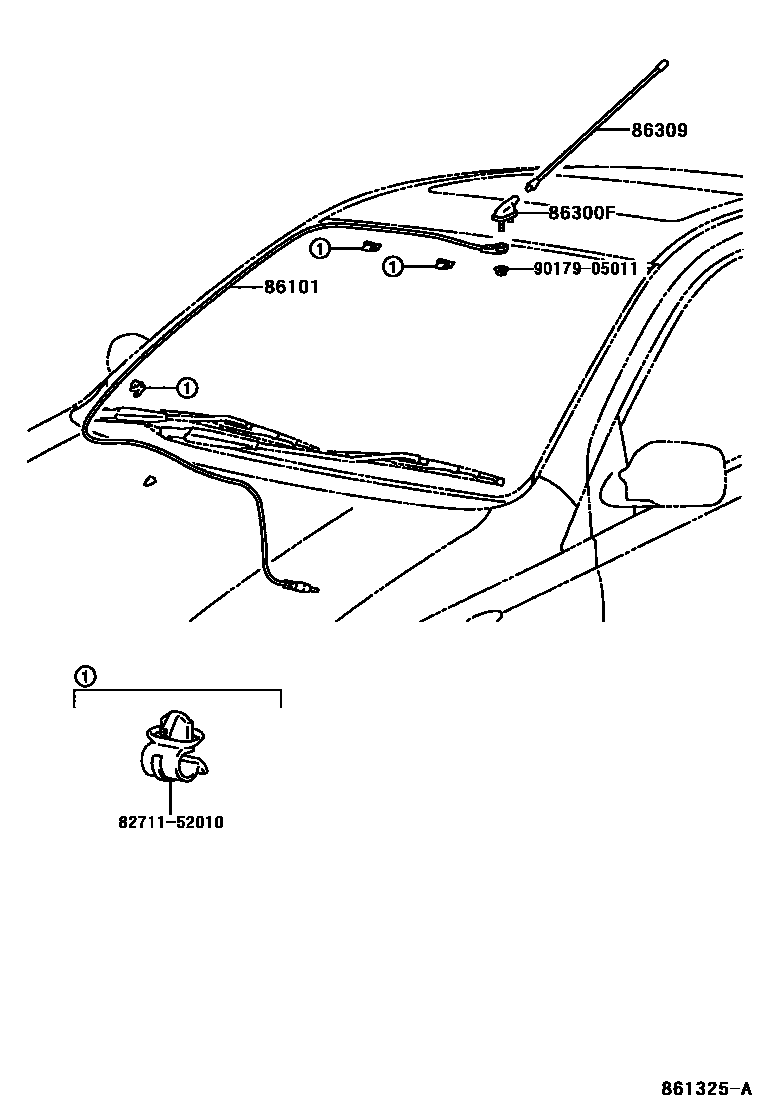

ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D010iSCP1#..LHD200101-200302

main86101-0D020iSCP1#..RHD200101-200302

main86101-0D120iNLP10,SCP1#..FRP..RHD200302

NO.2

main86101-0D130iNLP10,SCP1#..FRP..LHD200302

NO.2

main86101-0D140iNLP10,SCP1#..FRP200302

NO.1

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-0D010iSCP1#200101-200302

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-0D010iSCP1#200101-200302

8271152010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52010

9017905011

main90179-05011

5 parts on this diagram · 4 diagrams in section
