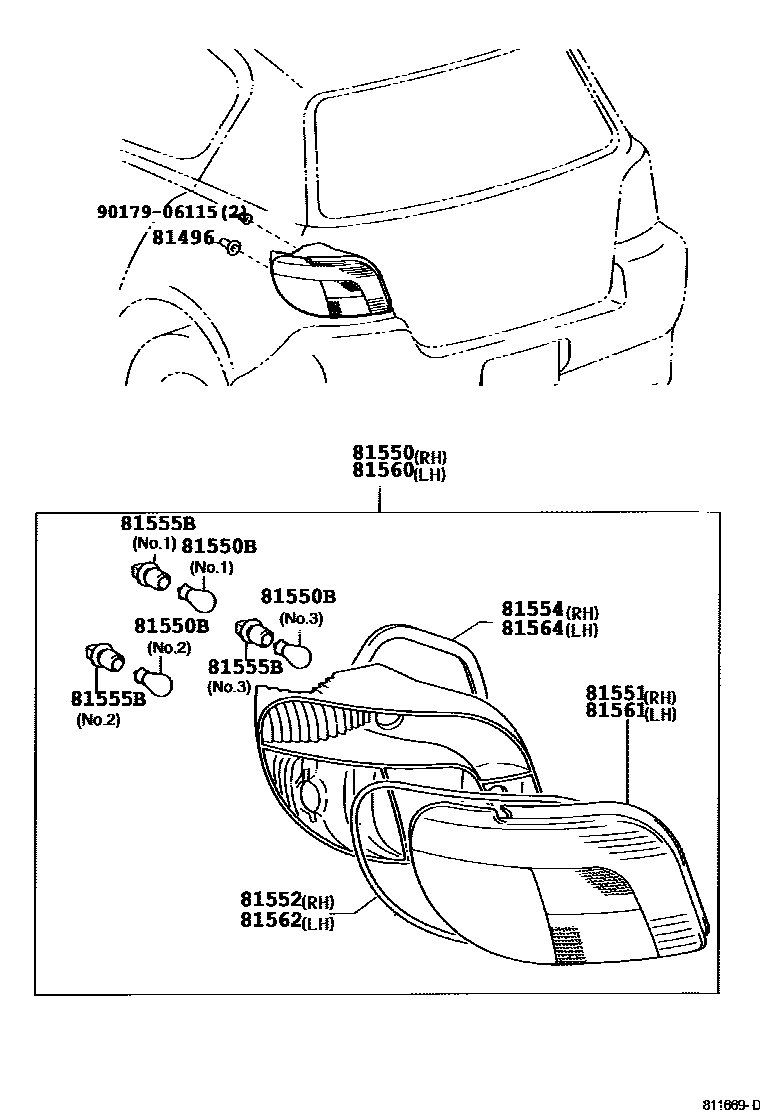

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-0D010×2iNLP10,SCP1#..FRP200302

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D010iSCP1#..LHD200101-200302

main81550-0D020iSCP1#..RHD200101-200302

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81088×2iSCP1#200101-200302

12V 21W,NO.1

main90080-81089×2iSCP1#200101-200302

12V 21/5W,NO.2

main90080-81090×4iNLP10,SCP1#..FRP200302-200406

12V 21W,NO.1,3

main90981-WC005×2iNLP10,SCP1#..FRP200407

12V 21/5W,NO.2

main90981-WC006×4iNLP10,SCP1#..FRP200407

12V 21W,NO.1,3

81551LENS, REAR COMBINATION LAMP, RH

main81551-0D010iSCP1#200101-200302

main81553-0D070iNLP10,SCP1#..FRP200302

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-0D010iSCP1#200101-200302

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-0D020iSCP1#200101-200302

main81554-0D070iNLP10,SCP1#..FRP200302-200511

81555BSOCKET PLUG, NO.1

main90069-81013×2iSCP1#200101-200302

NO.1

main90069-81014×2iNLP10,SCP1#..FRP200302

NO.2

main90069-81015×2iSCP1#200101-200302

NO.3

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D010iSCP1#..LHD200101-200302

main81560-0D020iSCP1#..RHD200101-200302

81561LENS, REAR COMBINATION LAMP, LH

main81561-0D010iSCP1#200101-200302

main81563-0D070iNLP10,SCP1#..FRP200302

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-0D010iSCP1#200101-200302

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-0D020iSCP1#200101-200302

main81564-0D070iNLP10,SCP1#..FRP200302-200511

9017906115

main90179-06115

12 parts on this diagram · 2 diagrams in section
