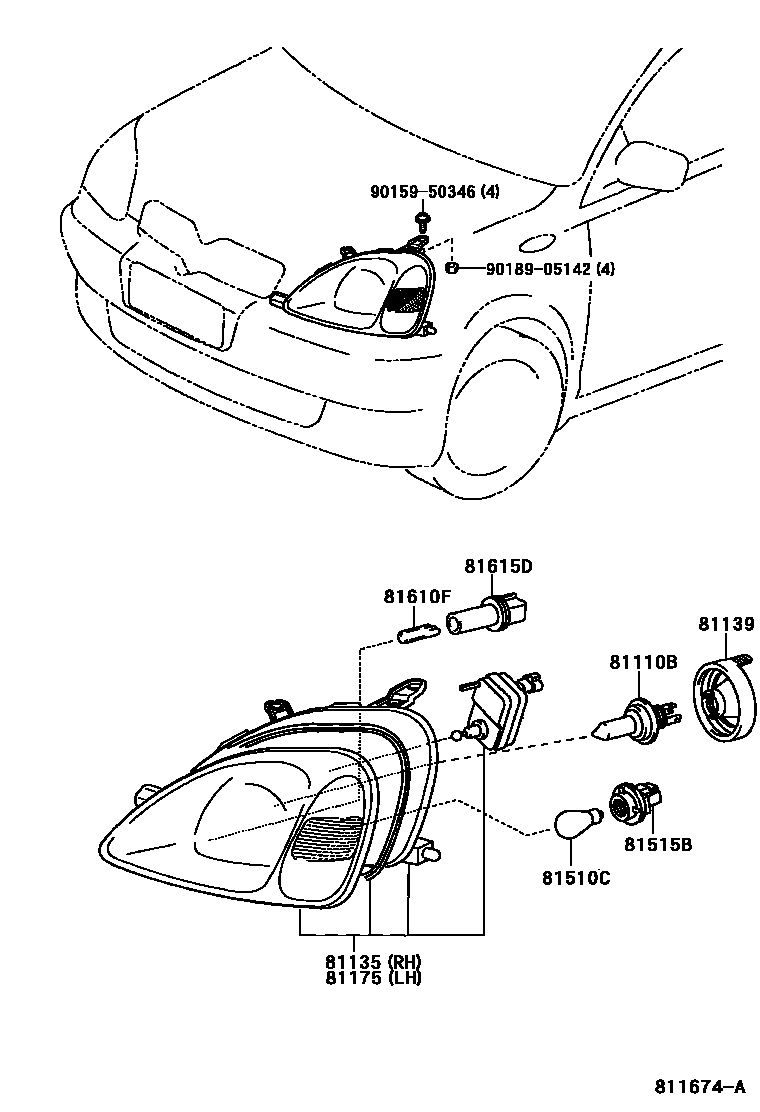

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81076×2iNLP10,SCP1#..FRP200302

12V 55/60W,TUNGSRAM G-E

main90080-81077×2iNLP10,SCP1#..FRP200302

12V 55/60W,OSRAM

main90080-81085×2iNLP10,SCP1#..FRP200302

12V 55/60W,PHILIPS

81135UNIT ASSY, HEADLAMP, RH

main81130-0D010iSCP10..LHD; SCP10..RHD200101-200105

RH TRAFFIC SPEC

main81130-0D011iSCP1#..RHD; SCP10..LHD200105-200302

RH TRAFFIC SPEC

main81130-0D020iSCP10..LHD; SCP10..RHD200101-200105

LH TRAFFIC SPEC

main81130-0D021iSCP12..RHD200205-200302

main81130-0D080iNLP10,SCP1#..FRP..LHD; NLP10,SCP1#..FRP..RHD200302

RH TRAFFIC SPEC

main81130-0D090iNLP10,SCP1#..FRP..LHD; NLP10,SCP1#..FRP..RHD200302

LH TRAFFIC SPEC

81139COVER, HEADLAMP SOCKET

main81139-0D010×2iSCP1#200101-200302

81175UNIT ASSY, HEADLAMP, LH

main81170-0D010iSCP10..LHD; SCP10..RHD200101-200105

RH TRAFFIC SPEC

main81170-0D011iSCP1#..RHD; SCP10..LHD200105-200302

RH TRAFFIC SPEC

main81170-0D020iSCP10..LHD; SCP10..RHD200101-200105

LH TRAFFIC SPEC

main81170-0D021iSCP1#..LHD; SCP10..RHD200105-200302

LH TRAFFIC SPEC

main81170-0D080iNLP10,SCP1#..FRP..LHD; NLP10,SCP1#..FRP..RHD200302

RH TRAFFIC SPEC

main81170-0D090iNLP10,SCP1#..FRP..LHD; NLP10,SCP1#..FRP..RHD200302

LH TRAFFIC SPEC

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81046×2iNLP10,SCP1#..FRP200302-200407

12V 21W

main90080-81091×2iSCP1#200101-200302

12V 21W,PHILIPS

main90080-81092×2iSCP1#200101-200302

12V 21W,OSRAM

main90080-81093×2iSCP1#200101-200302

12V 21W,TUNGSRAM G-E

main90981-WF003×2iNLP10,SCP1#..FRP200407

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81011×2iSCP1#200101-200302

main90069-81052×2iNLP10,SCP1#..FRP200302

81610FBULB(FOR CLEARANCE LAMP)

main90080-81080×2iSCP1#200101-200302

12V 5W

main90981-WB003×2iNLP10,SCP1#..FRP200407

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81010×2iSCP1#200101-200302

main90069-81051×2iNLP10,SCP1#..FRP200302

9015950346

main90159-50346

9018905142

main90189-05142

10 parts on this diagram · 2 diagrams in section
