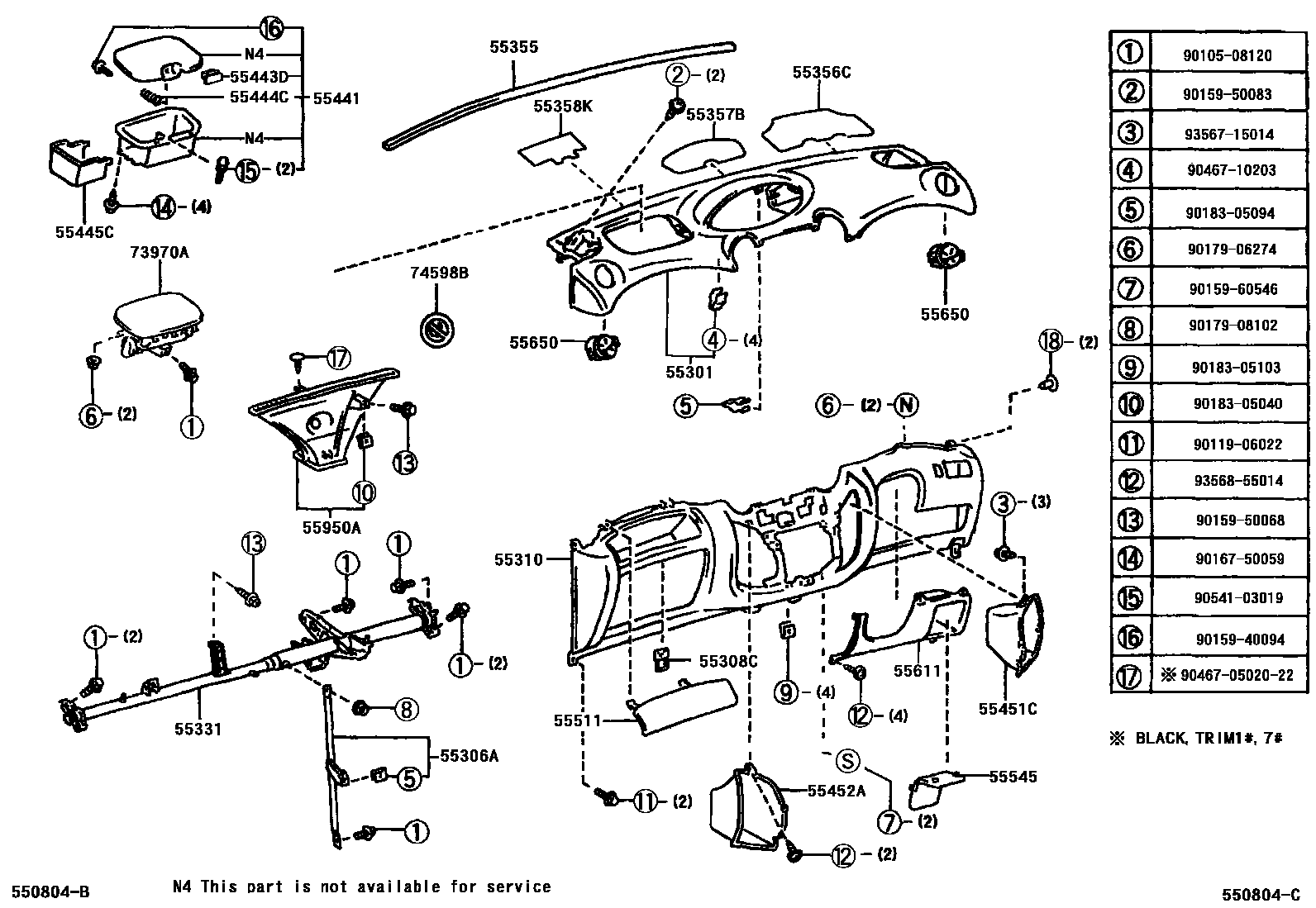

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55301-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55301-0D020-B1iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55301-0D020-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55301-0D060-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main55301-0D060-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main55301-0D060-B0iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,11,17

main55301-0D070-B0iSCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main55301-0D070-B0iSCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main55301-0D070-B0iSCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,11,17

main55301-0D070-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D010iNLP10,SCP1#..FRP..LHD200101-200302

main55306-0D020iNLP10,SCP1#..FRP..RHD200101-200302

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52010iSCP10200101-200205

main55308-52080iSCP1#200205-200302

55310PANEL ASSY, INSTRUMENT, LOWER

main55303-0D010-B1iSCP1#..LHD200101-200302

MD.GRAY,TRIM1#

main55303-0D010-B2iNLP10,SCP1#..FRP..LHD..TRSTD200302

DK.GRAY,TRIM10,17,18,19

main55303-0D010-B2iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10

main55303-0D010-B2iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,17

main55303-0D010-B3iNLP10,SCP1#..FRP..LHD200302

MD.GRAY,TRIM11

main55303-0D010-G0iSCP1#..LHD200101-200302

MIST GREEN,TRIM7#

main55303-0D020-B1iSCP1#..RHD200101-200302

MD.GRAY,TRIM1#

main55303-0D020-B2iSCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,17

main55303-0D020-B2iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10

main55303-0D020-B2iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,17,18,19

main55303-0D020-B2iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,17,18

main55303-0D020-B3iNLP10,SCP1#..FRP..RHD200302

MD.GRAY,TRIM11

main55303-0D020-G0iSCP1#..RHD200101-200302

MIST GREEN,TRIM7#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D010iSCP10..LHD200101-200110

W(SRS AIR BAG,DRIVER SIDE)

main55330-0D020iSCP10..LHD200101-200110

W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE)

main55330-0D020iSCP1#..LHD200110-200302

main55330-0D030iSCP10..RHD200101-200110

W(SRS AIR BAG,DRIVER SIDE)

main55330-0D040iSCP1#..RHD200110-200302

main55330-0D040iSCP10..RHD200101-200110

W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE)

main55330-0D150iNLP10,SCP1#..FRP..LHD200302

main55330-0D210iNLP10,SCP1#..FRP..RHD200302

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D030iSCP1#200203-200302

main55355-52012iSCP10200101-200203

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D010iSCP1#200101-200302

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D010iSCP1#200101-200302

main55357-0D020iNLP10,SCP1#..FRP200302

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-0D010iSCP1#200101-200302

55441BOX, INSTRUMENT PANEL

main55440-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55440-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55440-52040-B0iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55440-52040-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

55443DKNOB, INSTRUMENT PANEL BOX DOOR

main55443-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55443-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55443-52010-B0iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55443-52010-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

55444CSPRING, INSTRUMENT PANEL BOX

main55444-0D010iSCP1#..LHD200101-200302

main55444-52080iSCP1#..RHD200101-200302

55445CPLATE, INSTRUMENT PANEL BOX

main55445-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55445-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55445-52040-B0iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55445-52040-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0D010-B0iNLP10,SCP1#..FRP..LHD..TRSTD200302

DK.GRAY,TRIM10,11,17,18,19

main55451-0D010-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main55451-0D010-B0iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,11,17

main55451-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55451-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55451-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11

main55451-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main55451-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302-200401

DK.GRAY,TRIM10,11,17

main55451-0D020-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main55451-0D020-B1iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55451-0D020-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-0D010-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main55452-0D010-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main55452-0D010-B0iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,11,17

main55452-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main55452-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main55452-0D020-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main55452-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11

main55452-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main55452-0D020-B0iNLP10,SCP1#..FRP..RHD..SOL200302-200401

DK.GRAY,TRIM10,11,17

main55452-0D020-B1iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main55452-0D020-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

55511DOOR, GLOVE COMPARTMENT

main55501-0D010-B1iSCP1#..LHD200101-200302

MD.GRAY,TRIM1#

main55501-0D010-G0iSCP1#..LHD200101-200302

MIST GREEN,TRIM7#

main55501-0D020-B1iSCP1#..RHD200101-200302

MD.GRAY,TRIM1#

main55501-0D020-G0iSCP1#..RHD200101-200302

MIST GREEN,TRIM7#

main55501-0D030-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10

main55501-0D030-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,17,18,19

main55501-0D030-B0iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,17

main55501-0D030-B1iNLP10,SCP1#..FRP..LHD200302

MD.GRAY,TRIM11

main55501-0D040-B0iSCP1#..FRP..RHD..TRSTD..5F200302-200401

DK.GRAY,TRIM10,17

main55501-0D040-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10

main55501-0D040-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,17,18,19

main55501-0D040-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,17,18

main55501-0D040-B1iNLP10,SCP1#..FRP..RHD200302

MD.GRAY,TRIM11

55545COVER, FUSE BOX OPENING

main55545-0D010-B1iSCP1#200101-200302

MD.GRAY,TRIM1#

main55545-0D010-B2iNLP10,SCP1#..FRP..SOL200302-200401

DK.GRAY,TRIM10,17

main55545-0D010-B2iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,17,18,19

main55545-0D010-B2iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10

main55545-0D010-B2iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,17,18

main55545-0D010-B3iNLP10,SCP1#..FRP200302

MD.GRAY,TRIM11

main55545-0D010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-0D010-B1iSCP1#..LHD200101-200302

MD.GRAY,TRIM1#

main55611-0D010-B2iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,17,18,19

main55611-0D010-B2iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10

main55611-0D010-B2iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,17

main55611-0D010-B3iNLP10,SCP1#..FRP..LHD200302

MD.GRAY,TRIM11

main55611-0D010-G0iSCP1#..LHD200101-200302

MIST GREEN,TRIM7#

main55611-0D020-B1iSCP1#..RHD200101-200302

MD.GRAY,TRIM1#

main55611-0D020-B2iSCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,17

main55611-0D020-B2iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10

main55611-0D020-B2iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,17,18,19

main55611-0D020-B2iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,17,18

main55611-0D020-B3iNLP10,SCP1#..FRP..RHD200302

MD.GRAY,TRIM11

main55611-0D020-G0iSCP1#..RHD200101-200302

MIST GREEN,TRIM7#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-0D010-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main55650-0D010-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

main55650-0D050-B0iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main55650-0D050-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main55650-0D050-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,11,17

main55650-0D050-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

55950ANOZZLE ASSY, DEFROSTER

main55950-0D010iSCP1#..LHD200101-200302

main55950-0D020iSCP1#..RHD200101-200302

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0D010-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main73970-0D010-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main73970-0D020-B1iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#

main73970-0D020-H0iSCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#

main73970-0D050-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11

main73970-0D050-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main73970-0D050-B0iSCP10..FRP..TSGS200306

DK.GRAY,TRIM10,11,17

main73970-0D060-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main73970-0D060-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main73970-0D060-B0iNLP10,SCP1#..FRP..RHD..SOL200302-200401

DK.GRAY,TRIM10,11,17

main73970-0D060-B0iSCP1#..FRP..RHD..TRSTD..5F200302

DK.GRAY,TRIM10,11

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-0D020iSCP1#200111-200302

main74598-20010iSCP10200101-200111

9010508120

main90105-08120

9011906022

main90119-06022

9015940094

main90159-40094

9015950068

main90159-50068

9015950083

main90159-50083

9015960546

main90159-60546

9016750059

main90167-50059

9017906274

main90179-06274

9017908102

main90179-08102

9018305040

main90183-05040

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046710203

main90467-10203

9054103019

main90541-03019

9356715014

main93567-15014

9356855014

main93568-55014

39 parts on this diagram · 8 diagrams in section
