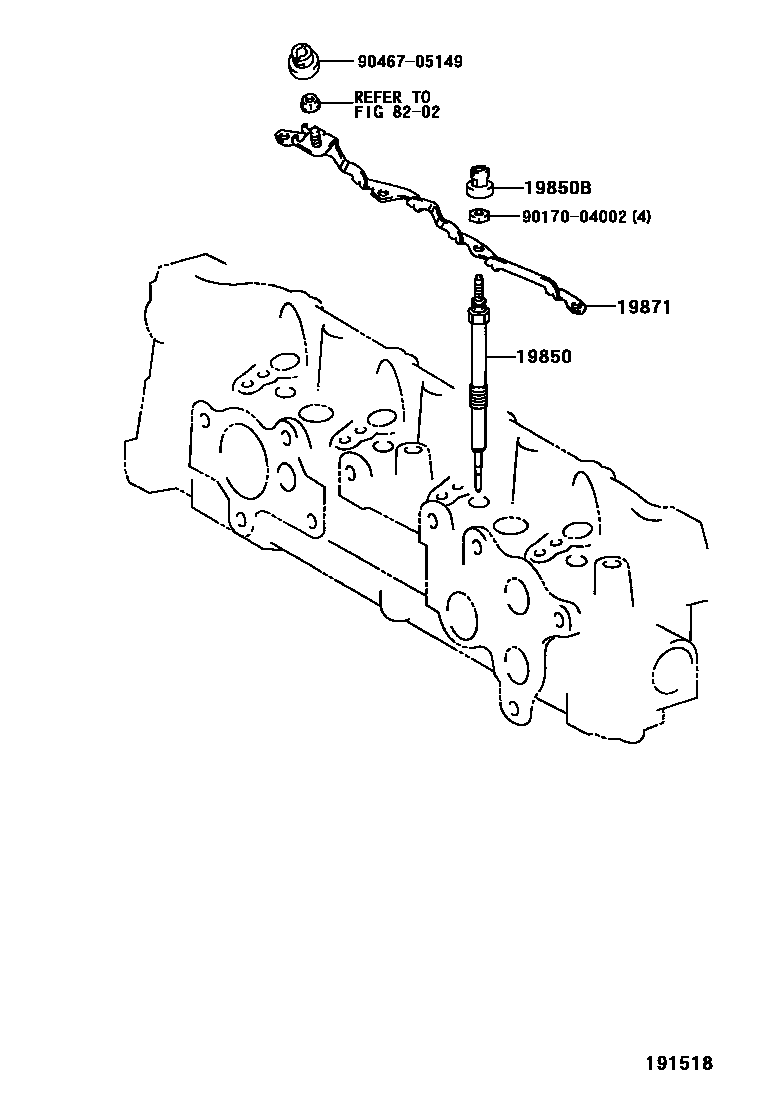

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-0W010×4i1NDTV..NLP10..FRP200302

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1NDTV..NLP10..FRP200302

19871CONNECTOR, GLOW PLUG NO.1

main19871-33010i1NDTV..NLP10..FRP200302

8202WIRING & CLAMP

→ Go to FIG 82-02

9017004002

main90170-04002

9046705149

main90467-05149

6 parts on this diagram · 2 diagrams in section
